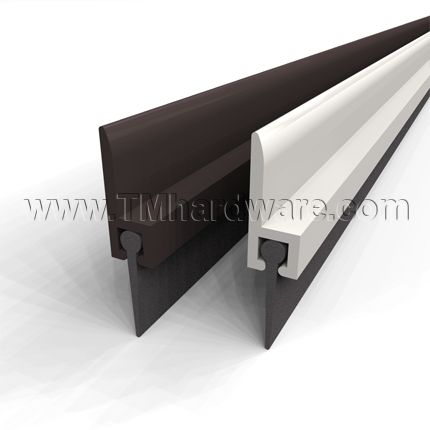

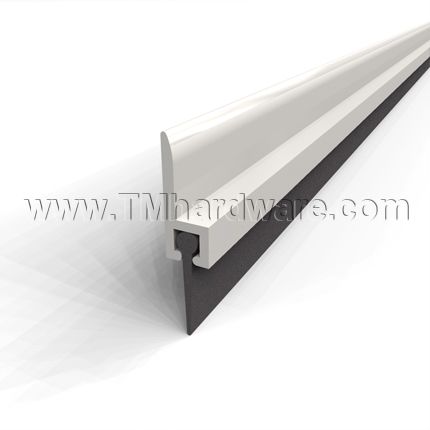

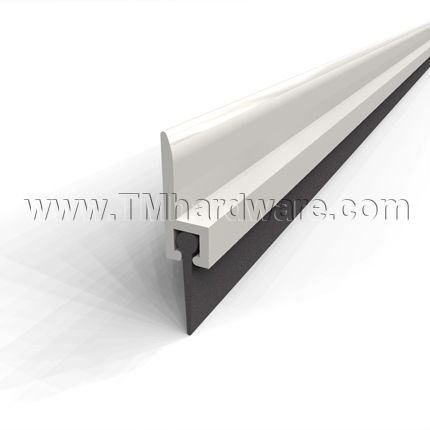

Zero #8194PSA Meeting Stile, .6" Aluminum with .375" Neoprene Seal for Glass Door
This Zero #8194PSA surface mounted meeting stile is designed for use on double active doors. Aluminum casing is fitted with a .375" neoprene rubber lip seal to create a seal against moisture, light, dust, fumes and insects. Convenient adhesive backing allows application onto glass and delicate doors. Available in two anodized finishes and length is custom cut to size.
SOLD BY THE FOOT.
Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.

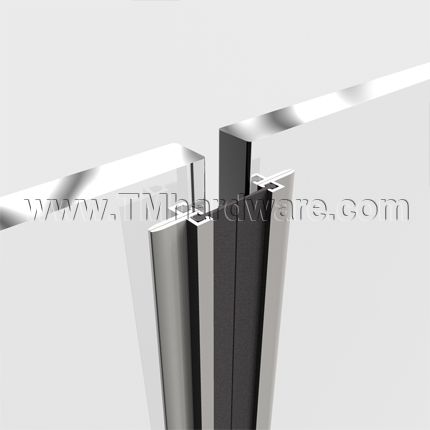

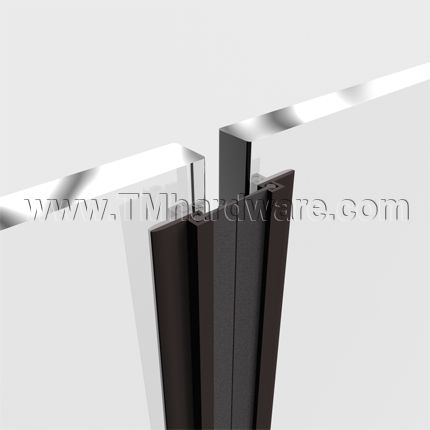

This meeting stile is designed for use on glass double active doors. It's fitted with a durable, solid neoprene lip. The lip remains flexible in extreme weather conditions to constantly provide a proper seal against moisture, light, dust, fumes and insects and to ensure continuous smooth operation of the door.

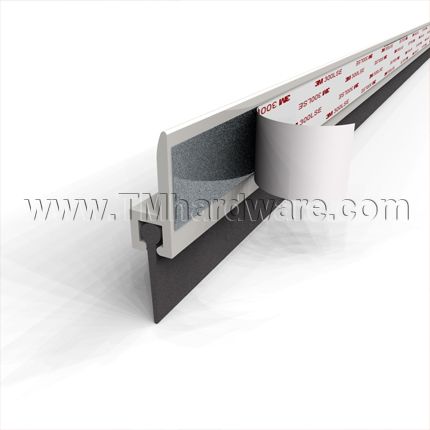

The meeting stile is built with a sleek aluminum casing that is easily applied the door's surface. Its convenient self-adhesive backing requires no screws, making it ideal for glass and delicate doors.
For screw application onto wooden or metal doors, see our .6” Aluminum with .375” Neoprene Seal Meeting Stile.
Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
To view another glass door meeting stile option, see our Zero International #8192PSA 1" Aluminum with .625" Brush Meeting Stile for Glass Doors.
-
QuickShipNo
-
ManufacturerZero International
-
MPN8194PSA
- About This Product
-
Retainer MaterialAluminum
-
Seal TypeNeoprene
-
Door TypeDouble Active Doors
-
- Dimensions
-
Seal Height.375"
-
Total Height.965"
-
Width.220"
-
- Installation
-
Installation ScrewsSelf-adhesive PSA backing provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationR3B735
-
Warranty1 Year Limited Warranty
-
