Pemko #356V Meeting Stile, Aluminum ‘T’ Casing with Vinyl Flap Seal

This surface mounted, ‘T’ shaped meeting stile for single active doors effectively seals the gap between a pair of doors from the infiltration of smoke, sound, light, drafts and insects. Available with a vinyl seal in aluminum mill finish and various other aluminum variations to match room décor. Custom cut to size.

PRICED PER RANGE

See tabs below for additional information

Finish
Size Range
Length

Quantity

Add to compare

This surface mounted meeting stile for single active double doors seals the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. This is accomplished through the compression of the flap seal against the face of the other door.

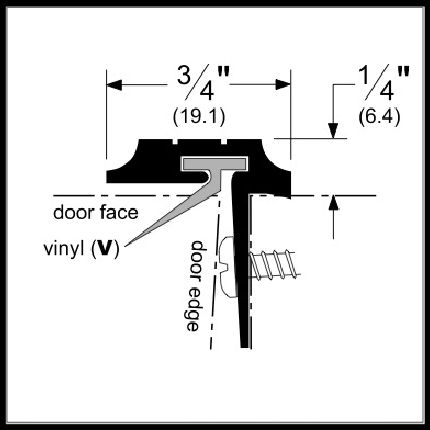

Installation: Meeting Stile is ‘T’ shaped, with the leg designed to be screwed into the door edge (between the two doors) with the flap seal extending over the other door (see product specs). This creates a continuous seal that will not impede on proper operation of the doors

Installation Instructions and screws provided. Screws are colored to blend unobtrusively into casing.

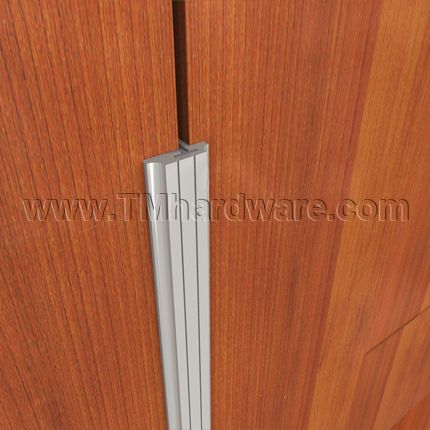

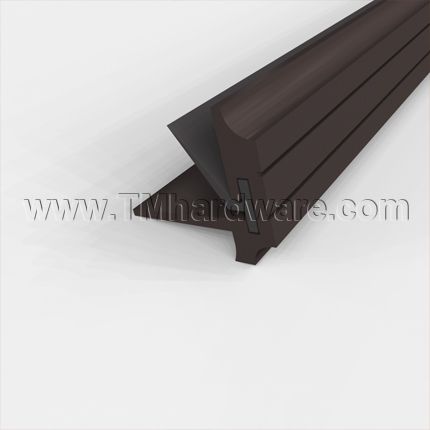

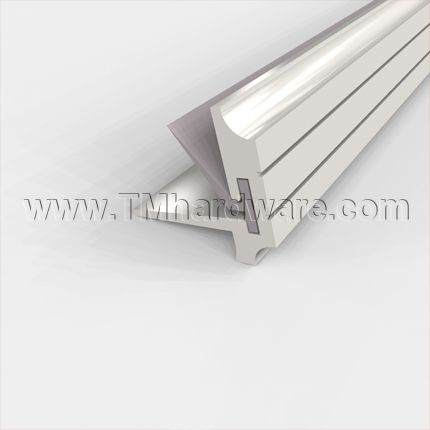

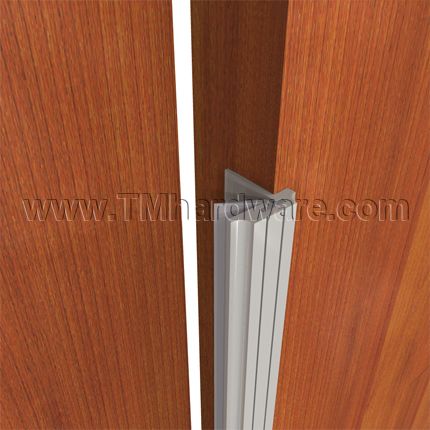

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

We carry other ‘T’ Shaped Meeting Stiles. See our Meeting Stile, Aluminum or Bronze 'T' Casing with Brush or Rubber Seal.

- SKU
  PK356AV80
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
356V
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Eco-V (Vinyl)
- Door Type
  Single active door in a double door set
- Mounting
  Surface Mounted
Dimensions
- Total Height
  3/4"
- Width
  1/4"
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), White Painted Aluminum
Compliance Details
- Compliance Details
  GreenGuard Gold Certified
- Warranty
  5 Year Limited Warranty

Click to Print

Click to Print Installation Guide.

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
