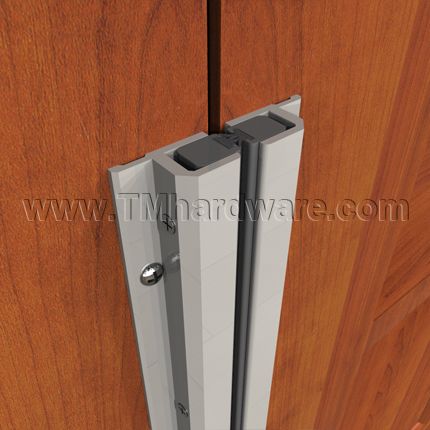

Zero #55-555 Meeting Stile, Aluminum with Adjustable Silicone Double-Lip Seal

This Zero #55-555 aluminum meeting stile effectively seals the gap between a pair of doors from infiltration of sound, light, drafts and insects. It consists of a solid silicone double-lip seal with a complementary solid insert. An adjusting screw enables easy extension of the seal, and it is designed to be surface mounted on a pair of double active doors. Available in choice of finishes and is custom cut to size.

SOLD BY THE FOOT

How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down box below.

See tabs below for additional information

Finish
Options
Length

Quantity

Add to compare

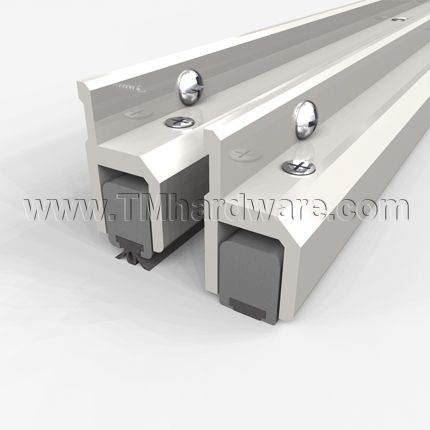

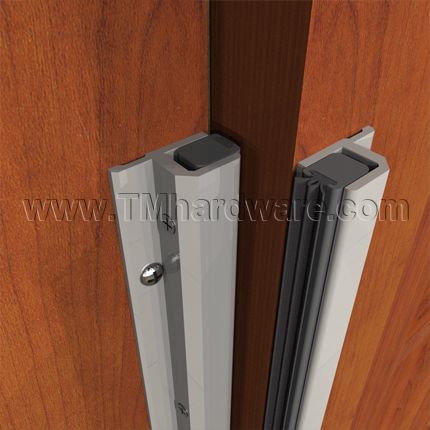

This meeting stile has a strong 1” wide aluminum casing housing a high quality, self-extinguishing, solid silicone seal with a double-lip design. This silicone seal projects out and compresses against a complementary solid insert and serves as an astragal between double active doors. An adjusting screw and stainless steel spring permits the seal to be easily adjusted. This feature effectively closes clearance gaps of varying sizes which result from natural warping or inevitable shifting of the doors. This greatly reduces sound from leaking in or out of the room, provides a weather seal, and minimizes the passage of light between the doors.

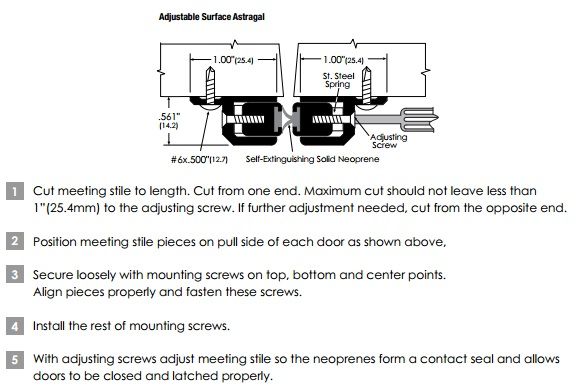

Installation screws provided, screws are colored to blend unobtrusively into casing. The screw is easily adjustable with a screwdriver.

How to order: This product can be ordered as a full set or as individual parts. Select which parts you would like to order from the 'Options' drop-down menu above.

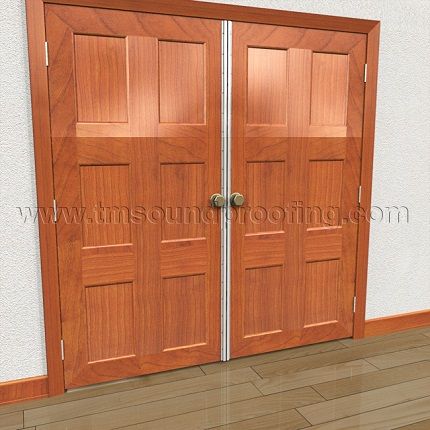

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship. Click here to view our full Warranty Policy.

Check out our other Meeting Stiles for Double Active Doors.

- SKU
  ZR55-555AA
QuickShip
No
Manufacturer
Zero International
MPN
55-555
Options
Full Set, Aluminum, Lip-Shaped Insert, Aluminum, Solid Insert
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Silicone
- Door Type
  Double Active Doors
- Mounting
  Surface Mounted

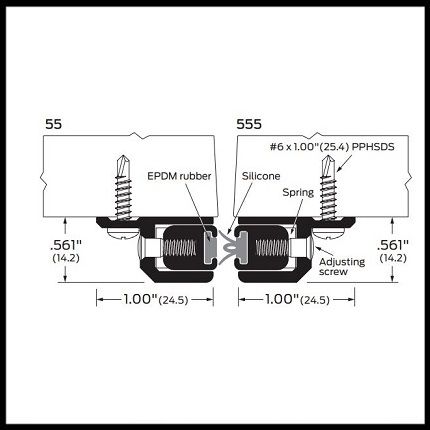

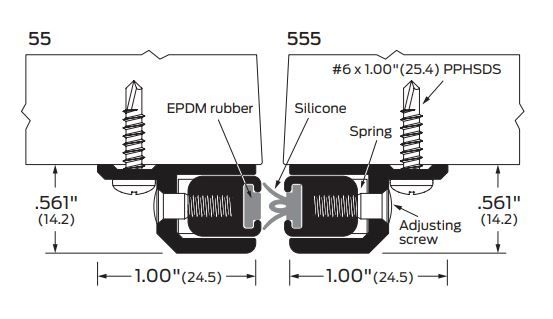

Dimensions
- Total Height
  1"
- Width
  .561"
- Size (Feet)
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided

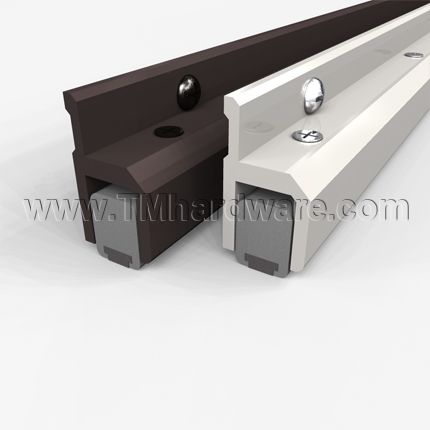

Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

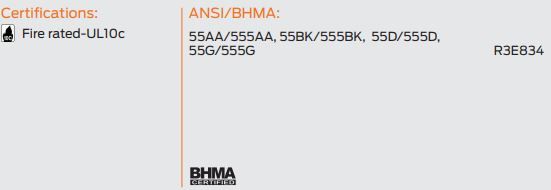

Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified
- ANSI Designation
  R3E834
- Warranty
  1 Year Limited Warranty
