Pemko #357xS88 Meeting Stile System, 2" Steel Strip with .5" Silicone Bulb and Thru-Bolts

This Overlapping Meeting Stile System is surface applied to the face of a double door to cover the gap between two doors. The metal strip is 2" x .125" and can be applied with an optional Silicone Teardrop Weatherstrip for better sealing properties. It is designed for Single Active Doors in a Double Door Set. Available in Steel Prime or Stainless Steel, with a choice of fasteners, and is custom cut to size.

Need it sooner? Stock sizes and finish are available to ship within 1-3 business days. See our Pemko #357xS88 Meeting Stile System, 2" Steel Strip with .5" Silicone Bulb and Thru-Bolts, Steel - QUICKSHIP

PRICED PER RANGE

See tabs below for additional information

Fasteners
Size Range
Length
Retainer Material
Bulb Seal Required

Quantity

Add to compare

This high quality, Overlapping Meeting Stile System is surface applied to the face of the door to seal the gap between a pair of double doors and prevent infiltration of dust, drafts, light, smoke, fire, and moisture.

Design: Overlapping Astragal is applied to the face of the active door and sits over the gap to rest on the inactive door. For greater sealing properties, it can optionally be applied with an Adhesive Silicone Teardrop Weatherstrip. The astragal will not impede on proper operation of the door.

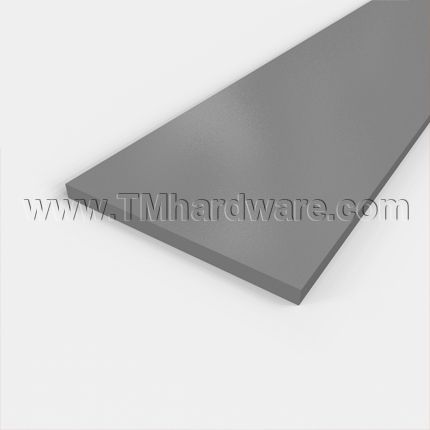

Dimensions: Strip has a width of 2" with a thickness of .125" to prevent warping and bending, even through extended use. The weatherstripping seal has a width of .5" and a height of .25". This astragal system is designed for high frequency usage and will continuously ensure superior performance.

Fasteners: Meeting Stile System can be purchased with a choice of Standard #10 x 1" Truss Head SMS Fasteners, 1⁄4"- 20 Machine Screws and Thru-Bolts Thru-Bolts or No Drilling options. Fees are included in the pricing above.

Compliance: Smoke, Fire, and Air Infiltration Rated. When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click to view our Offset Overlapping Weatherstrip.

- SKU
  PK357SPND86
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
357xS88, 357xS88-TB
Fasteners
Thru-Bolts, Standard SMS Screws, Not Required (No Drilling)
About This Product
- Retainer Material
  Stainless Steel, Steel
- Seal Type
  Silicone
- Door Type
  Single active door in a double door set
- Mounting
  Surface Mounted
Dimensions
- Total Height
  2"
- Width
  1/8"
Compliance Details
- Compliance Details
  Air Infiltration Rated, Smoke Rated, Fire Rated
- Warranty
  5 Year Limited Warranty

Click to Print Product Specs

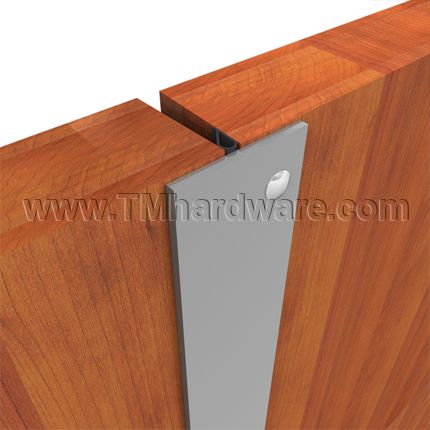

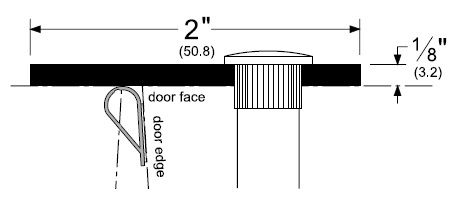

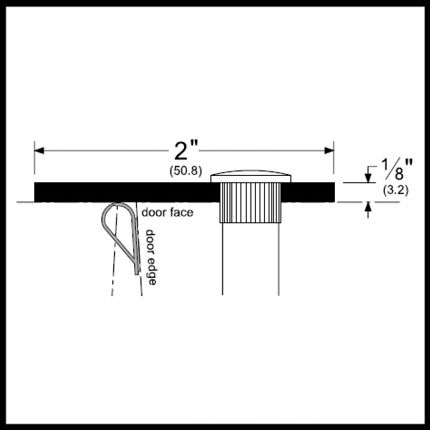

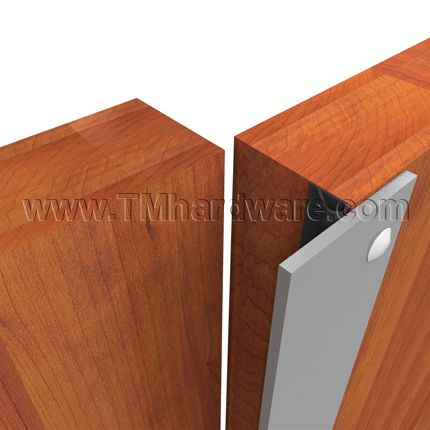

Full Meeting Stile System with Steel Strip, Silicone Bulb and Thru-Bolts:

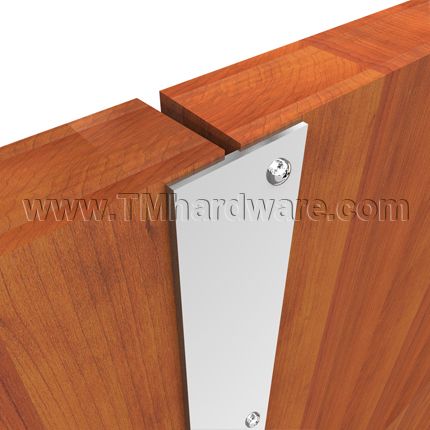

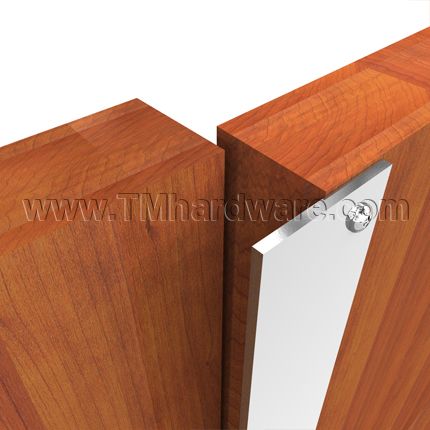

Meeting Stile with Standard Fasteners:

Optional Silicone Adhesive Weatherstrip

Click to View Ratings Explained

The Following Finish Complies with ANSI / BHMA Codes:

Stainless Steel (Polished): US32D / 630
