Pemko #SHS80 Sliding Door System, Above Carpet/Tile Bottom Guide, 180 Lbs.

Sliding Door System for doors weighing up to 180 lbs. Can be installed in an overhead or side wall mount. This series offers a side wall bottom mortise guide which allows carpet to be replaced without removing the door.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

Key Product Features:

Sliding Door System with Above Carpet/Tile Bottom Guide

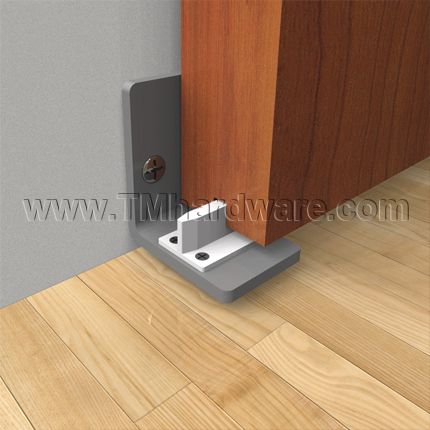

Side wall bottom mortise guide which allows carpet or tile to be replaced without removing the door.
Two mounting options
180 lb. door panel weight
All necessary parts included
Nickel plated zinc metal composition reduces corrosion and embrittlement

Included Parts: See product specs tab to the right and detailed images above for visual aid.

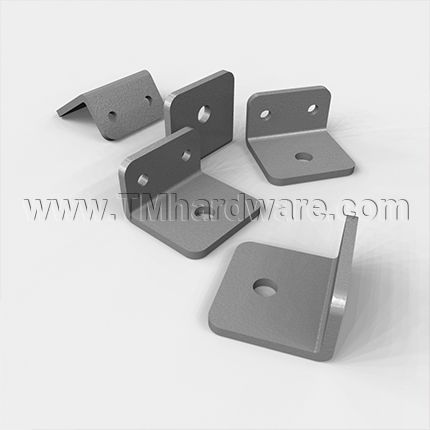

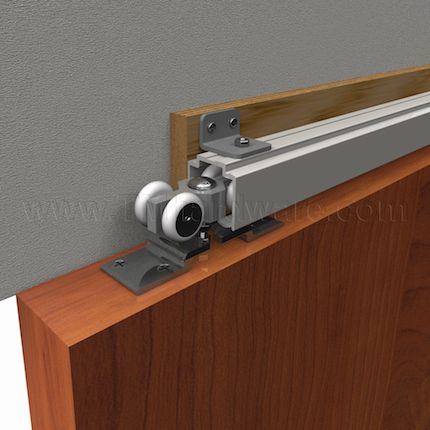

Side Wall Mounting Option: includes aluminum brackets for side wall mounting. The side wall bracket reduces the amount of wall space needed to mount the track. (P2815) Note: 1 side wall track bracket is required at each end and no more than 3 feet in between. Appropriate number of brackets come according to length ordered. Fasteners included.

Materials: Track is made of lightweight yet durable aluminum. Hangar body is made of nickel plated zinc alloy, with four nylon coated, zinc alloy ball bearing wheels.

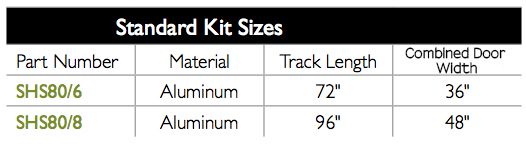

Track Lengths: Available in 6 Ft. and 8 Ft. track lengths.

Configurations:

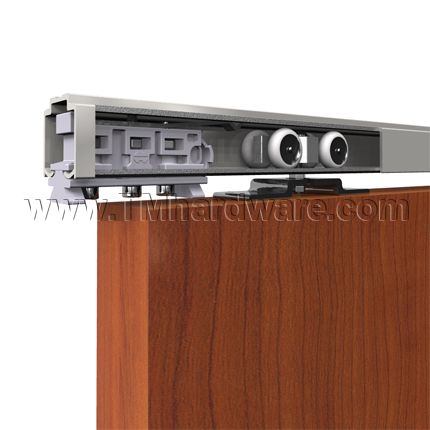

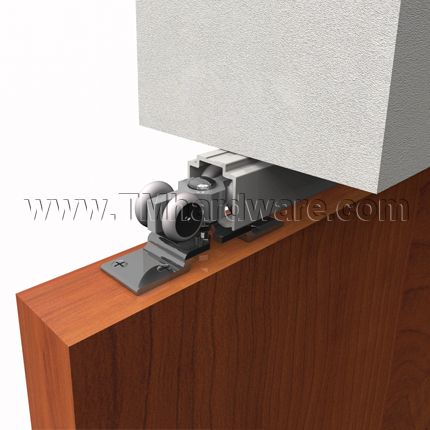

Overhead Mount

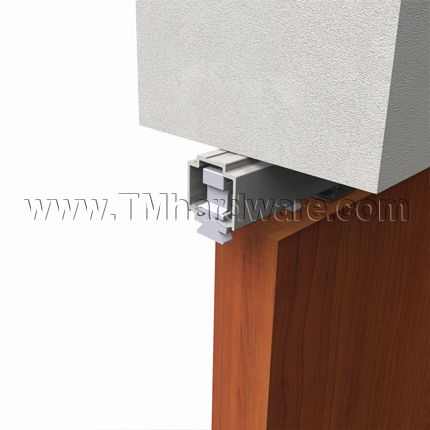

Side Wall Mount
Single Door Panel
Bi-parting Door Panels (additional hardware required for bi-parting installation. To order please contact us or call (845) 388 - 1300.)

Dimensions: See product specs and installation instructions in tabs to the right. Ideal for 1.75” thick doors.

Additional Customization Options: Including dual bottom guide, roller guide, guide channel and surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Overhead product specs and Side Wall Product Specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.

Click to view our Full Warranty Policy.

Please see our Sliding Door System with Full Length Side Wall Bracket .

- SKU
  PHSHS80/6
QuickShip
No
Manufacturer
PC Henderson
MPN
SHS80
About This Product
- Mounting Type
  Overhead Mount, Sidewall Mount
- Door Mount
  Surface Mount
- Track Type
  Box Track
- System Type
  Single Sliding

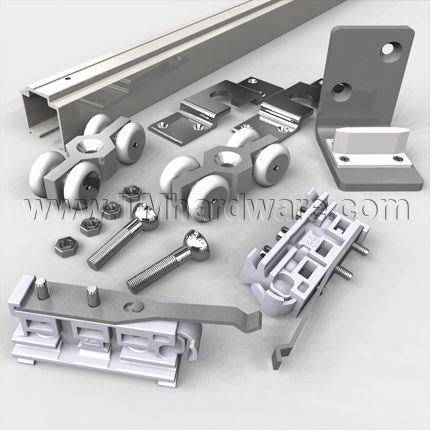

- Included Parts
  (1 ea.) Aluminum Track - P280A (1 ea.)
  Nickel plated Zinc Hangar Assembly with Zinc alloy ball bearing wheels - H222-45 (2 ea.)
  In-Track Rubber Bumper Stop- (2ea.)
  White Nylon Bottom Mortise Guide on Zinc Plated “L” Metal - 102WN (1 ea.)
  Side Wall Mounting Option will also include:
  Aluminum Bracket for side wall mounting (5 ea.)
Dimensions
- Door Panel Weight
  180 Lb Doors
- Track Length
  72" Length, 96" Length
Special Features
- Fascia Options
  No Fascia, 6' Clear Aluminum Fascia, 8' Clear Aluminum Fascia
Compliance Details
- Warranty
  5 Year Limited Warranty

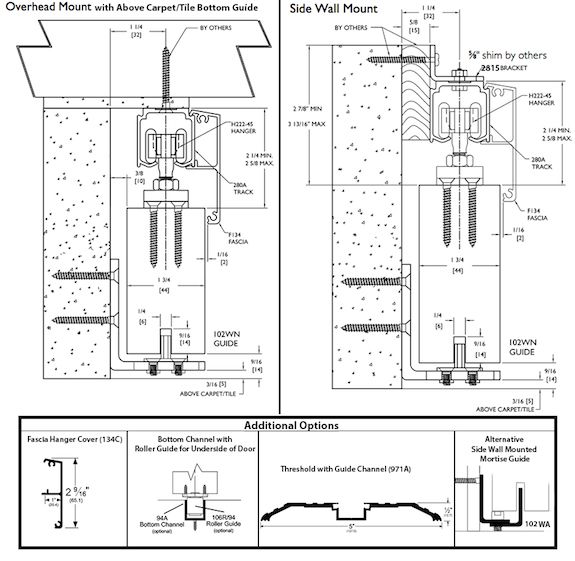

Click to Print Product Specs for Overhead Mount.

Click to Print Product Specs for Side Wall Mount.

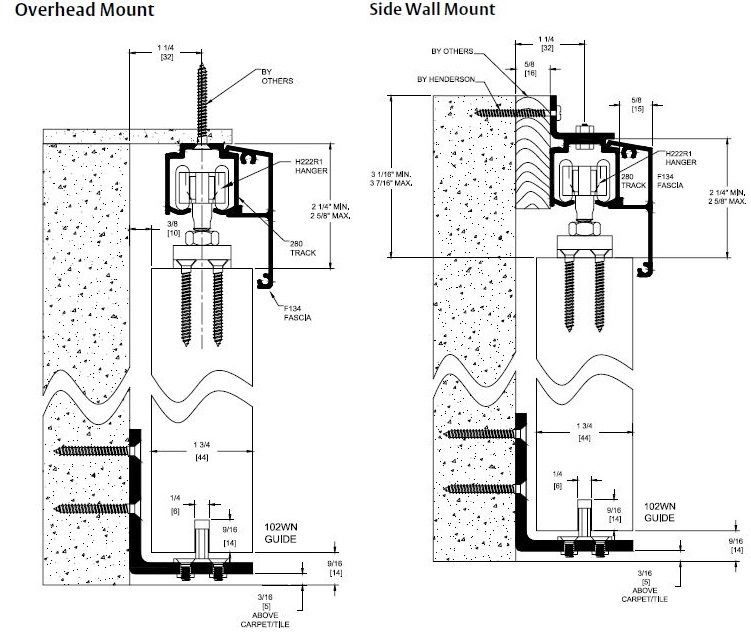

SHS80 Mounting Options

Product Options:

Click to Print Installation Guide

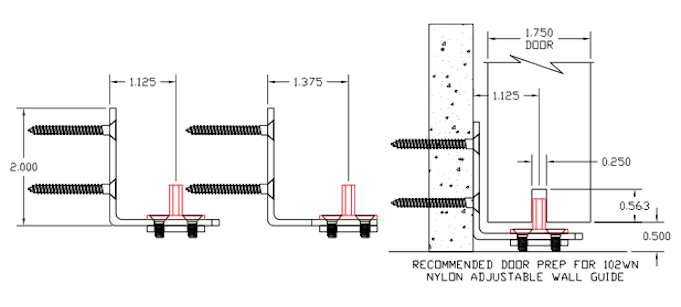

Side Wall Bottom Guide Installation (102WN)

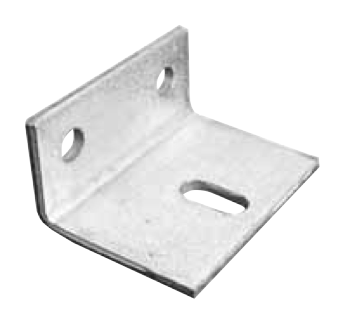

Side Wall Upper Track Bracket (2815)

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719

To order any of these options, please contact us or call us at (845) 388-1300.

1. Snap–On Fascia Cover (F134C): Aesthetic cover for concealing hangar, track, and wheels. When using fascia, offset hanger foot 1⁄8" closer to fascia face of the door. See detailed images.

2. Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).

3. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).

4. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.
