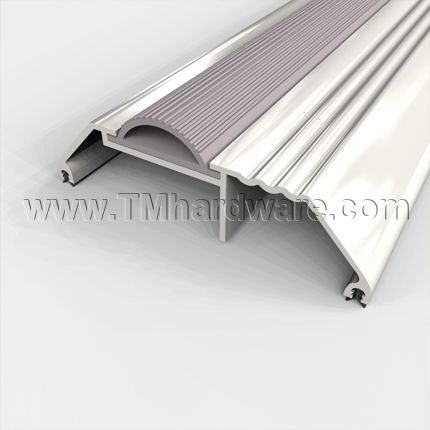

Pemko #207V Vinyl Top Thresholds with Aluminum Casing, 3. 5” W, 1.125” H
This product is discontinued. To purchase a similar item please view all of our Rubber Top Thresholds.
This Vinyl Top Threshold for residential doorways is a threshold and door bottom seal all in one. Its modern design lends a contemporary look to any standard door way. It permits a smooth transition between flooring surfaces.
Upon closing, the door compresses the vinyl to create a solid seal for beneath- the– door gaps. This inhibits the infiltration of drafts, fire, sound, light, moisture, and insects under the door and eliminates the need for door sweeps and door shoes. Product has a strong aluminum casing and is custom cut to size.
Key features of this product include:

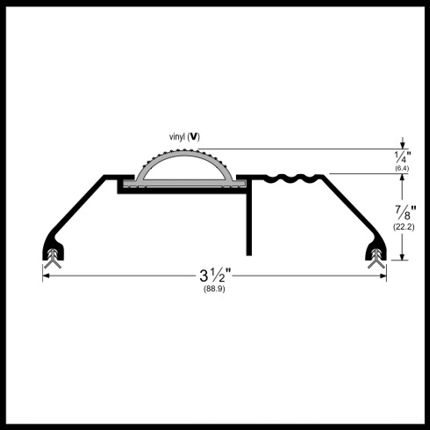

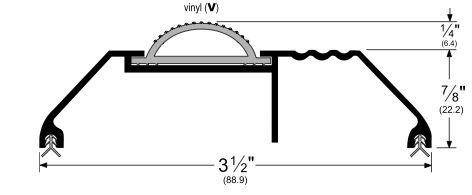

Dimensions: The aluminum casing measures 3. 5” wide and .875” tall. The compressible vinyl top seal extends an additional .25”, bringing the total height to 1.125" (see product specs). Maximum clearance between door and threshold is .25".
Energy Conservation: A proper door seal such as this vinyl top threshold prevents the passage of outside drafts beneath the door, which significantly reduces energy waste and lowers the cost of cooling and heating.

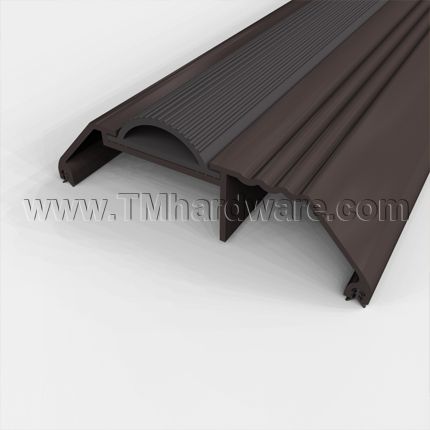

Aluminum Finish: Available in aluminum mill finish and dark bronze anodized aluminum.
Seal: The top seal is made of Flexible Vinyl, better known as PVC. Flexible PVC is a thermoplastic polymer material that is widely used in the construction industry largely because it is inexpensive and durable. The material has good chemical resistance to adhesives and most mild cleaning solutions, but has limited ultraviolet and weather resistance.
- Vinyl Top Thresholds improve weather seal of residential doorways
- 3.5” wide and 1.125” Height
- Available in alumnum mill finish and two anodized finishes
- Durable PVC top seal
- Length is custom cut to size

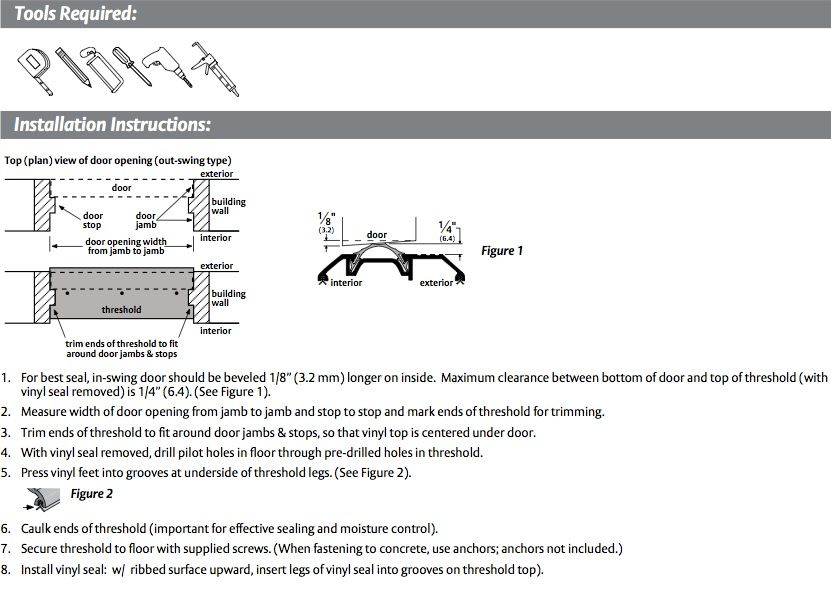

Installation guide and screws provided. Screws are colored to blend unobtrusively with casing.
Insert Replacements: The seal is manufactured from high quality material and will last through many usages, however, if a replacement is needed, see our Vinyl Bulb Insert Replacement for Pemko Doorway Threshold #207.
When installing into concrete, an Expansion Anchor is recommended.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
To see a vinyl top threshold that is fire rated, please see our Vinyl Top Threshold with Aluminum Casing, 3.75” W, 1.125” H
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN207_V
- Dimensions
-
Overall Height1.125" Height
-
Overall Width3.5" Width
-
Threshold LengthCustom Cut to Size
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Top Threshold
-
Seal TypeVinyl Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
Warranty5 Year Limited Warranty
-
