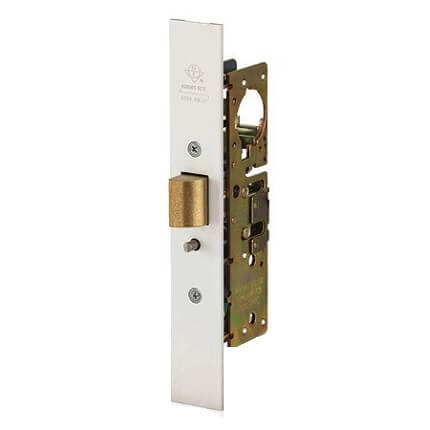

Adams Rite Deadlatch 4920AN, Heavy Duty, ANSI Size, For Wood or Hollow Metal Swinging Doors

Adams Rite Deadlatch 4920AN, Heavy Duty, ANSI Size, For Wood or Hollow Metal Swinging Doors
Adams Rite

This model is an ANSI size, heavy duty deadlatch for wood or hollow metal swinging doors. The lock provides flexibility of traffic control and easy installation, and allows for two-way traffic for applications which require free entrance at certain times and exit-only at other times. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in many options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR4923AN-313
    • Market price:$97.00
      • save 35%
    • Starting price: Price: $63.05 per item


    This ANSI size, heavy duty deadlatch is for wood and hollow metal swinging doors.

    Please note: Turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    This deadlatch comes in a choice of two backsets:

    • 1-1/2" (38.1 mm) backset

    Length of case (A) = 2-9/64" (54.4 mm)

    • 2-3/4" (69.9 mm) backset

    Length of case (A) = 3-25/64" (86.1 mm)

    Latch Bolt: Top bolt that is easily reversible without special tools.

    Auxiliary Bolt: Bottom bolt that deadlocks the latchbolt to prevent "loiding" or case-knife entry.

    Strike: 4506 Strike is a stainless steel strike with a satin finish (630) and is furnished to ANSI preparation specifications for flat jambs. The deadlatch is also available without a strike.

    Certification: This deadlatch is prepared for hardware according to American National Standards Institute (ANSI) specifications.

    Installation: For details on how to install this deadlock, see our Installation Instructions.

    Operation: Turn the key or operate the handle/paddle to retract the spring-loaded latchbolt. To holdback the bolt and allow the door to be free swinging, fully retract the bolt and secure by the reverse turn of the key.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Compatibility:

    • Interchangeable without stile modification with any MS1850SN Deadlock of same backset and faceplate shape.
    • Retrofits to existing 4520 Deadlatch and discontinued 4720 ANSI Deadlatch preparations.

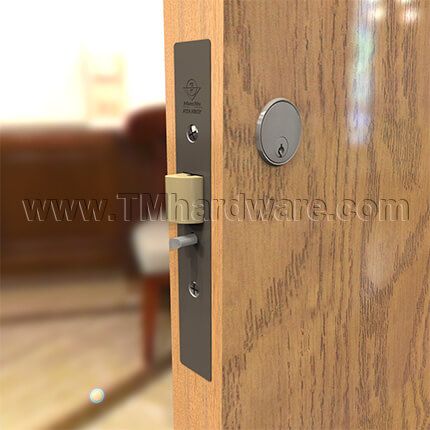

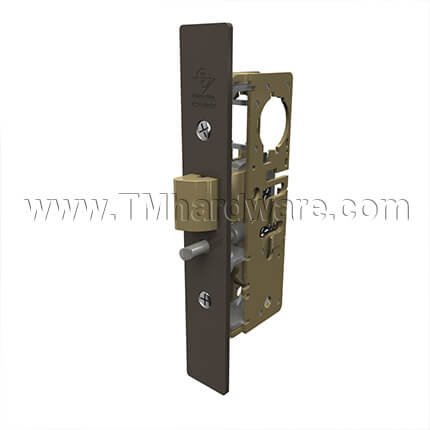

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock 4900, Heavy Duty, For Aluminum Swinging Doors.

      • SKU
        AR4923AN-313
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      4920AN; 4923AN
    • Product Details
      • Included Parts
        Deadlatch, Faceplate, Strike Plate, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Flat Faceplate, No Faceplate, No Strike Plate
      • Bolt Type
        Latch Bolt, Auxiliary Bolt
      • Bolt Material
        Latch Bolt: Solid brass
        Auxiliary Bolt: Stainless steel
      • Strike Material
        Stainless Steel
      • ANSI / BHMA Grade
        Grade 1
      • Strike
        4506 Strike, No Strike
      • Compatibility
        MS1850SN Deadlock, 4520 Deadlatch, 4720 Deadlatch

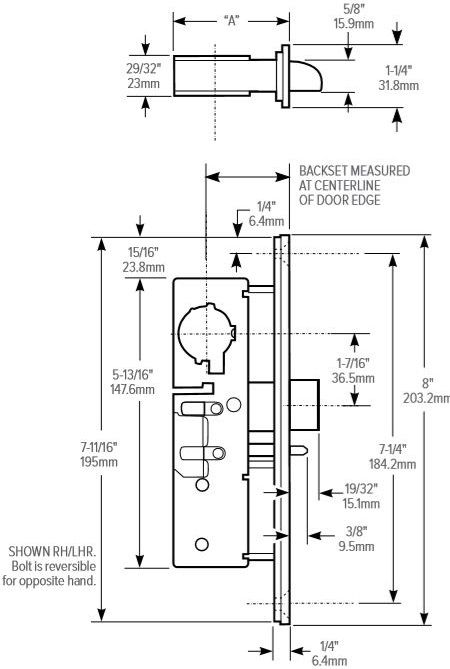

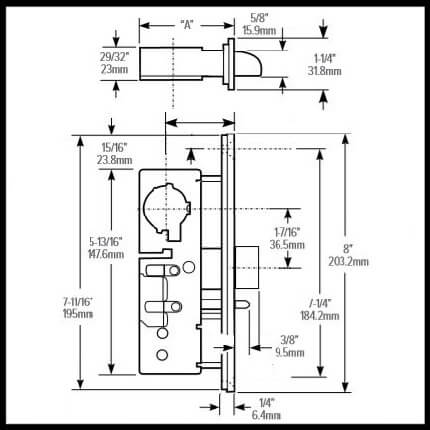

    • Dimensions
      • Case Dimensions
        29/32" W X 5-13/16" H
        Length varies with cylinder backset
      • Faceplate Dimensions
        1-1/4" W x 8" H
      • Bolt Dimensions
        Latch Bolt: 5/8" x 1"
      • Bolt Throw
        Latch Bolt: 5/8" Throw
        Auxiliary Bolt: 3/8" Throw
      • Cylinder Backset
        1-1/2" Backset, 2-3/4" Backset
    • Installation
      • Door Type
        Swinging Door
      • Door Material
        Wood, Hollow Metal
      • Handing
        LH or RHR, RH or LHR
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Black Anodized (335), Clear Anodized Aluminum (US28)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
