Adams Rite Electric Strike 7110 / 7111, For Adams Rite Deadlatches and Cylindrical Locks, For Aluminum, Hollow Metal and Wood Jambs

Adams Rite 7110 Electric Strike
Adams Rite

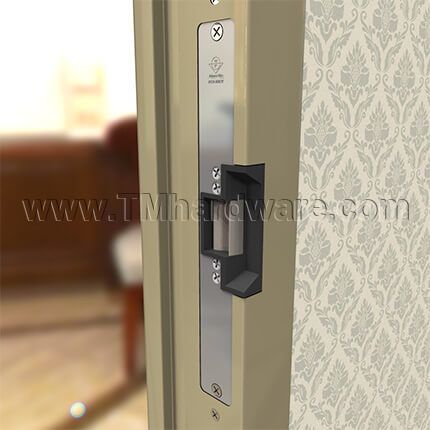

This model is an electric strike for Adams Rite Deadlatches and cylindrical locksets with 1/2" - 5/8" latchbolt projection. The strike is designed for use on narrow stile aluminum, hollow metal and wood door jambs. Available in several options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR7110
    • Market price:$271.00
      • save 35%
    • Starting price: Price: $176.15 per item


    Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This electric strike is for Adams Rite Deadlatches and cylindrical locksets with 1/2" - 5/8" latchbolt projection, and is designed for use in narrow stile aluminum, hollow metal and wood applications.

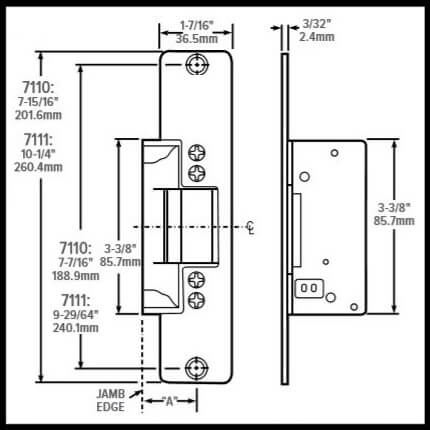

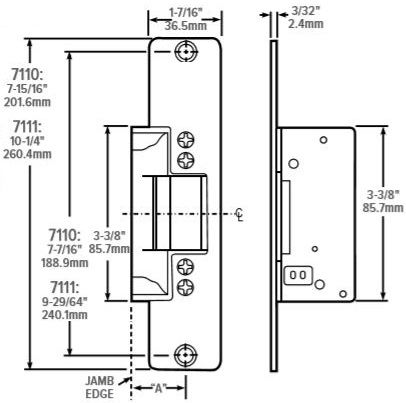

    Faceplate: Flat with radius corners

    This electric strike comes in a choice of two faceplates:

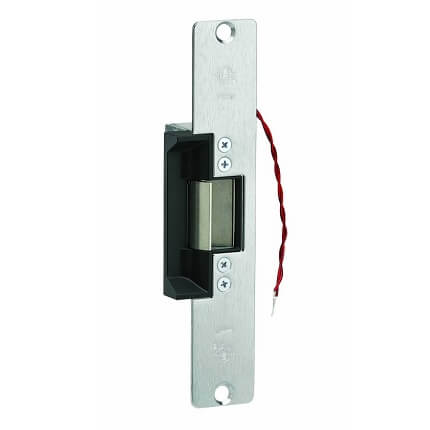

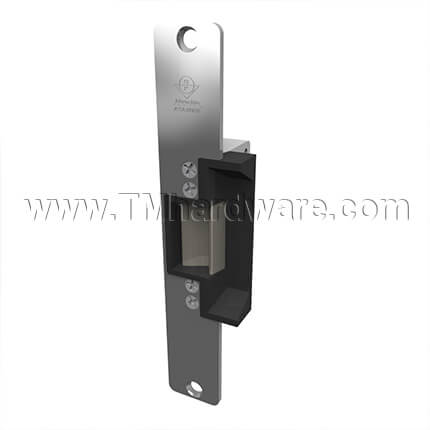

    • 7110:
      • Width: 1-7/16" (36.5 mm)
      • Height: 7-15/16" (201.6 mm)

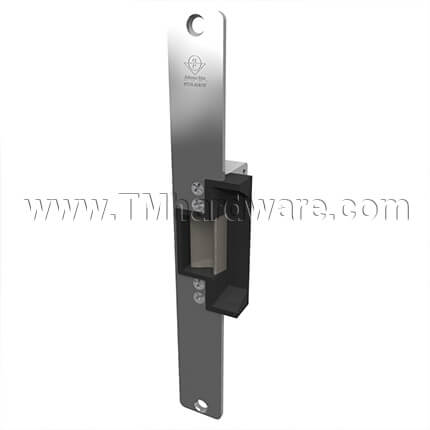

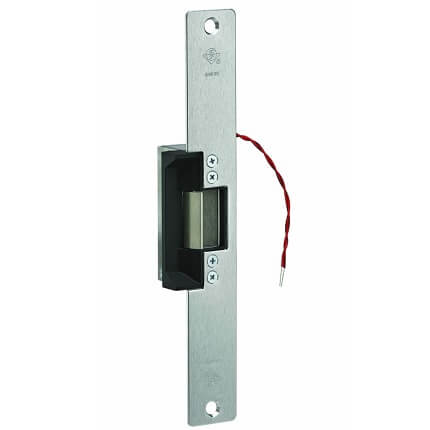

    • 7111:
      • Width: 1-7/16" (36.5 mm)
      • Height: 10-1/4" (260.4 mm)

    Strike Opening: Stainless steel bolt retaining keeper

    Strike Lip: Basic strike has lip of proper length for 1-3/4" (44.5 mm) thick door that closes flush with jamb edge. Lip extension kits available separately for door thickness or jamb shape that differ from this standard relationship.

    Operating Mode:

    • Fail secure: Unlocks when energized; in the event of a power failure the strike remains in a locked condition.
    • Fail safe: Locks when energized; in the event of a power failure the strike remains in an unlocked condition.

    Fail secure and fail safe are field selectable at time of installation, see Fail Secure / Fail Safe Manual for instructions.

    Please note, AC intermittent solenoid is not compatible with fail safe mode and cannot run continuously to keep the door locked.

    DC continuous units are silent, AC intermittent units “buzz” on operation.

    Lock Compatibility: 4510, 4530, 4700 (discontinued), 4900, 4920AN Series Deadlatches and 8300, 8400 Series Mortise Exit Devices, or any cylindrical locksets with 1/2" - 5/8" (12.7 mm - 15.9 mm) latchbolt projection.

    Operation: Electrical actuation unlocks the keeper and releases the latchbolt so the door may be opened without operating the latch itself. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide electrical control of remote operation.

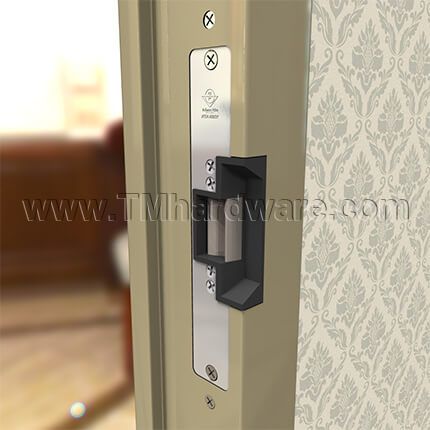

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Electric Strike 7100 / 7101, For Adams Rite Deadlatches and Cylindrical Locks, For Aluminum Jambs.

      • SKU
        AR7110
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      7110; 7111
    • Product Details
      • Included Parts
        Strike Body, Faceplate(s), Mounting Screws, Mounting Clips, Adhesive Shims
      • Faceplate Type
        Flat
      • Compatibility
        Deadlatch, Cylindrical Locks
      • Voltage
        12 Volts, 16 Volts, 24 Volts
      • Current and Duty
        DC continuous or intermittent, AC intermittent
      • Current Draw
        0.33A at 12 VDC, 1.42A at 12 VAC
        0.22A at 16 VDC, 0.63A at 16 VAC
        0.17A at 24 VDC, 0.74A at 24 VAC
      • Operating Mode
        Fail Secure (Standard), Fail Safe
      • ANSI / BHMA Grade
        Grade 1
    • Dimensions

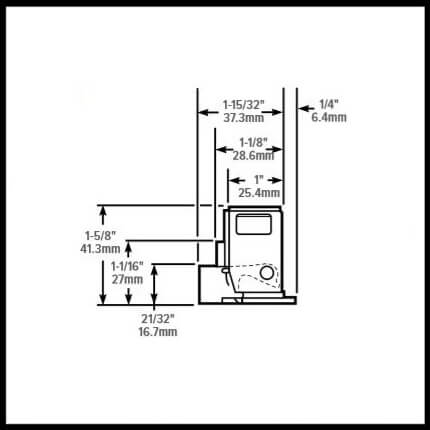

      • Case Dimensions
        1" L x 1-5/8" W x 3-3/8" H
      • Strike Opening
        5/8" L x 1/2" W x 1-7/16" H
      • Strike Lip
        For 1-3/4" Thick Doors
      • Faceplate Height
        7-15/16" Height, 10-1/4" Height
    • Installation
      • Door Material
        Aluminum, Hollow Metal, Wood
    • Special Features
      • Static Strength
        1,500 lbs
      • Dynamic Strength
        70 ft lbs
      • Cycle Testing
        250K
    • Finishes
      • Finish
        Satin Aluminum, Clear Anodized (628)
    • Compliance Details
      • Compliance Details
        UL Listed, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    Custom options are available, please contact us for details and pricing.

    • Lip Extension Kit - for various dimensions of door centerline to jamb edge
    • Monitoring Kit - indicates when the latchbolt is engaged in the strike and whether the strike jaw is blocked
    • Modular Packaging - match one strike body kit with one faceplate kit (all hardware included) to make a complete electric strike
    • PS-1 Power Supply- provides filtered and regulated voltage output to power electric strikes
    • 4603 Rectifier - converts low voltage AC current to DC of same voltage
    • 4605 / 4606 Transformer - converts 120 VAC to 12/24 VAC
    • Piezo Horn Audible Indicator - provides for audible indication when a DC electric strike is energized

    Certificate of Compliance

    UL 1034 burglary-resistant listed

    UL 294 (6th Edition) listed

    ANSI/BHMA A156.23 Grade 1
