Adams Rite Entry Trim 3080E Series, Electrified, For Adams Rite Exit Devices and Deadlatches

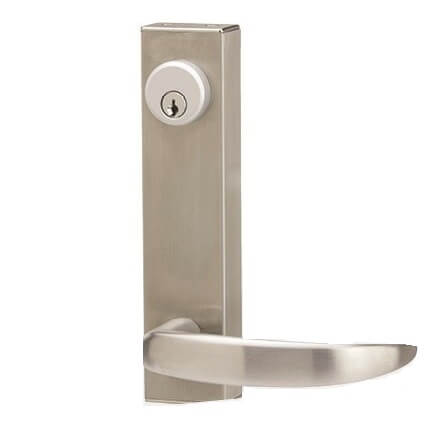

Adams Rite offers a range of trims designed to easily integrate with our deadlocks and deadlatches to compliment any door. This electrified entry trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch.

Included Parts:

• Entry trim
• Mounting hardware

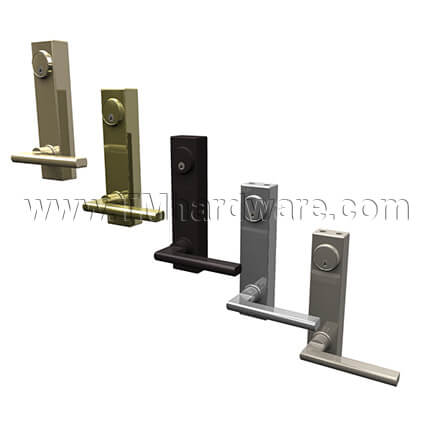

Handle: Available in a choice of standard and designer handles as well as finishes. The standard levers are designed to return with 1/2" (12.7 mm) of the door face. All models share the same core components, so levers can be changed without having to replace the entire trim.

Please note, all handles are non-handed, with the exception of the MN and MV designer levers where handing must be specified.

Mortise Cylinder: Available with or without a cylinder hole. The lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam, available separately.

Please note, Adams Rite recommends that the 3080E Entry Trim is used in conjunction with Medeco high security cylinders for optimal security.

Electrified Trim: The electrified feature provides a solenoid that will allow the handle to be turned to unlatch the exit device.

• When there is no remote activation of the selenoid, the handle is locked in place and the trim is locked and the exit device remains latched.
• When there is remote activation of the solenoid, the trim is unlocked from the outside and the exit device remains latched.

The continuous duty solenoid enables remote activation of the locking function of the trim without unlatching the exit device on the door, making the trim ideal for stairwell and fire door applications.

For a standard non-electrical entry trim, see our 3080 Entry Trim.

Compatibility: 4510, 4530, 4900, 4920AN and 4781 Series Deadlatches and 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800 and 8900 Series Exit Devices.

Door Type: For narrow stile aluminum, hollow metal and wood doors.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
