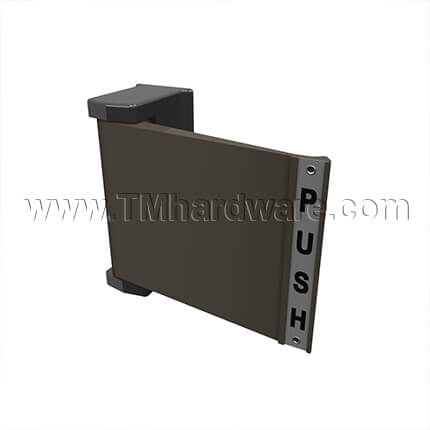

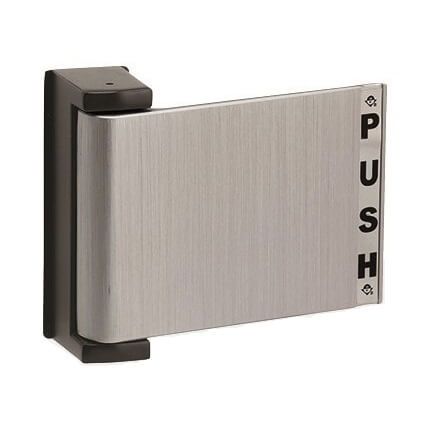

Adams Rite Paddle Trim 4590-01, Limited Touch, For Adams Rite 4300, 4500, 4900 Series Deadlatches - QUICKSHIP

Adams Rite offers products that provide hygienic solutions for hands-free and limited touch access and egress. This push / pull paddle trim is compatible with Adams Rite 4300, 4500 and 4900 Series Deadlatches to provide compliance with single motion to egress requirements.

For more options, See Our Adams Rite Paddle Trim 4590-01, Limited Touch, For Adams Rite 4300, 4500, 4900 Series Deadlatches

Escutcheons: Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.

Cam Plug: Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.

Compatibility: 4300 Electrified Deadlatch, 4510, 4530, 4900, 4920AN Series Deadlatches.

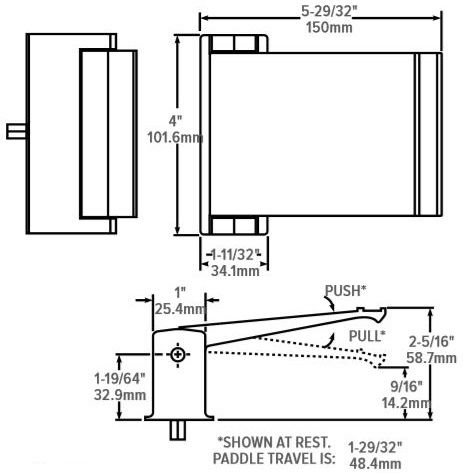

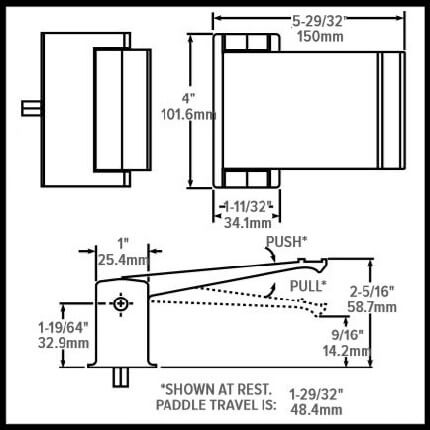

Door Thickness: 1-3/4"

For a paddle compatible with MS+1890 Deadlock/Latch and 2190 Interconnected Deadbolt/Deadlatch, see our 4590-11 Paddle Trim.

Operation: An ergonomic alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings.

This paddle is available in a choice of four configurations:

• Pull to Left: outside of left hand reverse door or inside of right hand
• Push to Left: outside of left hand door or inside of right hand reverse
• Pull to Right: outside of right hand reverse door or inside of left hand
• Push to Right: outside of right hand door or inside of left hand reverse

Handing can be reconfigured to any mode in the field, see Installation Instructions for more details.

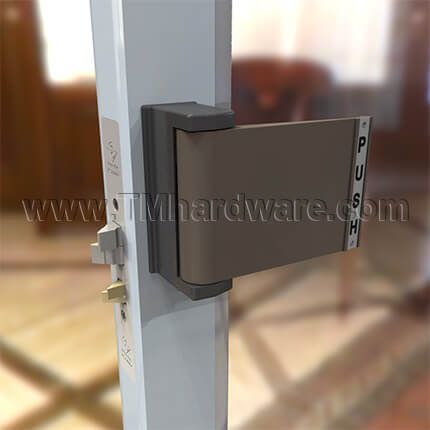

Hands-Free Solution: This deadlatch paddle allows doors to be opened with a push of the hip or pull of the arm for hands-free and limited touch access and egress. The design reduces unsafe catchpoints on clothing and the ability to control the door with limited contact. The paddle is suitable for healthcare facilities or any other door opening where reducing the transmission of germs is essential to public safety.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 10 year warranty against defects in materials and workmanship.
