Falcon W Series Grade 2, Door Knob Lock

Falcon W Series Door Knobs can be applied to government/military, retail, industrial or multi-family project. W Series Door Locks will fit a 1-3/8"-1-3/4" thick door, backset is 2-3/4", 6-Pin, Solid brass, keyed 5-pin, Falcon G keyway, Keyed different (KD) cylinder. Variety of finishes, functions, and knob styles available. See dropdown and details below

PRICED PER SET

See tabs below for additional information
    • SKU
      FLW-ELI-605
    Call for price!
    845-388-1300

    Click here to view the Falcon W Series from the Falcon Full Line Catalog

    Handing: Non-Handed

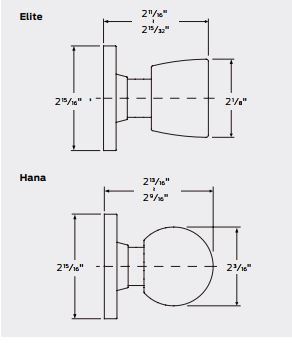

    Knob Style: Elite or Hana, Choose from options above.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door.

    Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

    Screws: Furnished with combination screws for use in wood or metal doors and frames.

    Keys: Two, Nickel silver cut keys per lock

    Keyway: Falcon G keyway standard on conventional cylinder. "A" Keyway standard for IC-available for purchase through our office.

    Additional Keying Options: Additional keying options and keyways available through our office.

    Cylinder / Core:

    • Housing and plugs machined from Solid Brass, Springs are stainless steel.
    • 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD),
    • Cylinder assemblies removable to rekey.
    • Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.

    Interchangeable Cores:  The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage. Options available for competitor cylinders including, Corbin-Russwin, Yale and Sargent. (Can be purchased through our office.)

    Additional Cylinder Options: (Can be purchased through our office.)

    • Keyed 6-Pin or 7-Pin
    • Construction Cores
    • Small Format Interchangeable Core (SFIC)

    Door Thickness: 1-3/8" to 1-3/4"

    Backset: 2-3/4" standard. 2-3/8" also available through our office.

    Latch:

    • 1/2" throw-standard.
    • 1-1/8" x 2-1/4" square corner faceplate.
    • 1" housing diameter
    • Latches have selfadjusting fronts to accommodate beveled or flat doors.

    Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

    Functions:

    • Non-Keyed Functions: W12-Dummy Trim, W101-Passage, W301-Privacy,
    • Keyed Functions: W501-Entry, W511-Entry/Office, W561-Classroom, W571-Corridor, W581-Storeroom, W711-Apartment Entrance
    • See W Series Door Knob Functions for more information

    Options available through our office only:

    • Additional latches and strikes
    • Additional cylinders and keyways
    • Additional Dustboxes
    • Additional Keys, or Large Bow Keys

    Installation:

    • Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly, and two screws that screw into the chassis assembly.

    Compliance Details:

    • All locks meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets are ULListed (3 hour A Label)
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to see Falcon W-Series Grade 2 Door Lock with 2-9/16" Rose

      • SKU
        FLW-ELI-605
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      W Series Knobs
    • Knob Style
      Elite, Hana
    • Function
      Passage, Privacy, Entry, Entry / Office, Classroom, Corridor, Storeroom, Apartment / Entrance, Single Dummy
    • Finishes
      • Finish

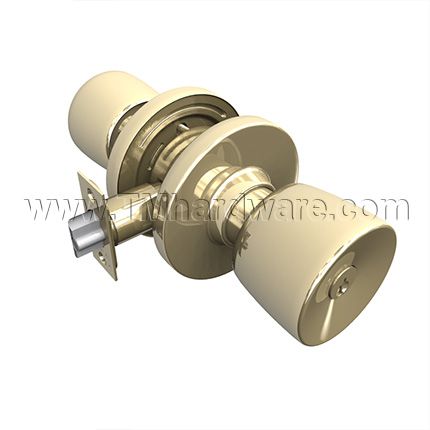

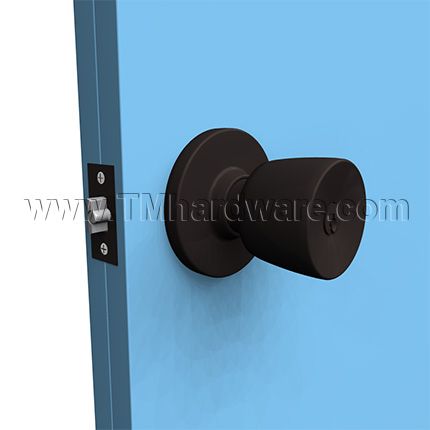

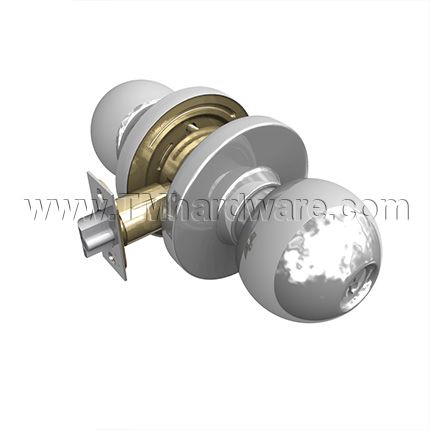

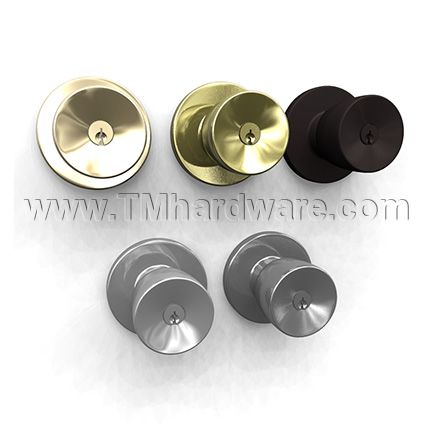

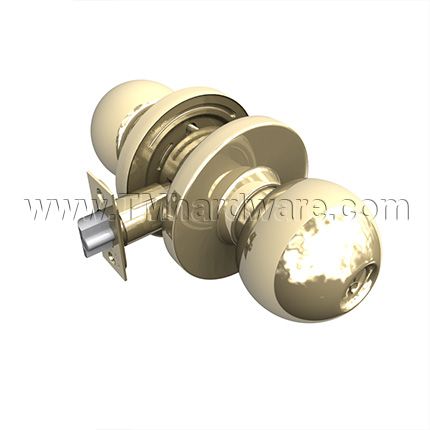

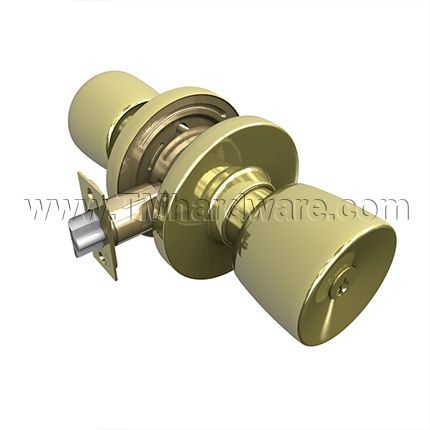

        Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
    • W101 - Passage (Non-Keyed) / F75
    • W301 - Privacy (Non-Keyed) / F76
    • W501 - Entry / F82
    • W511 - Entry / Office / F109
    • W561 - Classroom Lock / F84
    • W581 - Storeroom Lock / F86
    • W711 - Apartment/Entrance

    Finishes Comply with the following ANSI/BHMA Codes:

    • Bright Brass - US3/605
    • Satin Brass - US4/606
    • Oil Rubbed Bronze - US10B/613
    • Bright Chrome - US26/625
    • Satin Chrome - US26D/626

    *All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets

    *Locksets shall be UL Listed 3-hour, A Label
