Hager 9614 Bypass Track Sliding Door System, 60 Lbs. Door, Built-in Fascia

Hager 9614 Bypass Track Sliding Door System, 60 Lbs. Door, Built-in Fascia
Hager Companies

This Bypass Sliding Door Series includes all the parts necessary to install 2 Bypass Panels, 1 3/8" thick. Bypass Sets are available for doors weighing up to 60 Lbs. with variations in sizing.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      HG9614-48_099091
    Call for price!
    845-388-1300

    Click here to view Hager 9614 Series from Hager Full Line Catalog.

    Included Parts for 9614 Bypass sets: Components can be ordered separately, see links below.

    Mounting Type: Aluminum Sidewall Bypass Track and Hardware for 2 doors.

    Door Thickness: For doors 1 3/8" thick. Kits are available for doors of other thicknesses through our office.

    Track Lengths: Available in stock lengths up to 96". Tracks up to 144" lengths can be purchased through our office.

    Materials: Track is made of extruded aluminum jump-proof style with "V" shaped rails and built in fascia. Micro Adjust Hanger made from Zinc plated Steel with molded Celcon wheels.

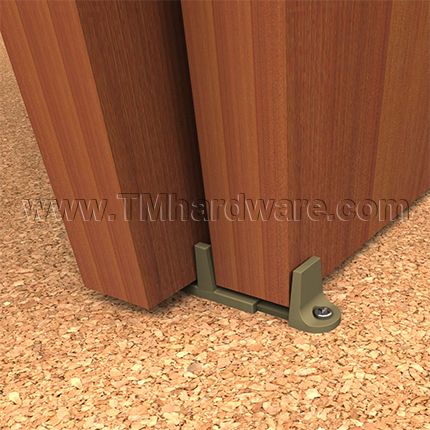

    Door Bottom Guide: Standard kit provided with high density polyethylene door guide for doors 1 3/8".

    Hangers: Hangers have 7/8" diameter wheels

    Finger Pull: Provided standard in US3 Finish. See here for additional finish options.

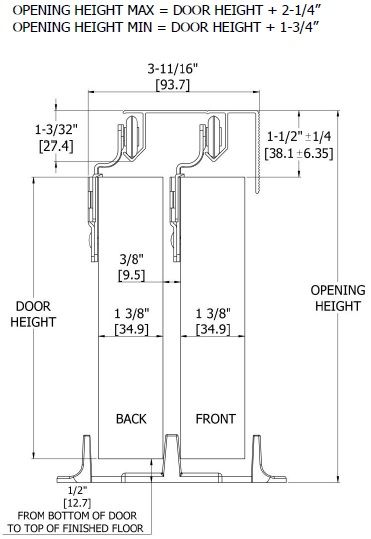

    Height Clearance:

    •  Minimum Clearance - Door Height + 1 3/4"
    • Maximum Clearance - Door Height + 2 1/4"

    Width Clearance: 2 Door Bypass - 2 times door width minus 1"

    Installation: Simple to install, all mounting hardware included.

    Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

      • SKU
        HG9614-48_099091
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      9614
    • About This Product
      • Mounting Type
        Sidewall Mount
      • Door Mount
        Surface Mount
      • Track Type
        V-shaped Rails Track
      • System Type
        Bypass

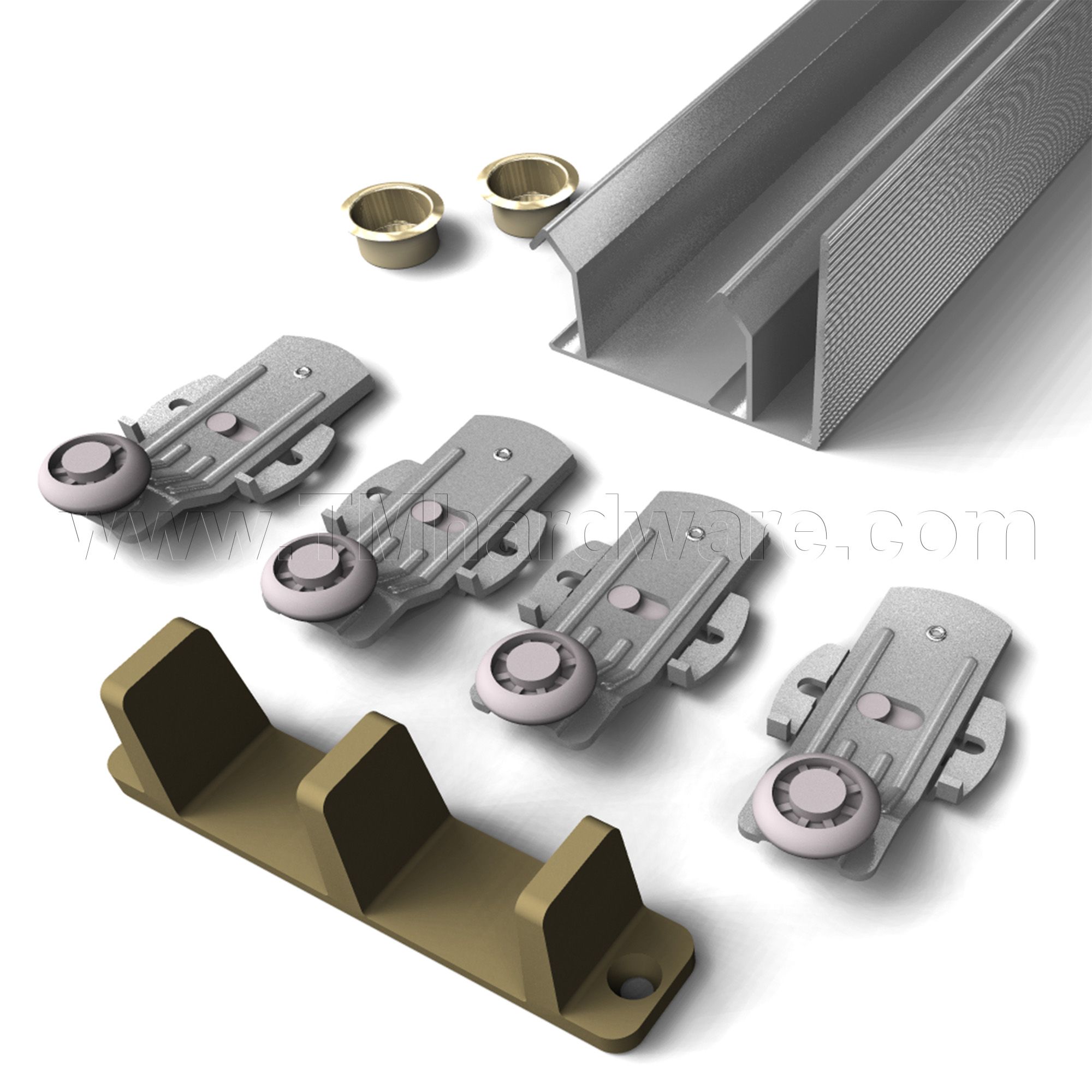

      • Included Parts
        Aluminum Track – 9820 (1 ea.)
        Large Cam Adjustable Hangers – 9401 (4 ea.)
        Brass Finger Pulls – 2610 (2 ea.)
        Door Guide – 9351 (1 ea.)
        #8 x ¾” Phillips Pan Head Screws (12 ea.)
        #8 x 1 ¼” Phillips Pan Head Screws (7 ea.)
      • Material
        Aluminum
      • Length
        48" By-Pass Set (2x24" Doors), 60" By-Pass Set (2x30" Doors), 72" By-Pass Set (2x36" Doors)
    • Dimensions
      • Door Panel Weight
        Up to 60 lbs
      • Door Width
        Up to 24" Wide, Up to 30" Wide, Up to 36" Wide
      • Door Thickness
        1 3/8" Thick
      • Track Length
        48" Length, 60" Length, 72" Length
    • Special Features
      • Special Features
        Fascia
    • Compliance Details
      • ANSI Designation
        D8742
      • Warranty
        1 Year Limited Warranty

    Click to print Hager 9614 Bypass Sets Product Specs.

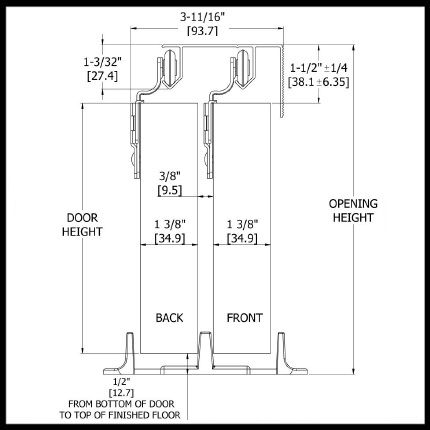

    Dimensions:

    Hager 9614 By Pass Sets

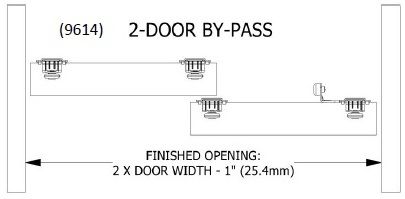

    Opening Dimensions:

    Hager 9614 Sliding Door Hardware Dimensions
