Hager 9514 Bypass Track Sliding Door System, Aluminum Track, 60 Lb. Door
This Bypass Sliding Door Series includes all the parts necessary to install 2 Bypass Panels 3/4" or 1 3/8" thick. Bypass Sets are available for doors weighing up to 60 Lbs. with variations in sizing.
PRICED PER SET - See full product details and specs in the tabs below.
Click here to view Hager 9514 Series from Hager Full Line Catalog.

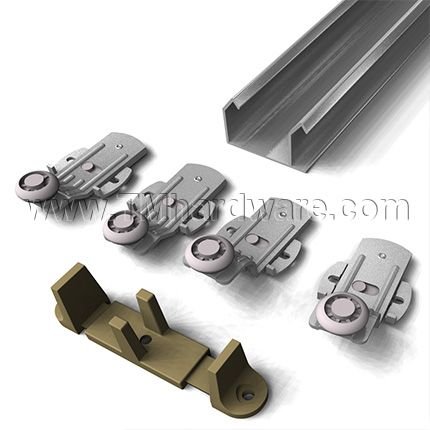

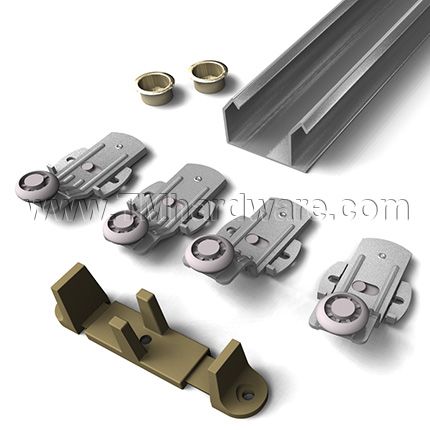

Included Parts for 9514 Bypass sets: Components can be ordered separately, see links below.

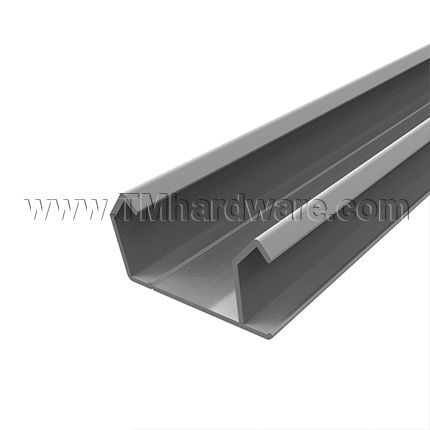

- (1 ea.) Aluminum Track (9810)
- (2 ea.) Small Cam Adjustable Hangers (9400)
- (2 ea.) Large Cam Adjustable Hangers (9401)
- (2 ea.) Brass Finger Pulls (2610)

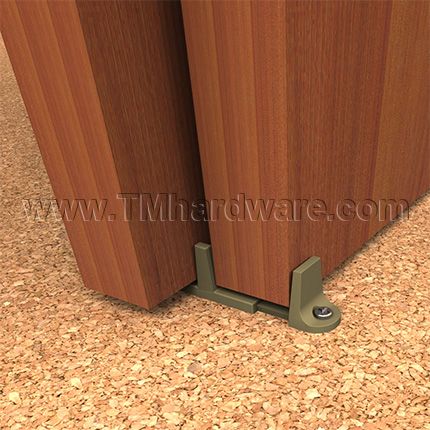

- (1 ea.) Adjustable Door Guide (9353)
- (12 ea.) #8 x 3/4" Phillips Pan Head Screws
- (7 ea.) #8 x 1 1/4" Phillips Pan Head Screws

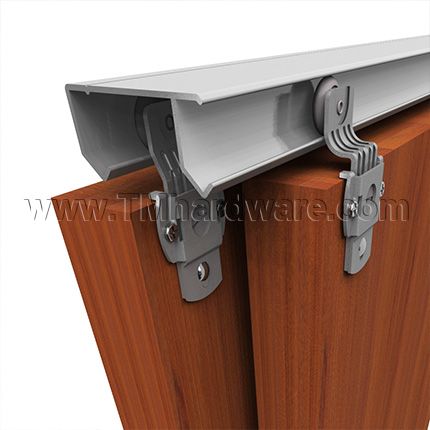

Mounting Type: Aluminum Sidewall Bypass Track and Hardware for 2 doors.
Door Thickness: For doors 3/4" or 1 3/8" thick. Kits are available for doors 1" and 1 1/8" thick through our office.
Track Lengths: Available in stock lengths up to 96". Tracks up to 144" lengths can be purchased through our office.
Materials: Track is made of extruded aluminum, jump-proof style with "V" shaped rails. Micro Adjust Hanger made from Zinc plated Steel with molded Celcon wheels.
Door Bottom Guide: Standard kit provided with high density polyethylene adjustable guide for doors 3/4" - 1 3/8".
Hangers: Hangers have 7/8" diameter wheels

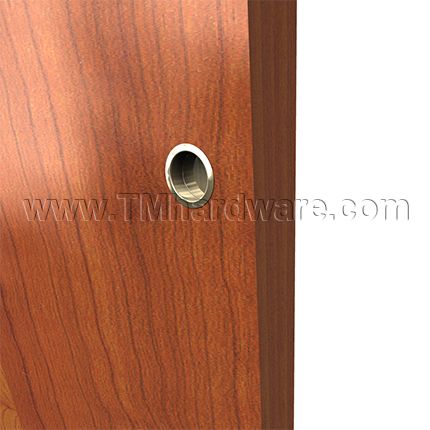

Finger Pull: Provided standard in US3 Finish. See here for additional finish options.
Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPN9514
- About This Product
-
Mounting TypeSidewall Mount
-
Door MountSurface Mount
-
Track TypeV-shaped Rails Track
-
System TypeBypass
-
Included PartsAluminum Track – 9810 (1 ea.)
Small Cam Adjustable Hangers – 9400 (2 ea.)
Large Cam Adjustable Hangers – 9401 (2 ea.)
Brass Finger Pulls – 2610 (2 ea.)
Adjustable Door Guide – 9353 (1 ea.)
#8 x ¾” Phillips Pan Head Screws (12 ea.)
#8 x 1 ¼” Phillips Pan Head Screws (7 ea.) -
MaterialAluminum
-
- Dimensions
-
Door Panel WeightUp to 60 lbs
-
Door Thickness3/4" Thick, 1 3/8" Thick
-

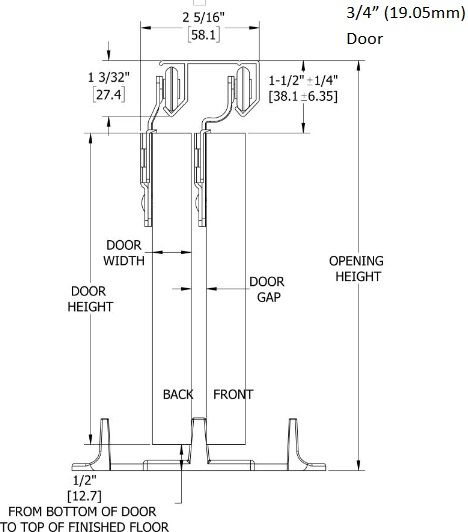

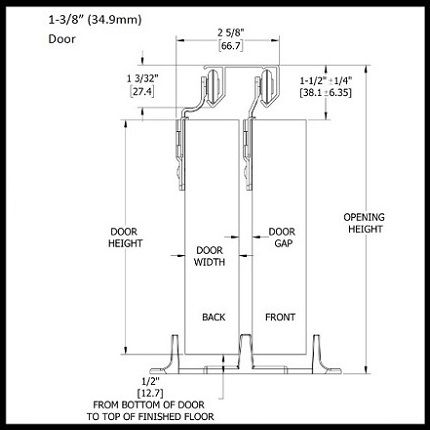

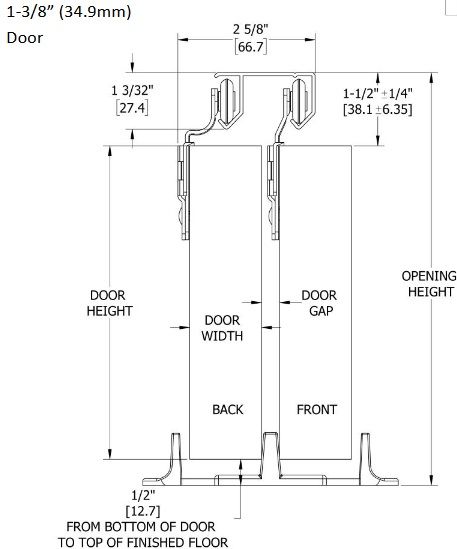

Height ClearanceMinimum Clearance - Door Height + 1 3/4"
Maximum Clearance - Door Height + 2 1/4" -
Width Clearance2 Door Bypass - 2 times door width minus 1"
-
Length48" By-Pass Track (2x24" Doors), 60" By-Pass Track (2x30" Doors), 72" By-Pass Track (2x36" Doors), 96" By-Pass Track (2x48" Doors)
-
- Compliance Details
-
Compliance DetailsANSI/BHMA A156.14
-
ANSI DesignationD8742
-
Warranty1 Year Limited Warranty
-
Click to view or print Hager 9514 and 9583 By Pass Kit Installation Instructions.
