Hettich TopLine M Top Running Set for Overlay Wood Doors, 77 Lbs., 2 Door System
This product has been discontinued.
Click here to view additional Hettich Sliding Hardware.

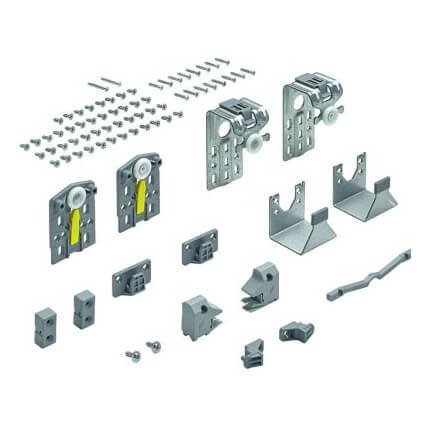

Hettich TopLine M 9133612 STB 16.1 Set includes components for installing sliding doors on a 2 door cabinet:
- (2 ea.) Running component for front door
- (2 ea.) Running component for rear door
- (2 ea.) Guide components for front door
- (2 ea.) Support Blocks for runner profile
- (2 ea.) End Stops for runner profile
- (1 ea.) Spacer for offset opening
- Fixing Material
- Optional Silent System: (2 ea.) Soft Closing Elements, Activators and End Stops, (4 ea.) Mounting Adapters, Fixing Material.
Track: Sold separately. See our Hettich 9117425 TopLine M Runner Profile.
Silent System #9144901:
- Used on 2 door overlay cabinets.
- Soft closing element can only be used for offset opening.
- Quietly and gently closes sliding doors.
Door Thickness: .59" (15 mm) - .75" (19 mm)
Door Material: Wood
Door Weight: For doors up to 77.16 pounds (35 Kg.) maximum
Door Height: 90.56" (2300 mm) maximum
Door Width: 25.60" - 49.21" (650-1250 mm)
Runner Profile Material: Aluminum
Door Center Distance: 1.14" (29 mm)
Features: Running components with integrated lift off guard. Discreet runner profile gives elegant look to cabinets.

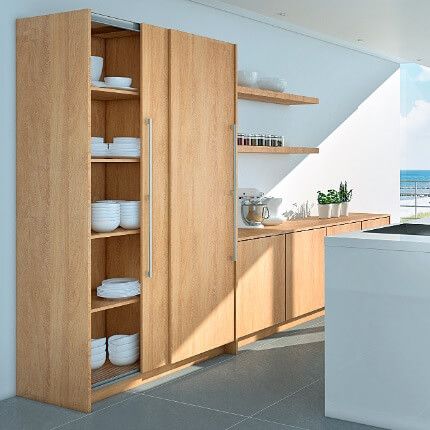

Applications: Used in overlay application where runner system is installed in front of the bottom panel. Can be used in new applications or to convert furniture with standard overlay hinged doors to sliding doors.
Installation: Can be applied with offset opening for applications with door handles or finger pulls for a door offset of 2.28" (58 mm) or in flush opening for handle less applications and when using internal drawers (door offset: 0".)
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerHettich
-
MPN9133612
-
Silent SystemNo Silent System, Silent System #9144901
Click to view and print Hettich 9133612 TopLine M Product Specs.

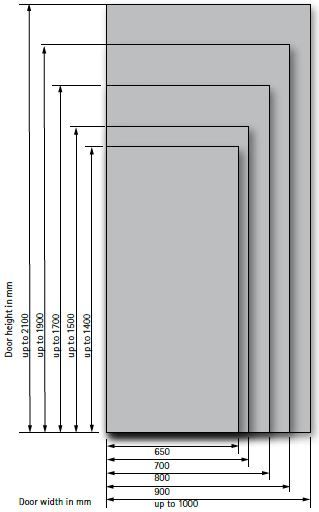

Dimensions:

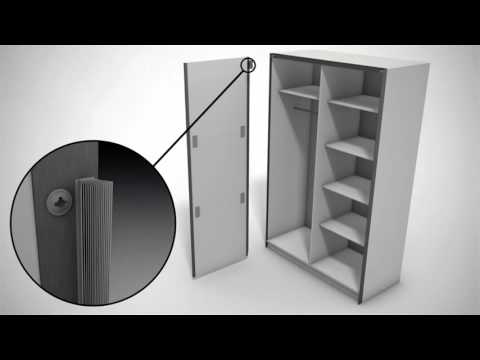

Click to view and print Hettich 9133612 TopLine M Installation Guide.
