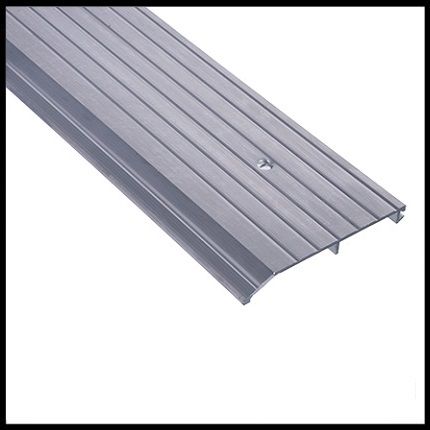

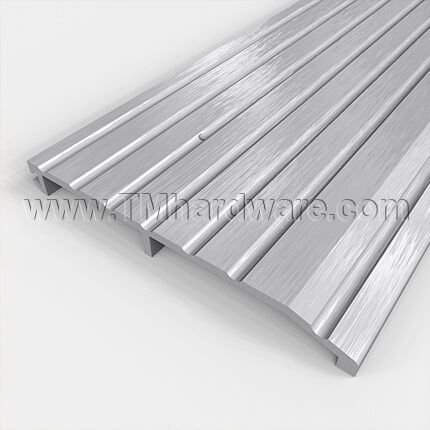

NGP 350 Half Threshold, 5" Aluminum or Brass, .5" Height

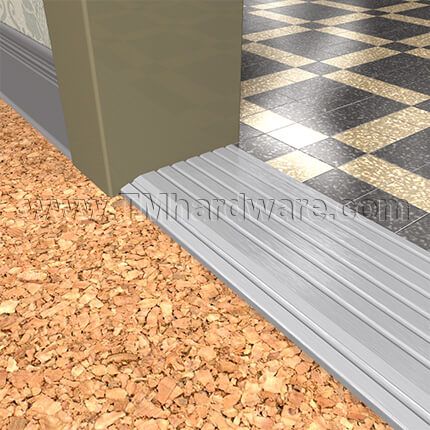

NGP 350 Half Threshold has a width of 5" with an offset of .5" which is a simple way to correct a floor offset between rooms and eliminate the tripping hazard associated with differences in floor surface heights. This threshold is wheelchair accessible. Available in two aluminum or brass finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 350 Half Threshold Key Features:

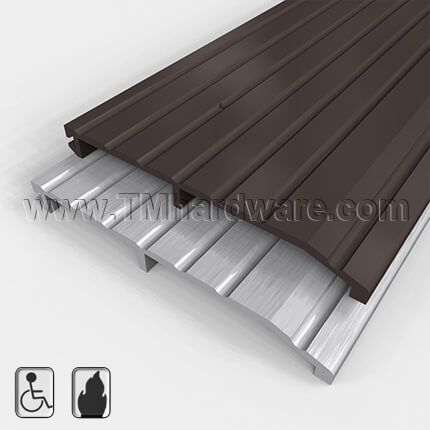

This threshold can be used as a standard half threshold or as a thermal break when inserting a thermoplastic into the face of it. It can also be combined with NGP 1/2" half thresholds 321, 322, 327, or 355 to create a wider width thermal break threshold. It is furnished with 1 aluminum spline for field assembly.
Material: Aluminum alloy 6063, Alloy CDA 385 (Copper Alloy No. C38500
Width: 5"
Height: .5" (1/2")
Length: Custom cut to size.Â
Finishes: Mill Aluminum, Dark Bronze Anodized, Satin Finish Bronze
Weight:Â .83Â lbs/ft. for aluminum, 2.10Â lbs/ft. for brass

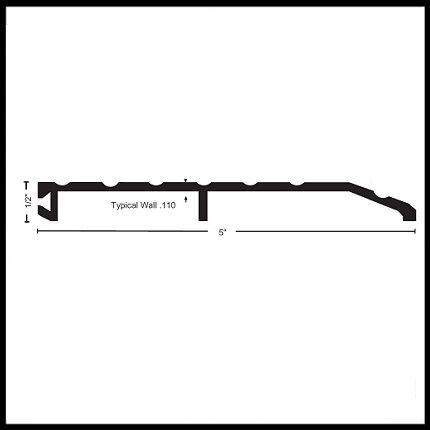

Typical Wall Thickness: .110"Â
Compliance Details: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs;Â UL Listed;Â ANSI/BHMA Certified;Â Positive Pressure Certified.
Installation: See Installation Guide tab.
- #10 x 1-1/2" FH zinc plated/brass wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):Â
- Slip-Resistant Finish
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3Â year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional half thresholds, see our NGP 324Â Half Threshold, 4" Aluminum with .5" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN350
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.110" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeHalf Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
