NGP 355 Thermal Bridge Threshold, 5" Aluminum, .5" Height

NGP 355 Thermal Bridge Threshold, 5" Aluminum, .5" Height
National Guard Products

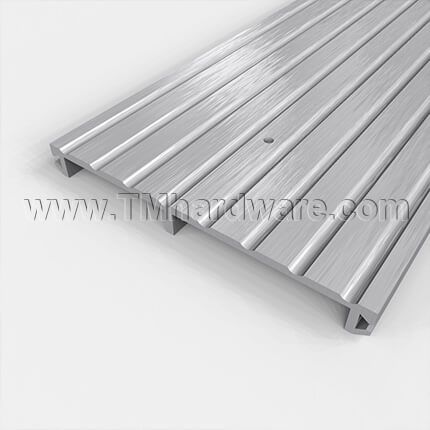

NGP 355 Thermal Bridge Threshold is used as a bridge to connect two .5" half thresholds or to create a wider thermal break half threshold. This threshold is wheelchair accessible. It has a width of 5" and an offset of .5". Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG_355
    • Market price:$25.80
      • save 15%
    • Starting price: Price: $21.93 per foot


    NGP 355 Thermal Bridge Threshold Key Features:

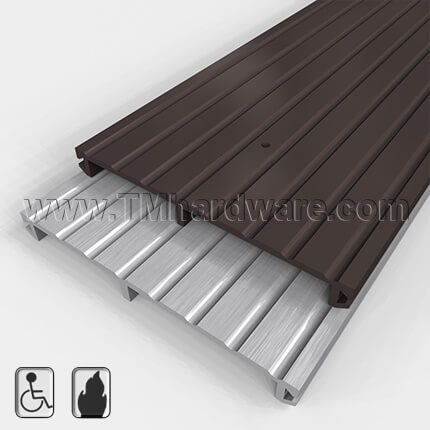

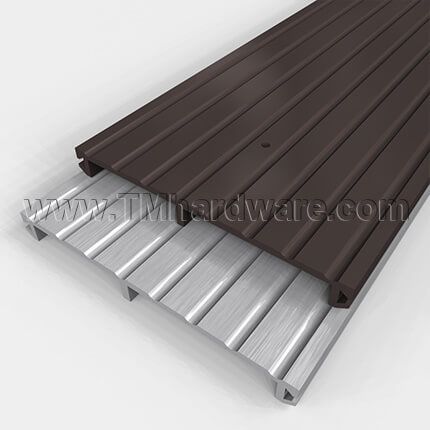

    This threshold can be used as bridge to connect two half thresholds together, to create a wider threshold. Or it can be used to make a wider half threshold. It is designed to be used as a thermal break when inserting a thermoplastic into the face of it. It can create wider thermal break thresholds for non-fire-rated applications when connencting to NPG 1/2" half thresholds 321, 322, 327, and 350. It is furnished with two rigid PVC thermal break splines for field assembly.

    Material: Aluminum alloy 6063

    Width: 5"

    Height: .5" (1/2")

    Length: Custom cut to size.

    Finishes: Mill Aluminum, Dark Bronze Anodized

    Weight: .79 lbs/ft.

    Typical Wall Thickness: .110"

    Compliance Details: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs; UL Listed; ANSI/BHMA Certified; Positive Pressure Certified.

    Installation: See Installation Guide tab.

    • #10 x 1-1/2" FH zinc plated/brass wood screws included, DKB supplied with DKB threshold.

    Drilling: Threshold is drilled along the center line in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip-Resistant Finish

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional half thresholds, see our NGP 324 Half Threshold, 4" Aluminum with .5" Height.

      • SKU
        NG_355
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      355
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
      • Thickness
        .110" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Thermal Break Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    All finishes comply with BHMA / ANSI Codes

    • Mill Finish Aluminum - US27 / 719
