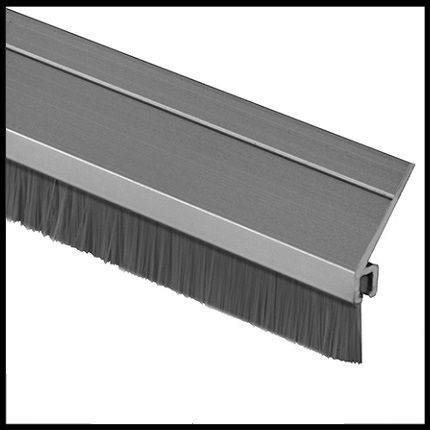

NGP A626 Door Sweep and Perimeter Gasket, .75" Aluminum Casing with .4375" Angled Nylon Brush

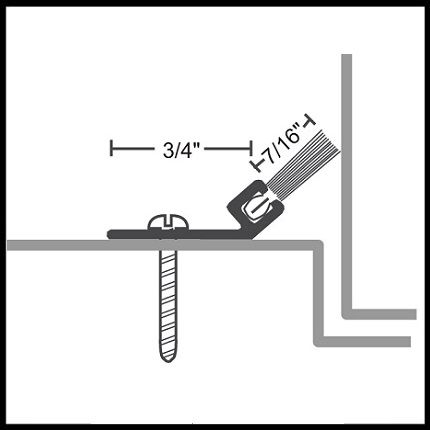

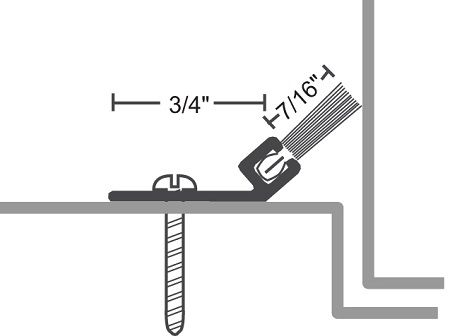

NGP A626 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .75" H, while the angled brush portion has a height of .4375". Available in various anodized finishes.
PRICED PER FOOT - see product specs and details in the tabs below
NGP A626 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities.
Brush Material: Black Angled Nylon Brush. Seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.
Mounting Options: select from options above
- Screws Only: Screw holes are slotted for easy adjustment once installed
- Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.
Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.
Compliance Details: Reach and RoHS compliant; Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.
Additional Finishes: This item is available in Bronze / Brass finish. Please call for pricing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
See also our NGP A625 Door Sweep or Perimeter Gasket with .5" Aluminum Casing and .4375" Angled Nylon Brush Sweep.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPNA626
-
MountingScrews, Adhesive + Screws
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-70°F to 425°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-
- Dimensions
-
Seal Height7/16" Height
-
Total Height1-3/16" Height
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 3/4" stainless steel sheet metal screws provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Finish
-

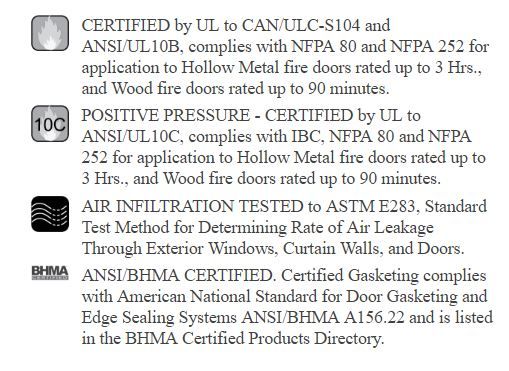

- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, BHMA Certified, Air Infiltration Rated, UL Classified
-
ANSI DesignationR3A164
-
Warranty3 Year Limited Warranty
-
