NGP D648 Door Sweep, 1" Aluminum Casing with 1" Nylon Brush

NGP D648 Door Sweep, 1" Aluminum Casing with 1" Nylon Brush
Product specs of NGP D648 Door Sweep NGP D648 Door Sweeps NGP D648 Door Sweep in Mill Aluminum Finish NGP D648 Door Sweep in MIL Finish surface applied to bottom of door NGP D648 Door Sweep in DKB Finish mortised to hollow metal door

NGP D648 Door Sweep is fitted with a nylon brush to seal the gap under doors. The brush is highly flexible and conforms well to surface irregularities. It can be mortised into a hollow metal door. Casing measures 1" H, while the brush portion has a height of 1". Available in two anodized finishes and length is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $6.65
Length (Inches)
Save to wishlist
Made in USA
SKU N_D648
Shipping See Shipping Tab Below

NGP D648 Door Sweep Key Features:

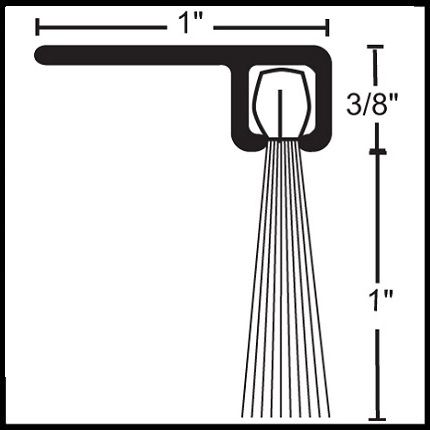

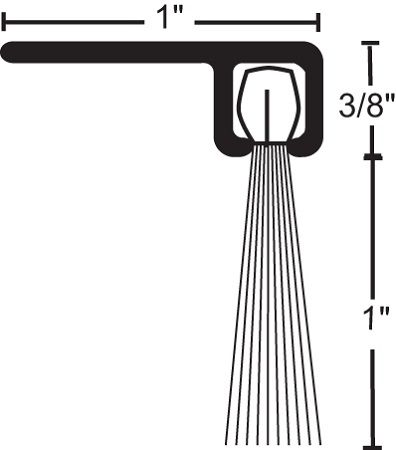

Casing Height: 1"

Casing Width: 3/8" (.375")

Brush Height: 1"

Total Height: 1-3/8" (1.375")

Retainer Material: Aluminum alloy 6063, T5 temper

Brush Material: Black or Gray Nylon Brush. Seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

Temperature Range: -70°F to 425°F

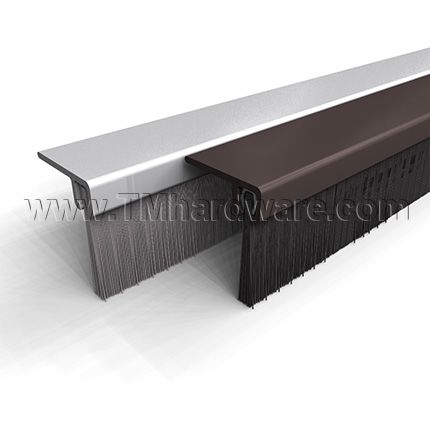

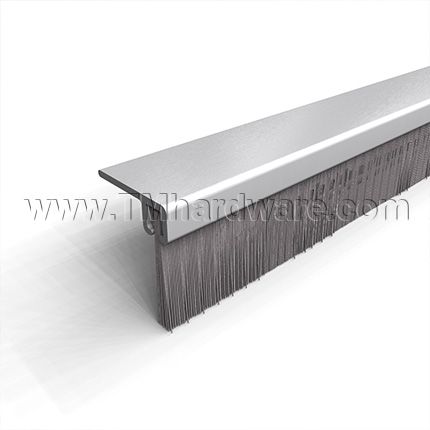

Finishes: Mill Aluminum, Dark Bronze Aluminum

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

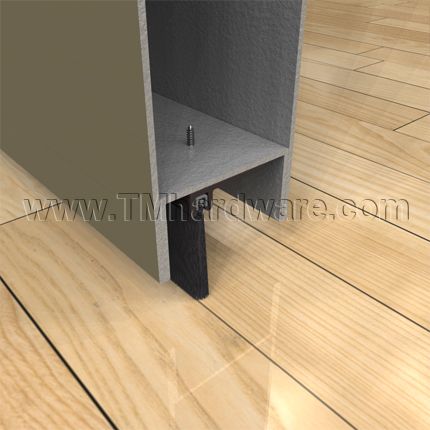

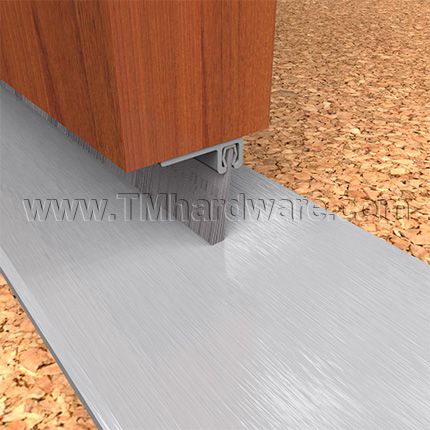

Mounting Options: This can be either mortised to hollow metal door or surface mounted on bottom of a wooden/metal door.

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

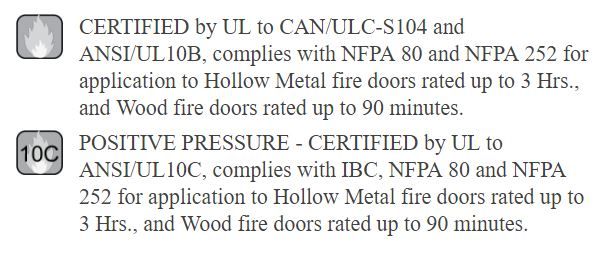

Compliance Details: Reach and RoHS compliant; UL Certified; Positive Pressure Certified; see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

See also our NGP D620 Door Sweep/ Perimeter Seal with 1" Aluminum Casing and 1.0625" Nylon Brush.
