Norton 1601, Door Closer, Surface Closer

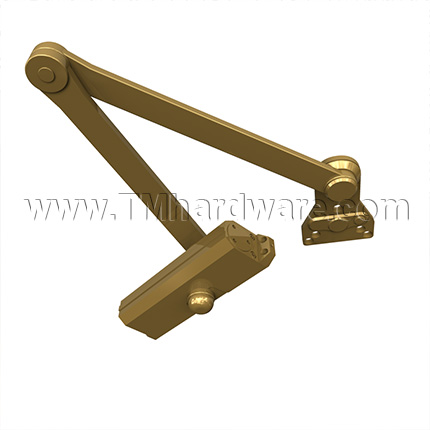

Norton 1601, Door Closer, Surface Closer, Regular, parallel or top jamb to 3" reveal, No Hold Open, Dull Bronze Painted Finish
Norton

With unrivaled performance, dependability, and quality, the 1601 door closer leads the industry. This ANSI/BHMA Grade 1 closer, commonly used in the industry, is intended for use on both interior and exterior doors. Almost any medium-traffic commercial application can benefit greatly from the 1600BC Series' extensive range of normal and heavy-duty arms, brackets, and accessories. It is available in multiple finishes with a full range of arms, choose from the drop down menus. See more details in the description below.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton 1601, Door Closer - Quickship

PRICED PER UNIT

See tabs below for additional information
    • Weight
      8.2 lbs
    • SKU
      NR-1601-691
    • Market price:$394.37
      • save 25%
    • Starting price: Price: $295.78 per item


    With unrivaled performance, dependability, and quality, the 1601 door closer leads the industry. This ANSI/BHMA Grade 1 closer, commonly used in the industry, is intended for use on both interior and exterior doors. Almost any medium-traffic commercial application can benefit greatly from the 1600BC Series' extensive range of normal and heavy-duty arms, brackets, and accessories.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton 1601, Door Closer - Quickship

    Features:

    • Exceeds 25 million cycles

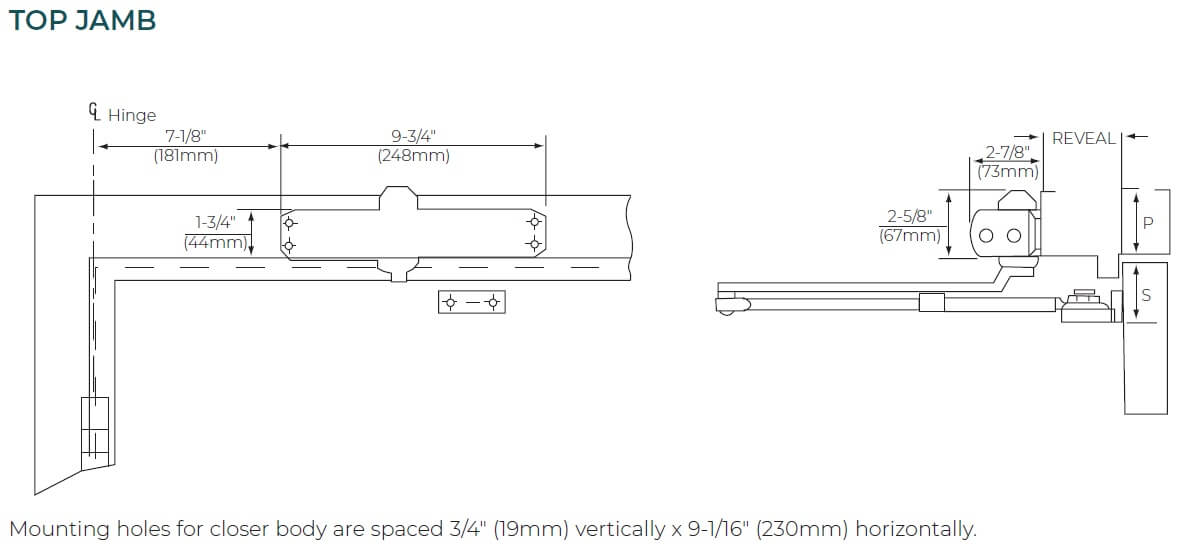

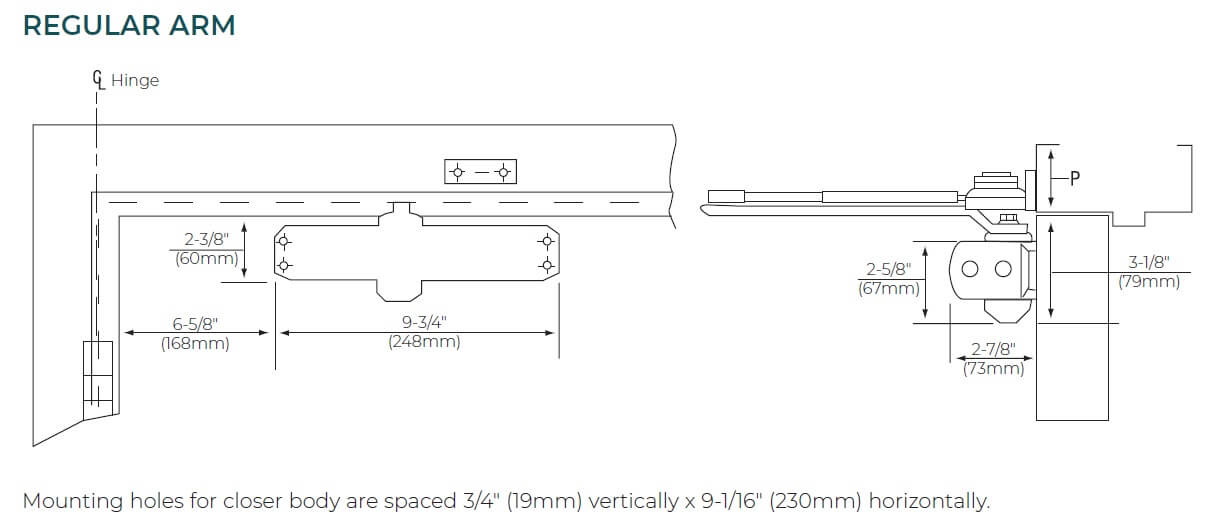

    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • Adjustable spring sizes 1-6
    • Non-handed
    • Interior or exterior doors

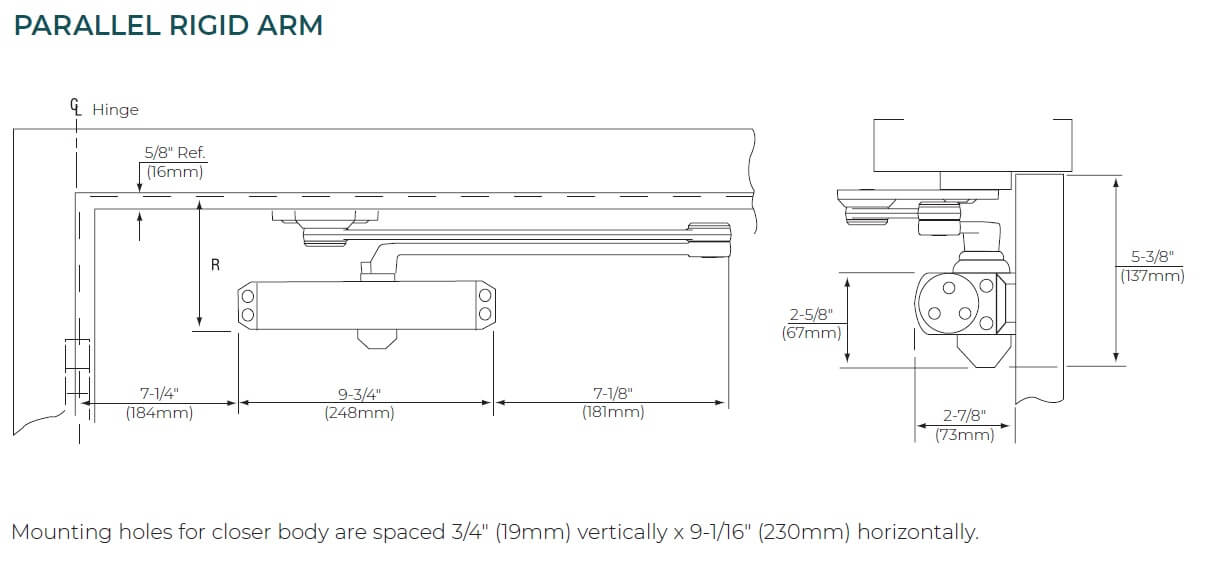

    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

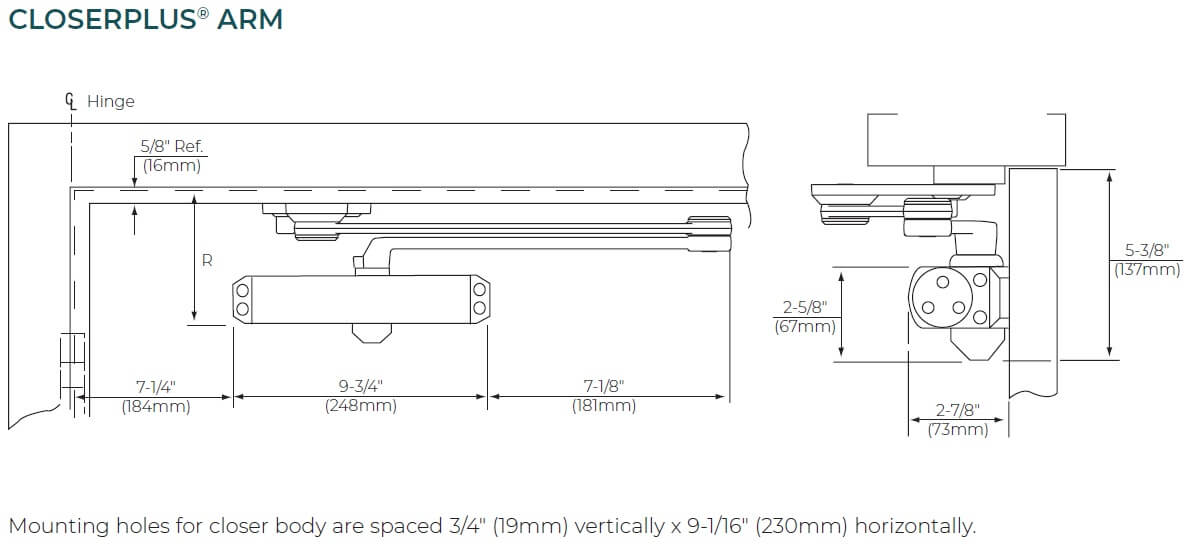

    • **CloserPlus® Arm
      • Door closers shall have a field reversible door stop. Hold open tension shall be adjustable effective at one point selected at installation, from 85° - 110° in five-degree increments. Closers shall be provided for parallel arm installation using a forged rigid steel main arm and secondary arm.

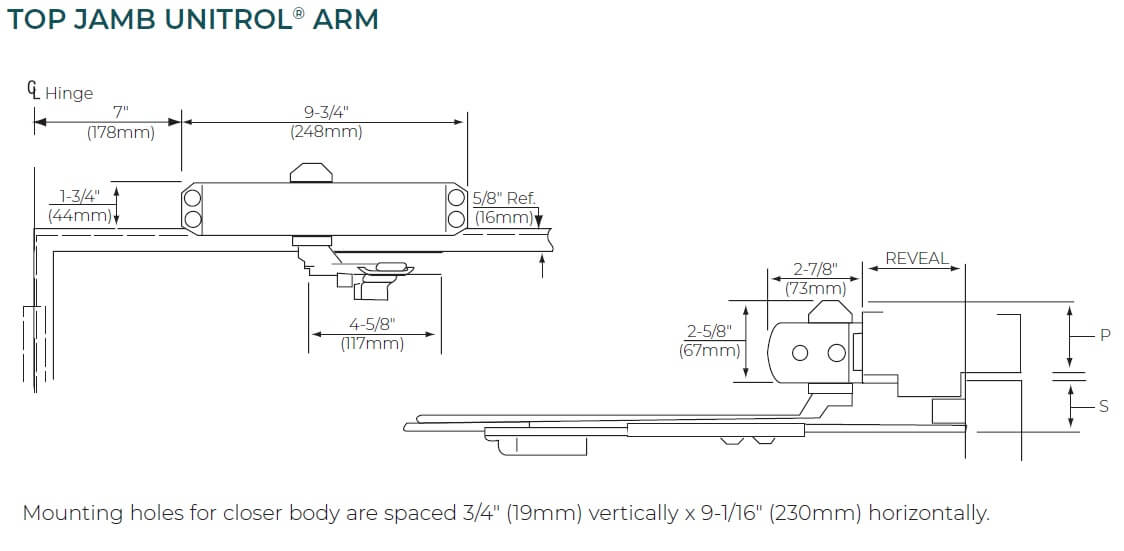

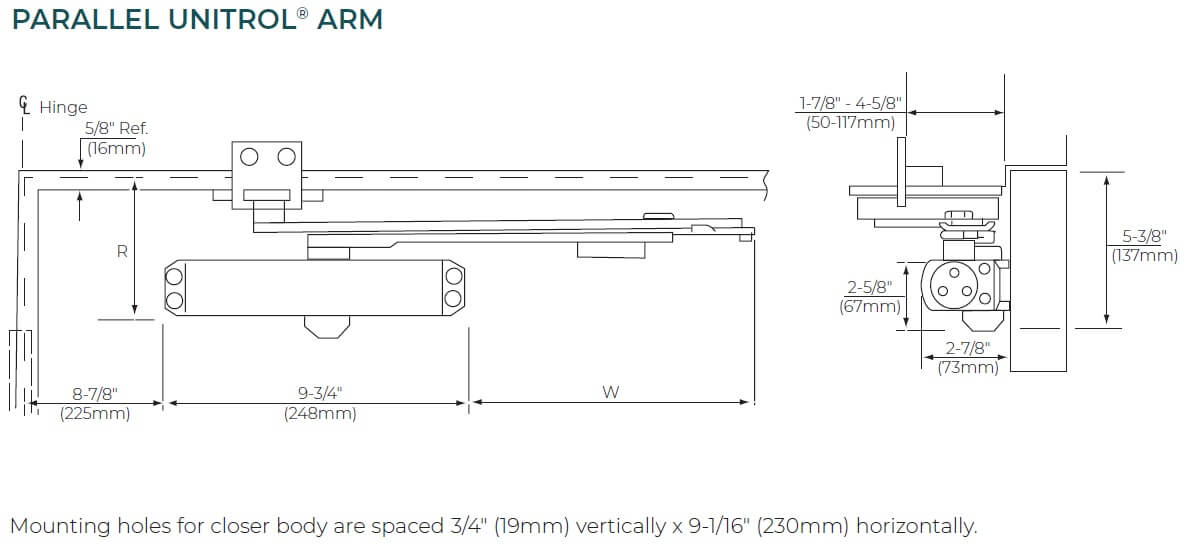

    • **Unitrol® Arm
      • Door closers shall have a fixed door stop feature effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop shall be cushioned by a shock-absorbing heavy-duty spring action effective at the [soffit plate] [arm shoe] pivot. [Closers shall be provided for parallel arm installation using rigid steel main arm and secondary arm lengths proportional to the door width.] [Closers shall be provided for top jamb installation using steel, rigid main arm and telescoping secondary arm adequate for the frame reveal of the openings.]

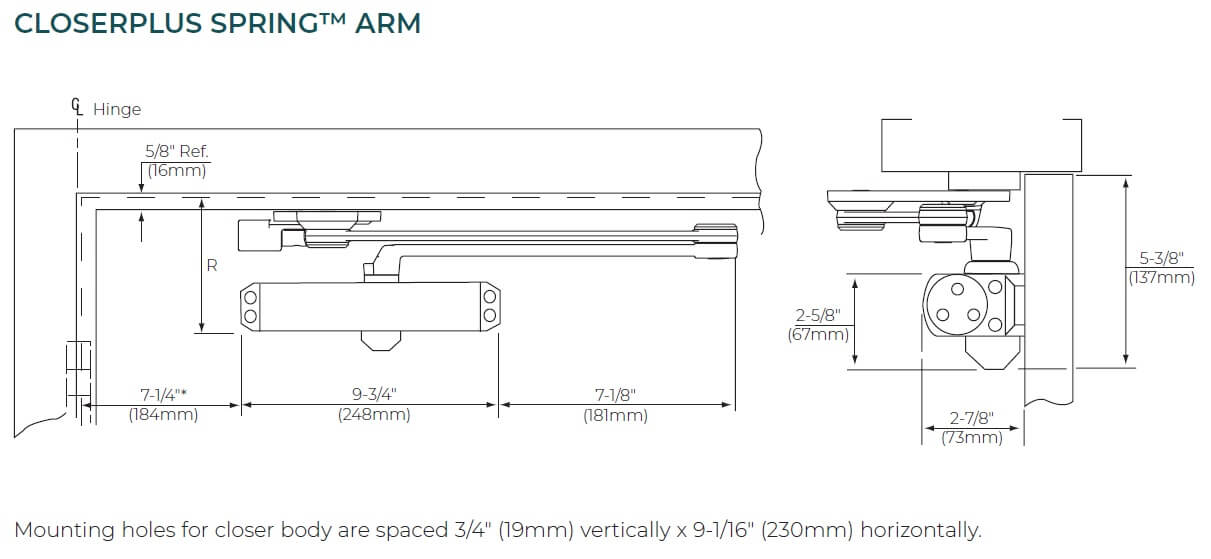

    • **CloserPlus Spring™ Arm
      • Door closers shall have built-in door stop [and holder] effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop mechanism shall be reversible and have a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. Door stop mechanism shall be attached to soffit plate. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers shall be provided for parallel installation using a forged rigid steel main arm and secondary arm.

    Benefits :

    • Constructed with robust materials and internal components
    • One package covers regular, top jamb, and parallel arm mounting
    • Staking limits ability to accidentally back out the valve while adjusting closer
    • Arm configurations meet broad range of applications
    • Complete offering of mounting plates and brackets to meet specific application needs
    • Stringent testing supports a long-life of reliability
    • Proprietary lubricate delivers optimal performance and efficiency

    Certifications:

    • ANSI/BHMA A117.1
    • ANSI/BHMA A156.4, Grade 1
    • Americans with Disabilities Act (ADA) Compliant
    • Environmental Product Declaration (EPD)
    • UL10C positive pressure up to 3 hours
    • UL-cUL listed
    • Manufactured in an ISO 9001 and ISO14001 facility

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 30-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton 1600BC, Door Closer, Surface Closer

      • Weight
        8.2 lbs
      • SKU
        NR-1601-691
    • QuickShip
      No
    • Manufacturer
      Norton
    • MPN
      1601
    • Optional Drop Plate
      No Drop Plate, Low ceiling clearance drop plate (1687), Overhead holder or narrow top jamb drop plate (1688), Parallel arm drop plate (used when optional cover is supplied) (1688C)
    • Description
      • Series
        Norton 1600 Series
      • Size
        Adjustable 1-6
      • Closer Performance
        Heavy Duty
      • BHMA Grade
        Grade 1
      • Arm Type

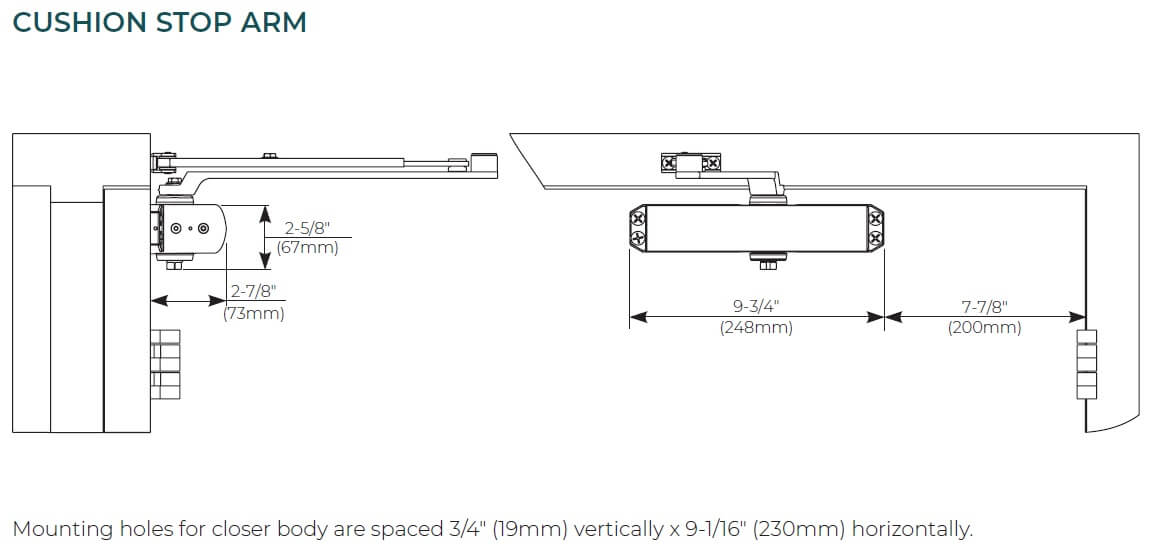

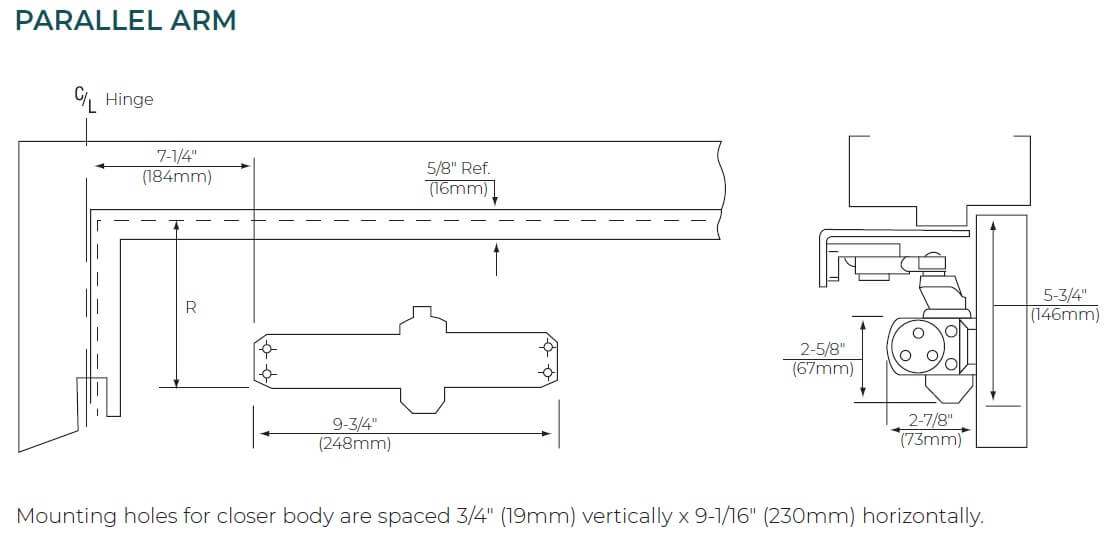

        Regular, parallel or top jamb to 3" reveal, Top jamb, reveals 2-3/4" to 7", Regular low profile arm, Parallel rigid arm (specify handing on note), CloserPlus® Arm, CloserPlus Spring™ arm, Unitrol® parallel arm (specify door width on note), Unitrol® top jamb arm (specify reveal on note), Cushion stop arm
      • Mechanism Type
        Rack and Pinion Design
      • Handing
        Non Handed
      • Closer Body Material
        Cast Aluminum
    • Closer Dimensions
      • Closer Projection
        2-7/8" Projection
    • Door Description
      • Door Weight
        Up to 250 Lbs.
    • Features
      • Function
        No Hold Open, Hold Open
      • Adjustable Spring
        Yes
    • Finishes
      • Finish

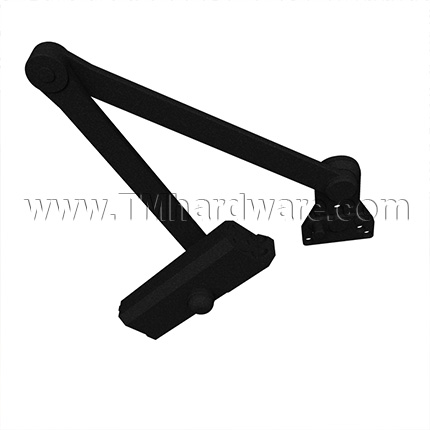

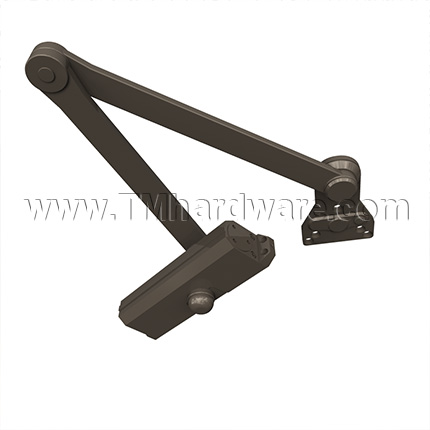

        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted Finish (693), Medium Bronze Painted (694), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        ADA Compliant, Buy American Act, UL 10C Positive Pressure up to 3 hours, Ul-cUL Listed, Environmental Product Declaration (EPD), Manufactured in an ISO 9001 and ISO 14001 certified facility
      • ANSI Designation
        ANSI/BHMA A156.4, Grade 1, ANSI/BHMA A117.1
      • Warranty
        30 Year Limited Warranty
