Pemko #3452 Door Bottom, 1.25" Aluminum Rain Drip Casing with .5" Rubber Fin Seal, Eco-V Vinyl Seal, 36" Length, Mill Finish Aluminum - QuickShip

Aluminum Door Bottom Sweep with Rain Drip Cap and Vinyl Fin Seal
Pemko Manufacturing

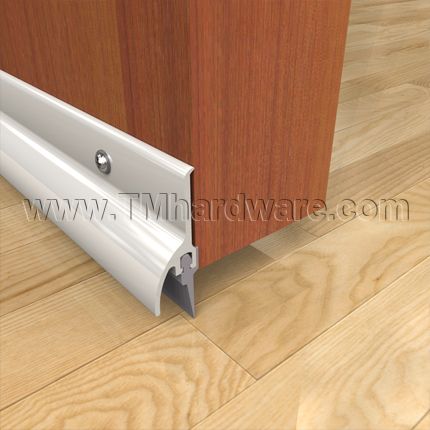

This door bottom sweep is a great addition to seal exterior doors or to protect the edges of interior doors. The high quality aluminum casing has a Rain Drip Cap which deflects water to prevent seepage through the gap under doors and protect the door from abuse. It is fitted with an Eco-V Vinyl Seal which reduces infiltration of fire, smoke drafts, moisture, air and dust.

For more options and finishes, See Our Pemko #3452 Door Bottom, 1.25" Aluminum Rain Drip Casing with .5" Rubber Fin Seal

PRICED PER PIECE.

Minimum purchase quantity: 2 units
See tabs below for additional information
    • SKU
      PK3452AV36-085647
    • Starting price: Price: $0.00 per item


    This door bottom sweep is a great addition to seal exterior doors or to protect the edges of interior doors. Made of high quality aluminum with an Eco-V Vinyl Seal. Available in Mill Finish Aluminum finish and 36" length.

    For more options and finishes, See Our Pemko #3452 Door Bottom, 1.25" Aluminum Rain Drip Casing with .5" Rubber Fin Seal

    Key Features Include:

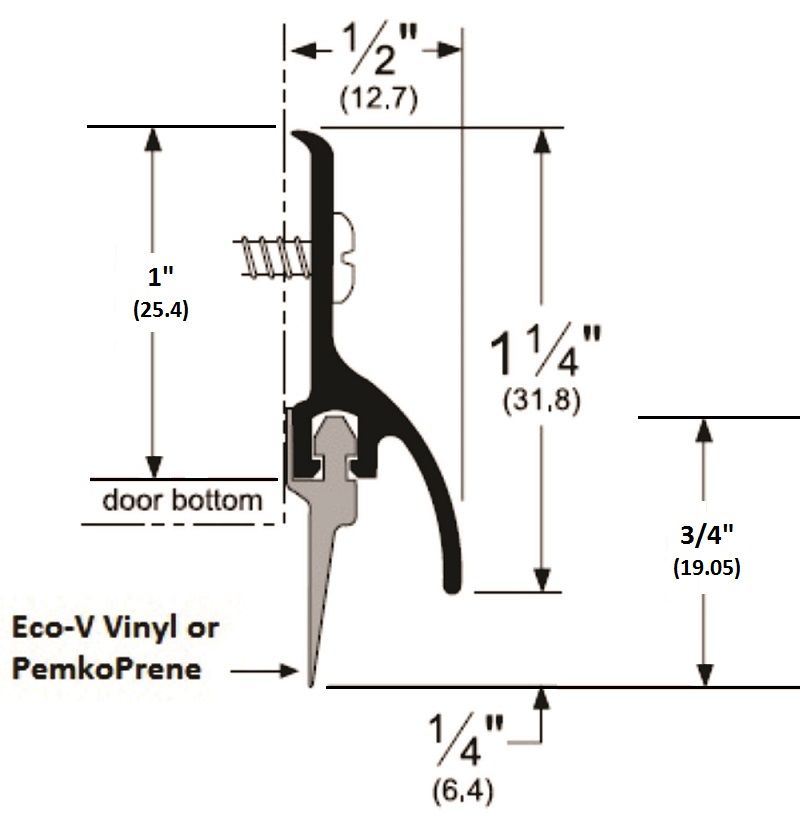

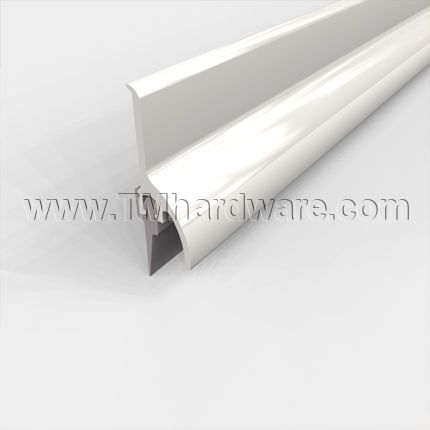

    Casing Design: This door bottom sweep is designed to be surface mounted to the face of an exterior or interior door. The casing extends approximately 1" along the height of the door. Casing is made of high quality aluminum that will withstand traffic abuse and continuously provide superior performance.

    Seals: Casing is fitted with Eco-V Vinyl Fin Seal. Eco-V is comparable to standard vinyl, however it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement. The seal extends .25" (1/4") past the rain drip cap, and can fill gaps up to .5" (1/2").

    Eco-V Vinyl remains flexible in extreme temperatures to ensure quality performance through all weather conditions.

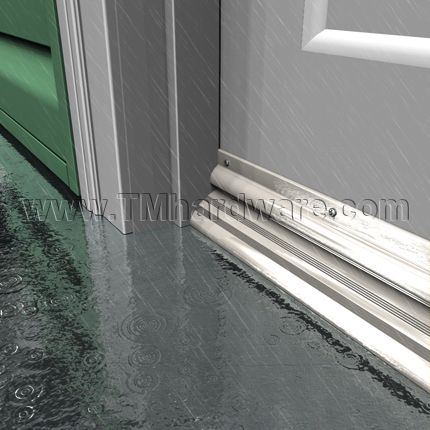

    Rain Drip Cap: Casing has a Rain Drip Cap which projects .25" (1/4") from the casing to deflect water and prevent seepage. Additionally, it protects the bottom of the door from traffic abuse.

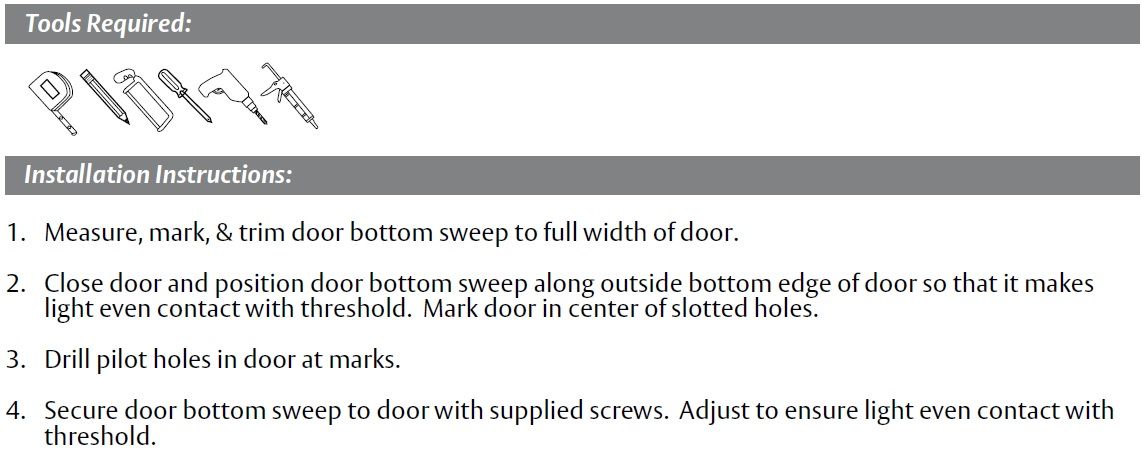

    Installation Guide and screws provided. Screws are colored to coordinate with the casing.

    Inserts: Aluminum Finishes are supplied with gray inserts.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5-year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    This product is also available with a brush seal, see our Aluminum Rain Drip Door Sweep with .82" Nylon Brush Seal.

      • SKU
        PK3452AV36-085647
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      3452AV
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Eco-Vinyl Rubber Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        3/4" Height
      • Total Height
        1-1/2" Height
      • Additional Dimensions
        Door seal is 1/2" thick
      • Length
        36" Length
    • Installation
      • Drill Holes
        Drill holes are provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified, BHMA Certified
      • ANSI Designation
        R3A534
      • Warranty
        5 Year Limited Warranty

    Click to View Ratings Explained

    Door Bottom Sweep with Eco-V Vinyl Seal:

    Smoke Rating for Door Bottom with Eco-V Vinyl Seal by Pemko     Fire Rating for Door Bottom Sweep with Eco-V Vinyl Seal by Pemko     UL Classification Rating for Door Bottom Sweep with Eco-V Vinyl Seal by Pemko     GreenGuard Gold Compliance for Door Bottom Sweep with Eco-V Vinyl Seal and Rain Drip Cap by Pemko

    Door Bottom Sweep with PemkoPrene Seal:

    Smoke Rating for Door Bottom with PemkoPrene Seal by Pemko     Fire Rating for Door Bottom Sweep with PemkoPrene Seal by Pemko     BHMA Certification for Door Bottom Sweep with PemkoPrene Seal by Pemko

    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
