TMH Rabbeted Threshold, 3.687" W Aluminum with Neoprene Gasket, Low Profile, .5" H - QuickShip

TMH Rabbeted Threshold, 3.687" W Aluminum with Neoprene Gasket, Low Profile, .5" H - QuickShip
Trademark Hardware

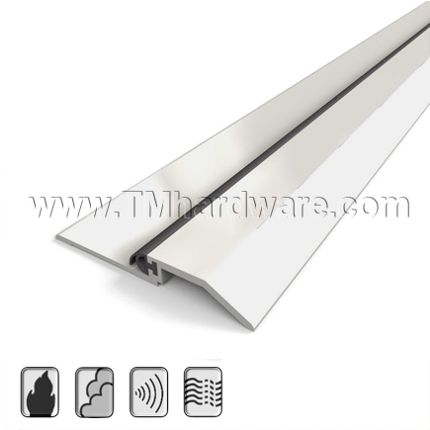

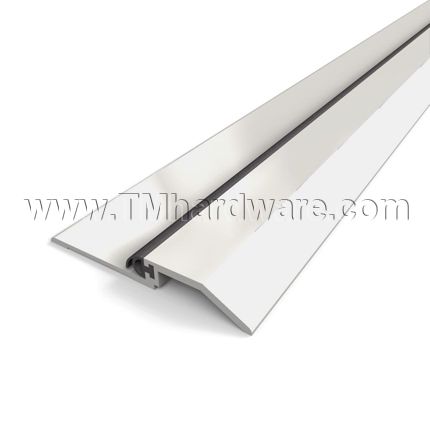

This low profile doorway threshold is fitted with a neoprene extrusion to provide a secure seal for sound at the bottom of doors. It is rated for sound, smoke, fire and air infiltration. The shoulder on this saddle works great in conjunction with our Automatic Door Bottoms. Available in Aluminum Mill Finish. Length is available in stock sizes.

PRICED PER ITEM - See full product details and specs in the tabs below

Available in stock sizes - 32" and 36" long ship within 1 Business Day! For custom sizes, see our Rabbeted Threshold, 5" W Aluminum with Neoprene Gasket, Low Profile #564

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      TH564A36
    • Starting price: Price: $34.00 per item
    In stock (37 items available)


    This is a QuickShip product, available in stock sizes only - for custom sizes see our full product Rabbeted Threshold, 5" W Aluminum with Neoprene Gasket, Low Profile #564

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

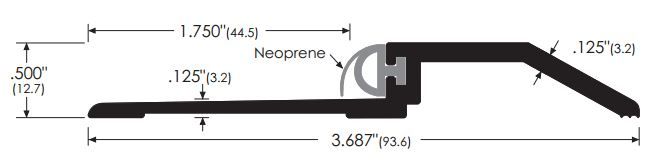

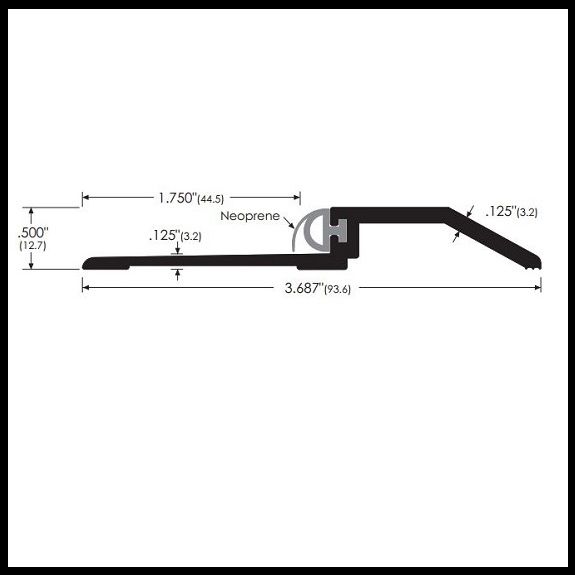

    Total Width: 3.687"

    Width Under Door: 1.75"

    Required Door Clearance: .375"

    Total Height: .5"

    Thickness: .125"

    Length: Available in stock lengths. Can be cut up to 2" on the field.

    Finish: Mill Finish Aluminum

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed, ADA / Wheelchair Compliance

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: This product is drilled at standard factory locations.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Click here to return to our Door Threshold homepage.

      • Weight
        4 lbs
      • SKU
        TH564A36
    • QuickShip
      Yes
    • Manufacturer
      Trademark Hardware
    • MPN
      564
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        3.687" Width
      • Required Door Clearance
        .375" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Threshold Complies with the Following ANSI / BHMA Codes:

    • Standard Aluminum: J36300
    • Threshold has passed the ANSI Standard Load Test

    SHIPPING / PROCESSING TIME:

    This product is part of our QuickShip line and will ship within 1 business day

    If out of stock, shipping may take up to 2 weeks, call to confirm stock.
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This products can be returned up to 30 days from date of purchase.
      • Custom cut item are not returnable
      • Item must be in new, resalable condition. No restock fee will be applied.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
