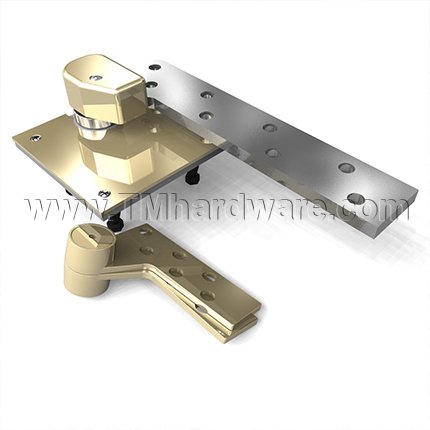

Rixson L147, Door Closer Pivot, Pivot Set, Lead Lined, Heavy Weight

The L147 Door Pivot for Door Closer, is a heavy-weight pivot set designed for heavy-duty interior and exterior doors and can support doors with up to 800 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson L147, Door Closer Pivot, Pivot Set - QuickShip

Features:

• Exterior or interior door
• Lead-lined, heavy, high traffic doors
• Weight to 800 lbs.
• Door width up to 4'0" (1219mm)
• Handed
• L180 top pivot included
• ML19 intermediate pivot required (sold separately)
• Door edges must be beveled 1/8" in 2"
• Bottom pivot mounts directly to floor
• Doors with lead lining under the skin should also use this product.
• Screw holes in top pivot and bottom arm spaced to straddle lead lining in the middle of the door
• Doors will swing 180°, trim permitting
• Non-ferrous base material

Optional Features

• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard  (please state on the note)

PRICED PER SET

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view Rixson 147, Door Closer Pivot, Pivot Set,  Standard-Duty
