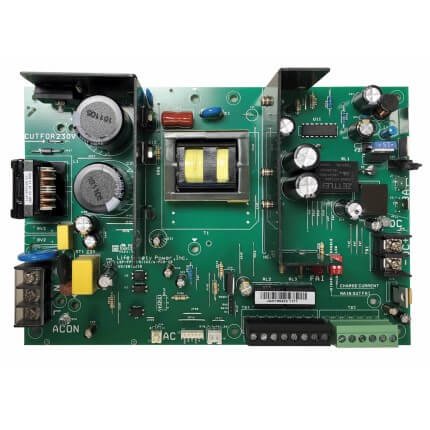

Securitron AQL102 Series Intelligent Power System

Name: Securitron AQL102 Series Intelligent Power System
Brand: Securitron
SKU: SC-AQL102

Securitron AQL102 Series Intelligent Power System, 10 Amp at 12 VDC, Single Voltage Power Supply Only

The Securitron AQL102 Series Intelligent Power System of single voltage switching power supply, which is UL approved, has a dedicated quick battery charging circuit and can support up to 16 outputs with 10 Amps at 12 VDC. Available with optional (B100) multi-voltage factory or field setup and (NL4) network monitoring and control.

PRICED PER UNIT

See tabs below for additional information

Quantity

Add to compare

Features:

Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
LockSafe™ keeps locks cooler by providing a separate, dedicated battery charging circuit
OutSmart™ technology dual-color LED notification which prevents incorrect voltage application to locking devices [Green: 12 V | Blue: 24 V
Auxiliary output rated 1.4 A continuous
Mix and match UL Listing
Instant auto-switch to battery on AC loss
Multi-voltage with B100
Integrated Fire Alarm Interface (FAI) allows main output shutdown or disconnect on a per output basis when using an R8 output module
Network ready with optional Netlink™ module

Specifications:

Operating Temperature: 32˚ to 120˚ F [0˚ to 49˚ C]
Electrical:
- 12 VDC or 24 VDC output
- 12 VDC & 24 VDC output (optional) with B100
- 120 or 230 VAC input
- Up to 91% efficiency

Certification:

UL 294 Listed
UL 603 Listed
UL 1076 Listed
ULC-S318 Listed
ULC-S318 Listed
CSA C22.2 #107.1
RoHS Compliant

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view our Securitron AQL6 Series Intelligent Power System

- SKU
  SCAQL102
QuickShip
No
Manufacturer
Securitron
Model
(AQL102) Single Voltage Power Supply Only, (AQL102-E1) Single Voltage Power Supply with E1 Enclosure
Compliance Details
- Compliance Details
  UL 294 Listed, UL 603 Listed, UL 1076 Listed, ULC-S318 Listed, ULC-S319 Listed, CSA C22.2 #107.1, RoHS Compliant
- Warranty
  Lifetime Limited Warranty

Securitron AQL Series Intallation Guide 3.9 MB
