Vision Kit VLFS10SP, Security and Detention Frame with Speaker, 1" - 3" Doors, Glass up to 1-11/6", up to 4' x 4'

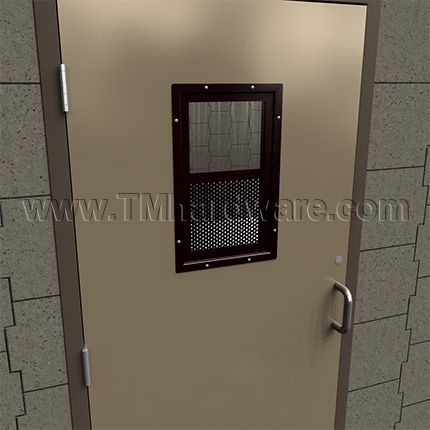

Activar Vision Lite Frame VLFS10SP model is a Heavy Gauge Vision Lite with a Perforated Speaker Panel, compatible with 1/4” -1-11/16” thick glazing (glass not included). This frame is perfect for use in Institutional, Detention, and Prison applications, where high security is needed. Lite kit is for wooden or metal doors 1-3" thick. Available in many sizes and finishes.
PRICED PER PIECE - See product details and specs below

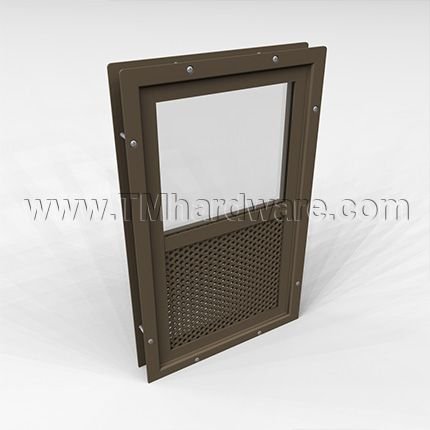

This Activar VLFS10SP vision lite kit has a speaker port which allows sound to travel through the door while still maintaining high security performance. Vision Lite frame is for 1/4” - 1 11/16” thick glazing.
Material: 10 gauge CRS frame and 10 gauge perforated steel speaker panel with staggered holes. Includes dual offset baffle of 22 gauge CRS.
Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.
- Available widths: 5" - 36"
- Available lengths: 4" - 72"
How to Order: Orders size is the Door Cut-out Dimensions. See product specs for details.

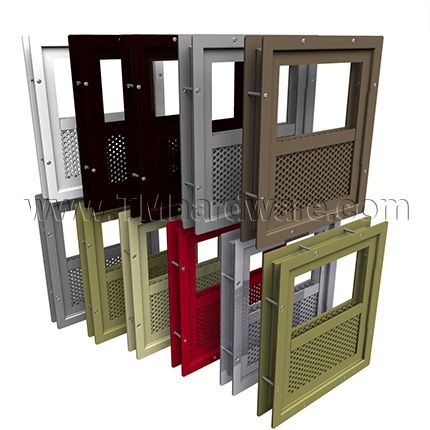

Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes.

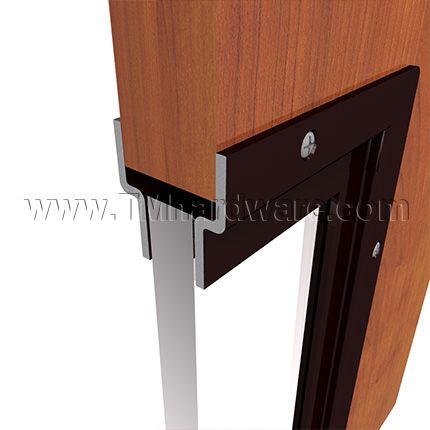

Construction: 1-1/4” trim with mitered and welded corners, countersunk mounting holes both sides, and 1” wide glazing retainer
Door Type: For 1 to 3” thick door, Standard Door Thickness available through our site, select in the options above. For other door thicknesses please call our office.
Fasteners Included: #8 x 32 Torx head security binder bolt with blank head one side, to match finish
Baffle: Frame includes a dual offset baffle which reduces the chance of liquid pass-through but still allows sound to travel.
Glass Compatibility: 1/4” - 1 11/16” glazing to be ordered separately. Standard Glazing Thickness available through our site, select in the options above. For other glazing thicknesses please call our office. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2-1/2” under rough opening size. Specify glass above. Glass is 1/4” under order size. If glazing is being provided by a supplier other than Air Louvers, coordinate with the supplier to ensure compatibility with IG kits.
Air Louvers Glazing to fit this vision frame: WS, KFRF, PPF, KFRL, KFRFU, CONTRA45, CONTRA 60, 90, ARMRSHIELD, LGSHIELD.
Please note, glazing material is not supplied with this frame, and can be purchased separately through our site.
Compliance Details: When installed in properly rated and approved door, ratings up to 90 minutes can be achieved for model VLFS10 only, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. Speaker panel not fire, or pressure-rated.
Additional Options: Custom options are available, please contact us for details and pricing.
- Optional Materials
- Galvanized Sheet for Exterior Applications
- Electro Zinc Plating for Maximum Corrosion Resistance.
- Add a privacy screen to This Vision Lite, see our Privacy Screen for Vision Lite Frames
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year gurantee against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click to view all our Lite Kits.
-
QuickShipNo
-
ManufacturerActivar Air Louvers
-
MPNVLFS10SP
-
Size (W" x H")5" W x 20" H, 5" W x 35" H, 6" W x 24" H, 6" W x 26" H, 6" W x 27" H, 6" W x 30" H, 6" W x 36" H, 7" W x 22" H, 8" W x 18" H, 8" W x 30" H, 8" W x 32" H, 8" W x 36" H, 12" W x 12" H, 18" W x 32" H, 24" W x 24" H, 24" W x 30" H, 24" W x 32" H, 24" W x 34" H, 24" W x 36" H, 24" W x 60" H, 24" W x 64" H
-
Door Thickness1" Thick, 1 3/4" Thick, 1 3/8" Thick, 1 1/2" Thick, 2" Thick, 2 3/4" Thick, 2 3/8" Thick, 2 1/2" Thick, 3" Thick
-
Glazing Thickness1/4" Thick, 1/2" Thick, 11/16" Thick, 3/4" Thick, 1" Thick, 1 1/4" Thick, 1 1/2" Thick, 1 11/16" Thick
- Finishes
-
FinishMineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, Sand Powder Coat, SC Beige Powder Coat, White Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), Brass Powder Coat
-
