Zero #568 Rabbeted Threshold, 6" (W) Aluminum with Neoprene and Grip Saddle, .5" H
This item has an extended lead time of 9 weeks - for a similar item see our Legacy Rabbeted Threshold

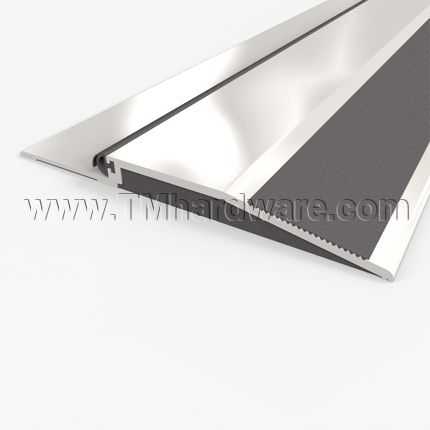

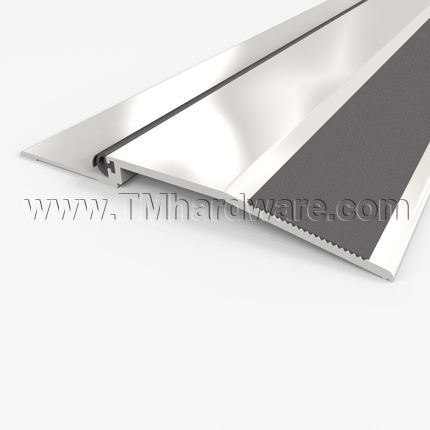

This Zero #568 sturdy, 6" aluminum, bumper threshold is fitted with a neoprene gasket designed to provide a solid seal against smoke, drafts, dust, insects, and water infiltration. Grooves in the saddle prevent slipping. Options of epoxy abrasives or full body strength are available. Length is custom cut to size.
PRICED PER FOOT

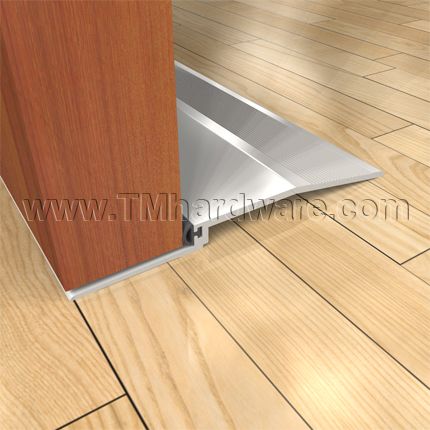

Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.
Total Width: 6"
Width Under Door: 1.75"
Required Door Clearance: .25"
Total Height: .5"
Thickness: .125"
Length: Custom cut to size
Compliance Details: Fire Rated
Seal: Solid Neoprene EBF. The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.
Drilling: This product is drilled at standard factory locations.
Additional Options Include:
- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
For a solid brass version, click here to see our Zero #567 Brass Threshold with Neoprene Seal.
-
QuickShipNo
-
ManufacturerZero International
-
MPN568

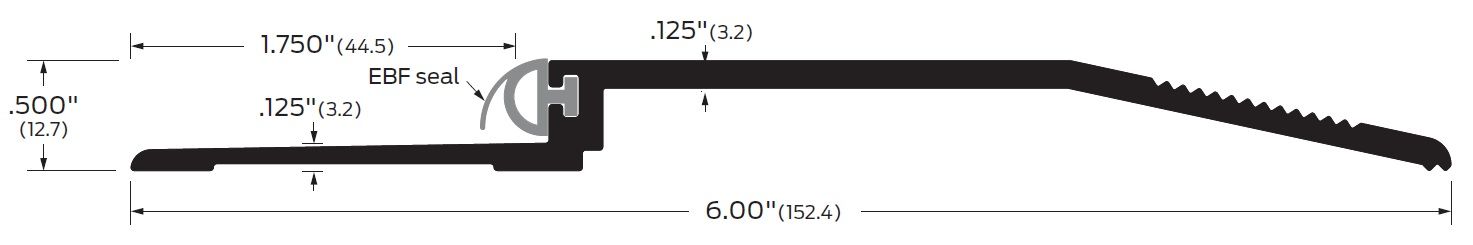

- Dimensions
-
Overall Height.5" Height
-
Overall Width6" Width
-
Interior Width1.75" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.25" Height
-
Thickness.125" Thick
-
- Product Design
-
Threshold TypeRubber Seal / Bumper Threshold
-
Seal TypeNeoprene Seal
-
MaterialAluminum
-
- Finishes
-
FinishMill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
-
- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationJ36100, J36200
-
Warranty1 Year Limited Warranty
-
