Pemko #405 Automatic Door Bottom, Residential Spring Loaded with 1.375" Vinyl Seal

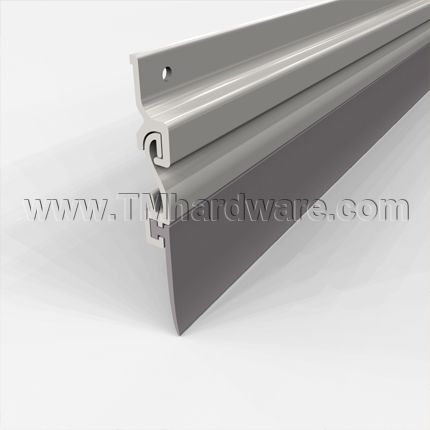

Seal your doors from the elements and conserve energy with this spring loaded automatic door bottom for residential doors. It has a sleek design and is available in many finishes to match home decor. Comprised of an aluminum retainer with a 1.375" vinyl seal.

PRICED PER ITEM

Available in 36" Length - Can be cut down in the field up to 24".

See tabs below for additional information

Quantity

Add to compare

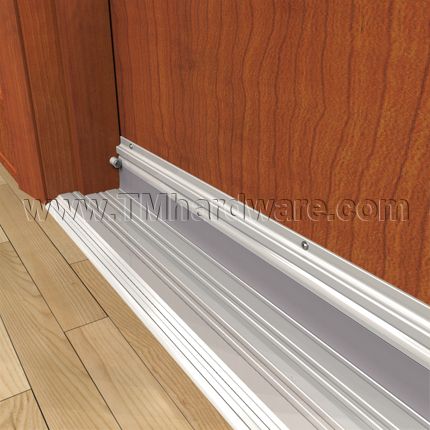

How it Works: The door bottom is comprised of a .875" aluminum retainer which snaps closed when it comes in contact with the actuation button. The actuation button is fastened to the stop of the door. As soon as the door is opened, the seal is raised to ensure a smooth opening, even over carpeted areas. It is recommended that this product be used in conjunction with a doorway threshold.

Installation: Installation instructions and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Please click here to view our full Warranty Policy.

Click here to return to our Brush Door Bottom Sweep Category Page.

- SKU
  PK405CV36
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
405V
Product Design
- Mounting Type
  Surface Mounted
- Door Type
  Wooden Door, Hollow Metal Door
Dimensions
- Casing Dimensions

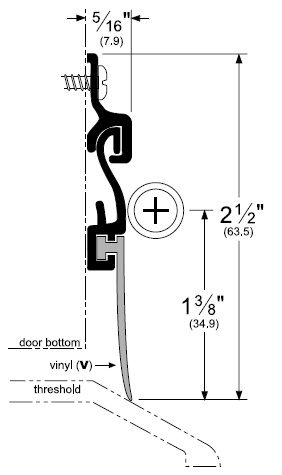

  Door bottom measures .313" W x 2.5" H x 36" L. Can be cut down to 24" in the field.
- Length
  36" Length
- Drop Size
  Up to .75" Drop
Installation
- Handing
  Non-Handed
- Installation Screws
  Installation Screws Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
Compliance Details
- Compliance Details
  Fire Rated, UL Classified, GreenGuard Gold Certified
- Warranty
  5 Year Limited Warranty

Click to Print

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
Painted White Aluminum - 714
