Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4" x 4"

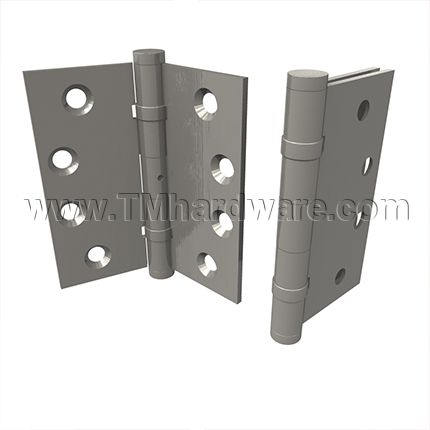

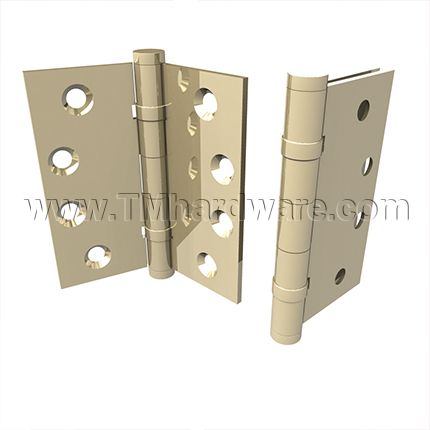

Deltana DSB4B is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge. It's made of Solid Brass. Size of hinges is 4" X 4" Square Corners and Button Tip Finials. Available in choice of finishes.
PRICED PER PAIR - See full product details and specs in the tabs below
Deltana DSB4B is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge. It's made of Solid Brass. Size of hinges is 4" X 4" Square Corners and Button Tip Finials. Available in choice of finishes.
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finials and Button Tip options available.
Priced Per Pair

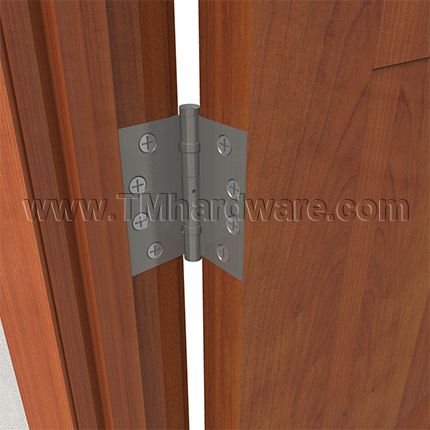

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For larger hinges, see our Deltana Residential, Full Mortise, Plain Bearing, Solid Brass Hinge, with a Staggered Hole Pattern 4" x 4" DSB4-RZ
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDSB4B
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin, Non-Removeable Pin (NRP)
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-

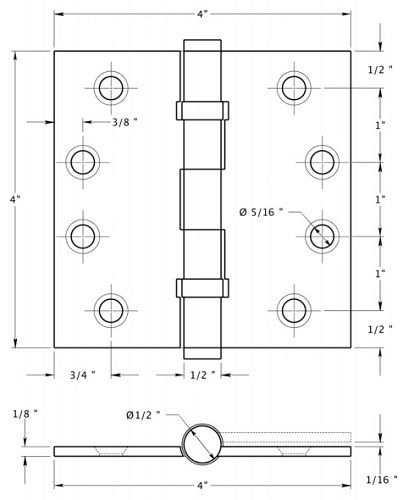

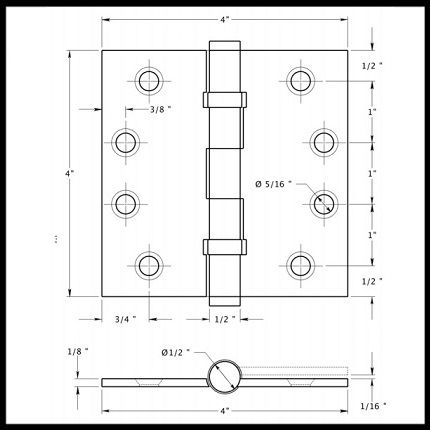

- Dimensions
-
Hinge Size4" x 4"
-
Hinge Thickness.129" Thick
-
- Installation
-
Door TypeWooden Door
-
Installation ScrewsWooden Screws #12x1-1/4" Provided
-
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Unlacquered Brass (US3NL), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Antique Nickel (US15A), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
All finishes comply with BHMA / ANSI Codes
- Polished Brass US3 / 605
- Unlacquered Brass US3-UNL / 605
- Antique Brass US5 / 609
- Oil-rubbed Bronze US10B / 613
- PVD Polished Brass CR003
- Polished Nickel US14
- Brushed Nickel US15 / 619
- Antique Nickel US15A / 620
- Polished Chrome US26 / 625
- Brushed Chrome US26D / 626
