Pemko #314 Door Sweep, Aluminum Track with EPDM Bulb Seal, .75” Clearance

Pemko #314 Door Sweep, Aluminum Track with EPDM Bulb Seal, .75” Clearance
Product Specs of Door Bottom 314 Door Sweep, Aluminum, EPDM, .75” Clearance Clear Anodized Aluminum Effectively seals beneath-the -door gaps Dark Bronze Anodized Effectively seals beneath-the -door gaps Gold Anodized Aluminum Effectively seals beneath-the -door gaps

Keep out unwanted elements and save money on utility bills by sealing beneath-the-door gaps with this Door Bottom Sweep. It is mounted to the underside of the door and effectively inhibits the passage of dirt, drafts, insects, light , and sound under the door. Comprised of an aluminum track and an EPDM Bulb seal, and is available in three anodized aluminum finishes. Custom cut to size.


Market price: $12.48
save 15%
Price: $10.61
Size (Inches)
Save to wishlist
Shipping See Shipping Tab Below

Close the gap between your door and threshold with a door sweep to effectively prevent infiltration of drafts, moisture, dust, insects, and light. Door seals greatly improve energy efficiency and can save you money on utility bills. Available in three aluminum finishes and is custom cut to size.

Key Features Include:

Seal: This Door Bottom is fitted with an EPDM Bulb Seal. EPDM is comparable to Neoprene Rubber but is more environmentally friendly and has overall better performance than neoprene. EPDM has great soundproofing properties and is resistant to solvents.  The seal has great compression properties, is very flexible in all weather conditions and conforms to surface irregularities.

Casing: This Door Bottom Track is made of high quality Aluminum.

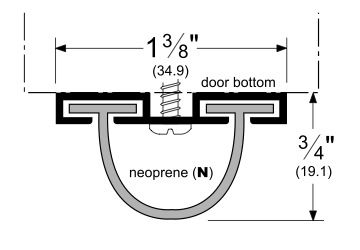

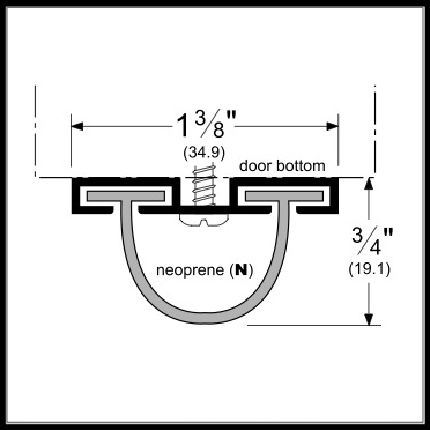

Dimensions: Casing measures 1.375” wide and the seal fills gaps of up to .75”. Seal can compress to close smaller gaps as well. See product specs.

Finishes: Available in Clear Anodized Aluminum, Dark Bronze Anodized Aluminum, and Gold Anodized Aluminum.

A note on Finishes: Anodizing is an electrolytic process that applies a corrosion and wear resistant coating to the aluminum for longer wear and color maintenance. Anodized aluminum has a durable surface that will not peel, chip or flake and has easy maintenance.

Installation: Door must be removed to install this door bottom sweep.

  • Anodized Aluminum Door sweep
  • EPDM Rubber Seal
  • Mounted on underside of door
  • Improved energy efficiency
  • Fills gaps up to .75"
  • Custom Cut to Size

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our
Full Warranty Policy.

This product can also be applied as a Meeting Stile, see our Meeting Stile, 1.375" Aluminum Track with EPDM Bulb Seal, .75" Clearance

Product Specs

Click to Print


P314DB Product Specs:

Door Sweep, Aluminum Track with EPDM Bulb Seal, .75” Clearance


Click to Print


P314DB Installation Guide:

Door Sweep, Aluminum Track with EPDM Bulb Seal, .75” Clearance

Compliance Details

Finishes Comply with the Following ANSI / BHMA Codes:

  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
