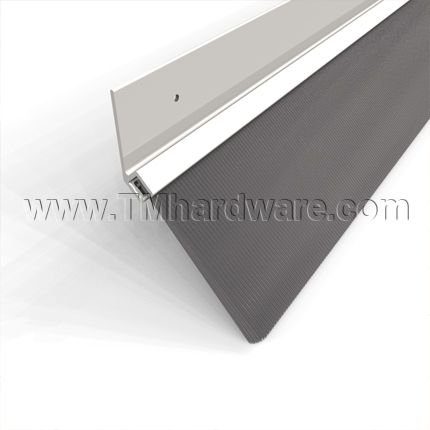

Pemko #45250 Door Gasket and Sweep, Aluminum with 2.5" Angled Brush
This Door Gasket and Bottom Sweep is supplied with an 45º angled flange which provides the best contact between the seal and the floor surface or door jamb. It has a high quality 2.5" brush seal which can seal up to 1.75” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in a choice of aluminum finishes and is custom cut to size.
PRICED PER FOOT.

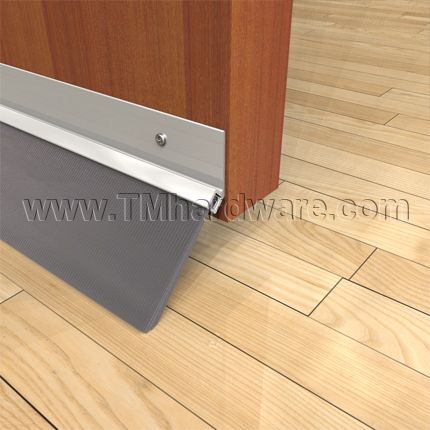

This multi-usage fire and smoke rated door bottom sweep can be applied to both wood and metal doors. It can be used on overhead, sectional, sliding and automatic doors.

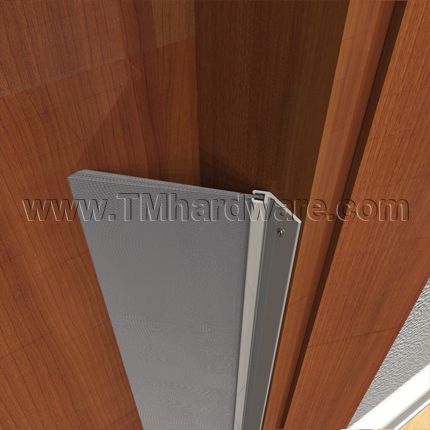

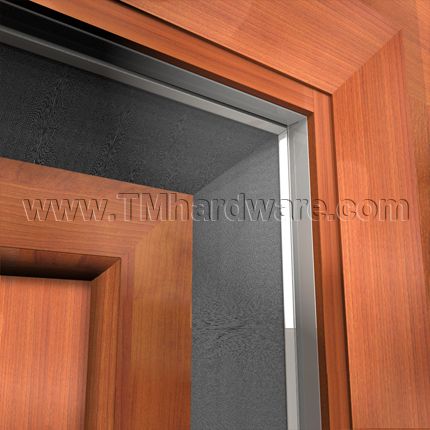

The door seal is supplied with a 45º angled flange which provides ideal contact between the seal and the floor surface beneath it or the door jamb. It is fitted with a row of 2.5" high quality dense nylon filaments which can seal up to 1.75” gaps. They conform well to the contours of many sealing surfaces, which provides a superior seal with extremely low closing force. The nylon brush remains flexible in weathers down to -40ºF and over 400ºF. The casing is punched with elongated slots which allow for easy adjustment once installed.
Installation instructions and screws provided.
Brush Inserts: Clear Anodized is supplied with a grey insert and Dark Bronze is supplied with a black insert. Other combinations can be requested. Contact us or call us at 845-388-1300 to place a request.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a larger brush size, see our 4” Angled Brush Door Gasket and Bottom Sweep.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN45250NB
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-40ºF to +400ºF
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-

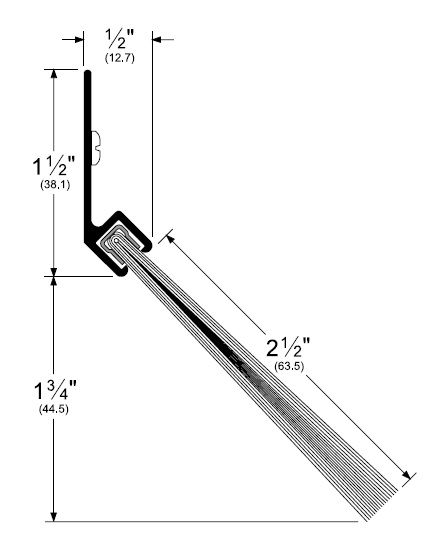

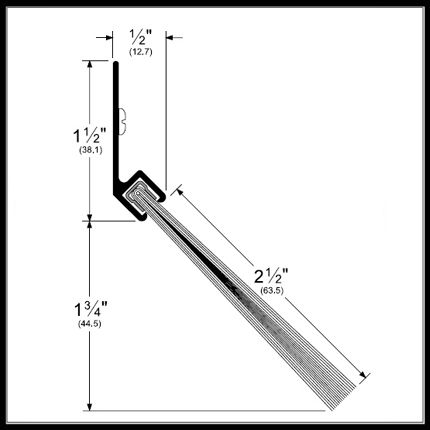

- Dimensions
-
Seal Height1 3/4" Height
-
Total Height2-1/4" Height
-
Additional DimensionsSeal is a 2-1/2" angled nylon brush set on a 45º Angle
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, BHMA Certified, UL Classified
-
ANSI DesignationR3A164
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Note, this rating applies only when product is used as a door gasket.
Finishes Comply with the Following ANSI / BHMA Codes:
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Gold Anodized Aluminum - US4 / 688
