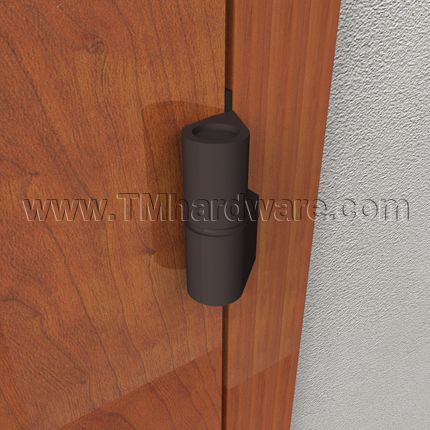

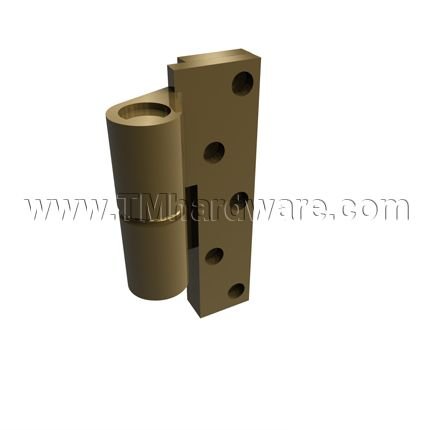

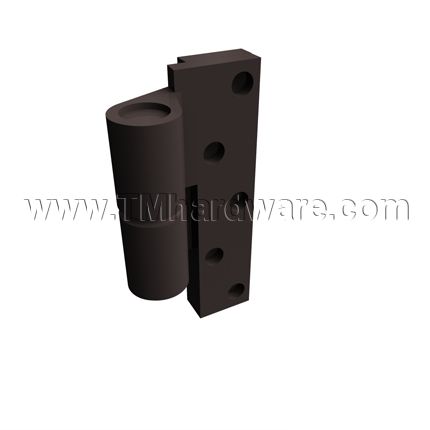

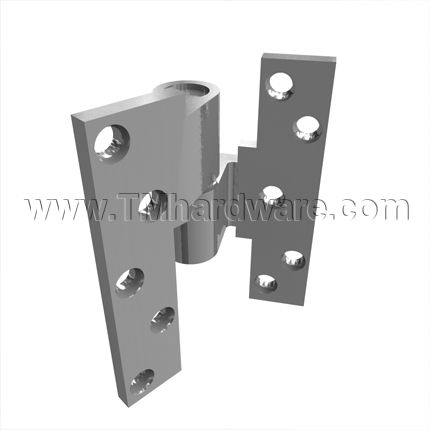

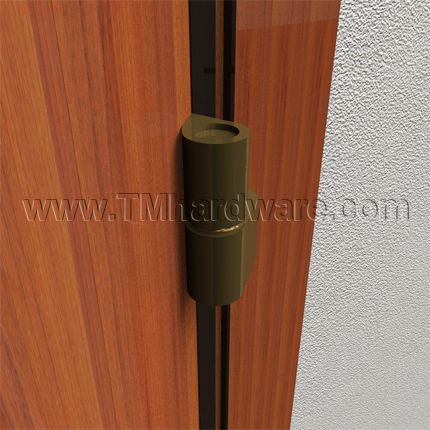

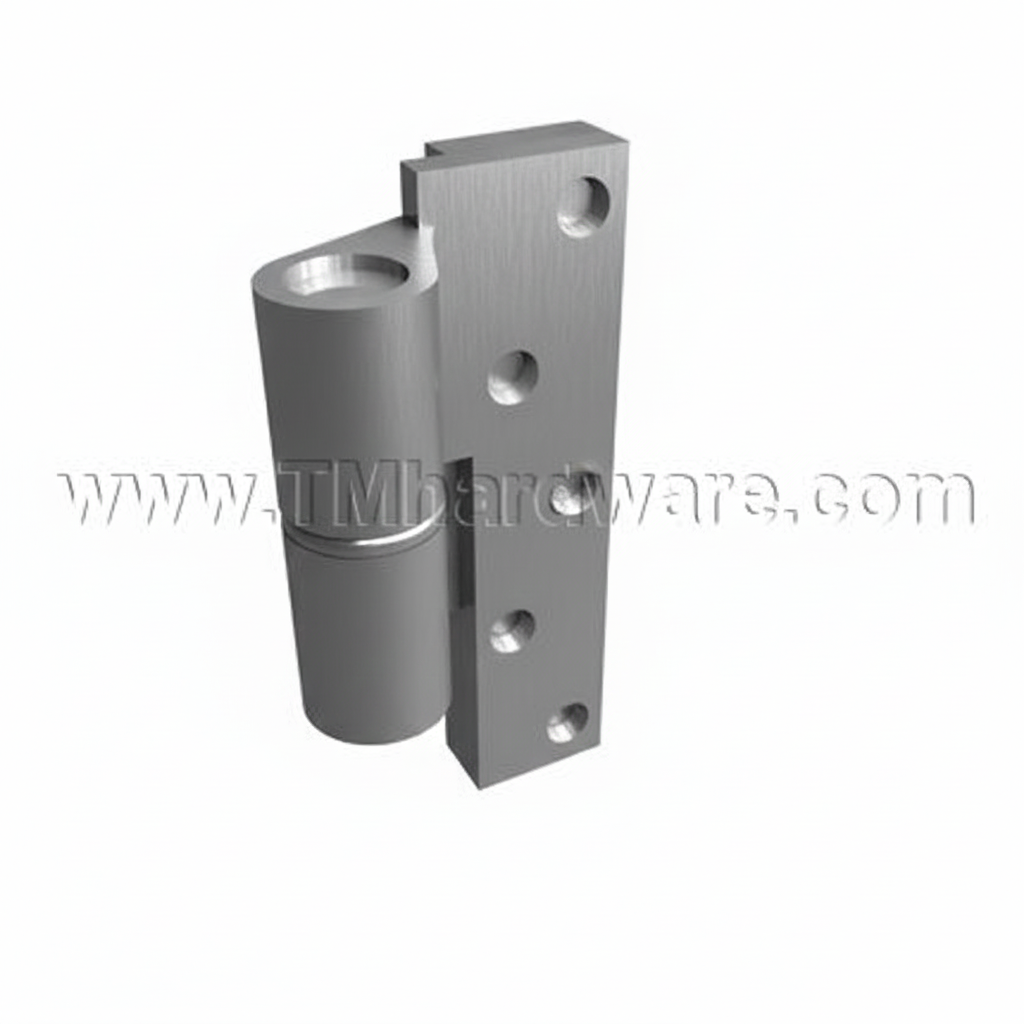

Hager 496, Ball and Thrust Bearing, 2 Knuckle Intermediate Pivot
Mortised architectural two knuckle intermediate pivot, by Hager Companies. Ball and thrust bearing and heavy weight. This product is handed, choose from the dropdown below. Made of forged bronze and satin chromium plated finish. This hinge is the middle pivot in a set of three pivots. This middle pivot should be used in conjunction with the top pivot, H495 and bottom pivot, H497 for doors up to and including 3' x 8', weighing maximum of 350 lbs.
PRICED PER PIECE - See full product details and specs in the tabs below
See Hager Hinges Color Chart for a detailed list of Hager finishes.
This high quality Architectural hinge, manufactured by Hager Companies, is a mortised, heavy weight, ball and thrust bearing intermediate pivot with two knuckles.
-
Ball and Thrust Bearing: Ball thrust bearings are composed of ball bearings in a ring, are designed to manage thrust (axial) loads and provide high shock load resistance in a variety of applications. Ball thrust bearings provide optimum performance in high speed applications, particularly where loads are generally lighter.
-

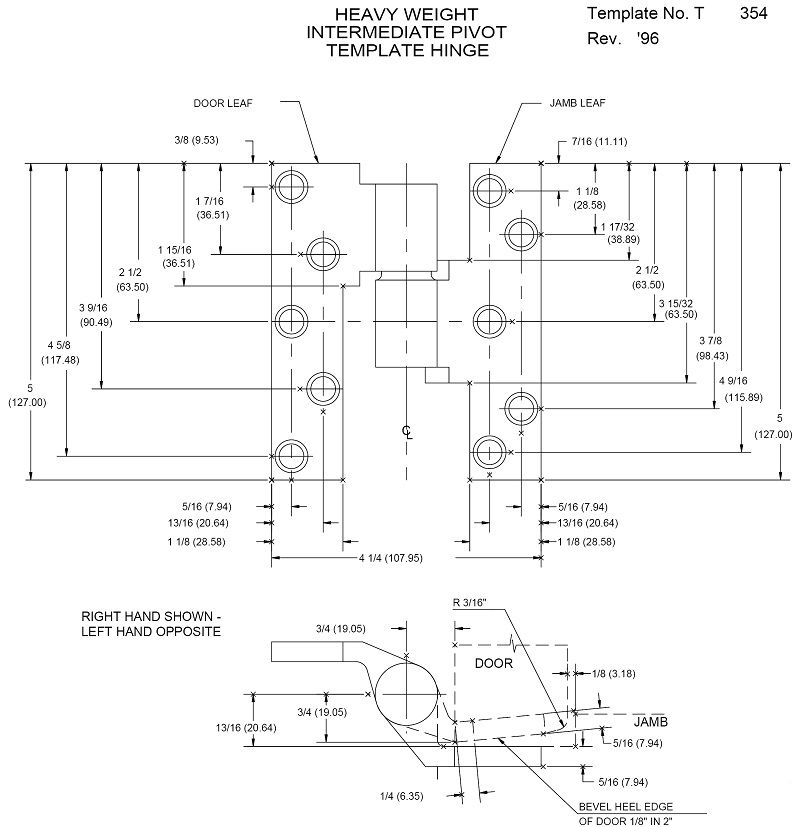

Hinge Information: (chart)
Hole Count | Screw Size | |
Machine | Wood | |
10 | 3/4 x 1/4-20 | 1-1/4 x 14 |
-
Finish: Satin Chromium Plated ( Finish complies with BHMA Standards. See Products Data Tab.)
-
Materials: Forged Bronze.
-
This hinge is the two knuckle intermediate pivot in a set of three pivots. This intermediate pivot should be used in conjunction with top pivot, H495 and bottom pivot, H497 for doors up to and including 3' x 8', weighing maximum of 350 lbs
-
For doors over 3'6" up to 4' in width, add one intermediate pivot, H496.
-
For each additional 12" in door height over 8', add one intermediate pivot:, H496.
-
3/4" offset
-
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
-
Handing: This hinge is handed. Don't know if your door is right or left handed? See How to Determine Handing.
-
May be used on listed fire rated or labeled door openings.
-
Installation screws provided.
-
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
