Hager 497, Ball and Thrust Bearing, Bottom Pivot

Hager 497, Ball and Thrust Bearing, Bottom Pivot
0.0

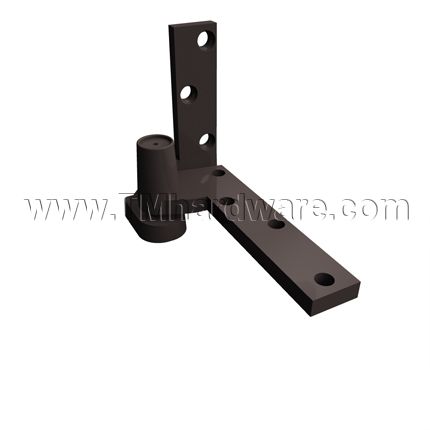

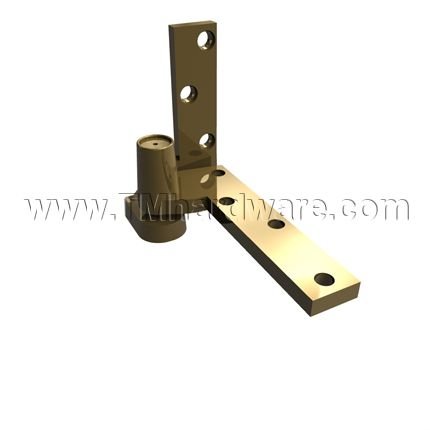

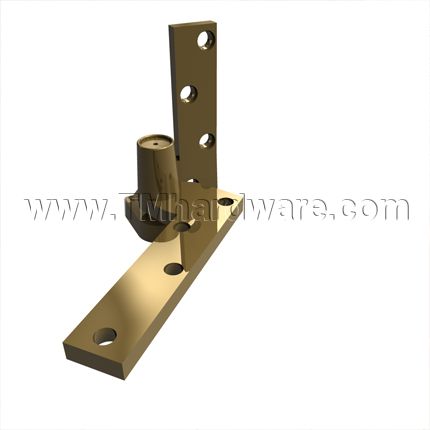

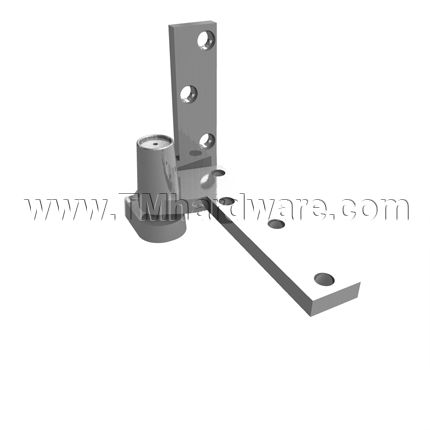

Mortised architectural bottom pivot, by Hager Companies. Ball and thrust bearing and heavy weight. This product is handed, choose from the dropdown below. Made of forged bronze and available in three finishes, choose from the dropdown below.

This hinge is the bottom pivot in a set of three pivots. This middle pivot should be used in conjunction with the top pivot H495, and middle pivot, H496, for doors up to and including 3' x 8', weighing maximum of 350 lbs.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for a detailed list of Hager finishes.

Market price: $564.80
save 50%
Price: $282.40
Finish
Handing
Qty
Save to wishlist
Made in USA
SKU H497_1257
Options Left Handed, Right Handed
Shipping See Shipping Tab Below
Description

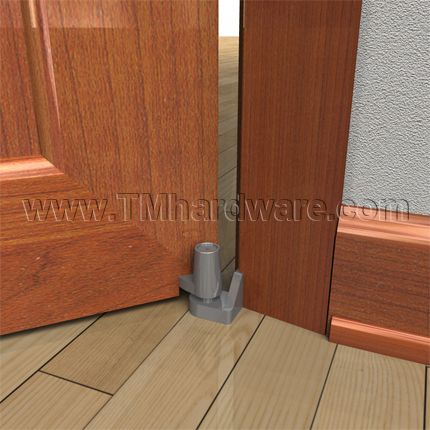

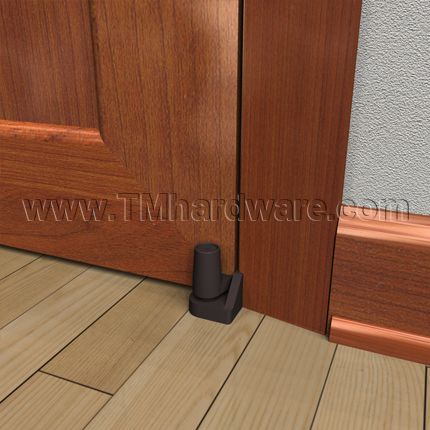

This high quality Architectural hinge, manufactured by Hager Companies, is a mortised, heavy weight, ball and thrust bearing bottom pivot.

  • Ball and Thrust Bearing: Ball thrust bearings are composed of ball bearings in a ring, are designed to manage thrust (axial) loads and provide high shock load resistance in a variety of applications. Ball thrust bearings provide optimum performance in high speed applications, particularly where loads are generally lighter.

  • Hinge Information: (chart)

Hole Count Screw Size
  Machine   Wood
  8   3/4 x 1/4-20   1-1/4 x 14
  • Variety of Finishes Available: Satin Bronze; Satin Chromium Plated; Stainless Steel Metal, Satin (All finishes comply with BHMA Standards. See Products Data Tab.)

  • Materials: Forged Bronze.

  • This hinge is the bottom pivot in a set of three pivots. This bottom pivot should be used in conjunction with top pivot, H495 and intermediate pivot, H496 for doors up to and including 3' x 8', weighing maximum of 350 lbs.

  • For doors over 3'6" up to 4' in width, add one intermediate pivot: 496.

  • For each additional 12" in door height over 8', add one intermediate pivot: 496.

  • 3/4" offset

  • Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

  • Handing: This pivot is handed. Don't know if your door is right or left handed? See How to Determine Door Handing.

  • May be used on listed fire rated or labeled door openings.

  • Installation screws provided.

  • Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.

Click here to view a Brass 5" Hinge.

To view all Hager pivots, see How to Choose an Architectural Pivot Hinge.

Product Data
Compliance Details

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard A156.18:

  • Satin Bronze-US10
  • Antique Bronze Oiled-US10B
  • Satin Chromium Plated-US26D

Hinge complies with ANSI AC07131.
