Blum Cabinet Hinge 71B7580, CLIP Top BLUMOTION, 155° Opening, Press-In Installation - Quick Ship

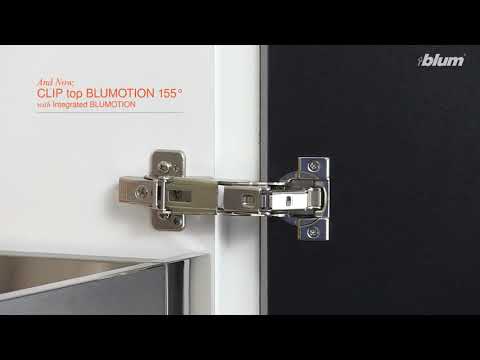

This model is a zero protrusion cabinet hinge that allows for a 155° door opening angle. The hinge is compatible with all current mounting plates (not included) and features press-in installation. Engineered with CLIP technology, cabinet doors with CLIP top hinges can be attached and removed quickly without tools. With the BLUMOTION function built into the hinge cup, the cabinet door closes softly and quietly regardless of its size, weight or the force with which it was closed. The hinge has a full overlay cabinet application and a straight arm configuration.

Ships within 1 business day!

PRICED PER PIECE

See tabs below for additional information
    • Weight
      0.5 lbs
    • SKU
      BL71B7580
    • Starting price: Price: $8.39 per item
    Only 24 left in stock


    This cabinet hinge combines soft close BLUMOTION with Blum's innovative CLIP technology, making it a perfect blend of function and form in a small package.

    Material:

    • Cup: steel
    • Arm: zinc

    Finish: Nickel plated

    Cup Depth: 15/32" (11.7 mm)

    Cup Diameter: 1-3/8" (35 mm)

    Holes Diameter: 5/16" (8 mm)

    Boring Distance Range: 1/8" - 5/16" (3 mm - 8 mm)

    Door Type: For cabinet doors up to 15/16" (24 mm) thick

    Opening Angle: 155° door opening angle

    Closing Mechanism: with spring

    Features:

    • For wide angle applications
    • Zero protrusion - suitable for cabinets with interior roll outs
    • For face frame and panel cabinetry
    • Three dimensional adjustment - The side, height and depth can be adjusted with a spiral screw. See video above for details.
    • Overload safety feature
    • Self closing
    • BLUMOTION - The BLUMOTION soft close mechanism is integrated into the hinge cup and provides quality of motion that you have come to expect from Blum Hardware. This feature allows the cabinet door to close softly and quietly regardless of its size, weight or the force with which is was closed. The BLUMOTION function can easily be deactivated on one of the hinges, giving small or light doors the same high quality of motion. To adjust hinges see our BLUMOTION Adjustment Details, or view video clip above.

    Please note, CLIP top BLUMOTION is designed to be used at temperatures between 65° and 85° F. Lower or higher temperatures will not cause damage to the hinge, however they will affect the closing speed. Once the temperature returns to the suggested range the hinge will return to its optimal closing action.

    Cabinet Application: Full overlay

    • Straight arm configuration
    • Hinge arm height: 2-7/16" (62 mm)

    Installation: Press-in. Press-in hinges must be inserted with knock-in tools or universal insertion rams.

    For details on amount of hinges required per door and proper hinge placement, see our Blum Reference Chart.

    Mounting Plates: CLIP top hinges are compatible with all current mounting plates. Please note, Mounting Plates are not included in this product and can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a lifetime warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Blum Cabinet Hinge 71T9580, CLIP Top, 95° Opening.

      • Weight
        0.5 lbs
      • SKU
        BL71B7580
    • Mounting Method
      Press-In
    • Cabinet Type
      Frameless
    • Degree of Opening
      155°
    • Overlay Type
      Full Overlay
    • Cup Mount
      Push In
    • Cup Diameter
      35mm
    • Cup Depth:
      11.5mm
    • Closing Method
      BLUMOTION
    • QuickShip
      Yes
    • Manufacturer
      Blum
    • MPN
      71B7580
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty

    Click to Print



    B71B7580 Product Specs:

    71B7580 Product Specs

    71B7580 Product Specs:

    Click to Print



    B71B7580 Installation Guide:

    Additional options are available, please contact us for details and pricing.

    • Onyx black finish
    • TIP-ON - mechanical opening support system for handless cabinets where doors are opened easily with a light touch
    • 110° angle restriction clip - reduces the opening angle from 155° to 110° and can be installed quickly and easily.

    Additional accessories are recommended, please contact us for details and pricing.

    • Hinge arm cover cap - available with or without Blum logo
    • Hinge cup cover cap - available in nickel plated and onyx black
    • Hinge cup spacer - 1/16" (1.5 mm) spacer for use under the hinge cup
    • 3 mm spacer - reduces the overlay by 1/8" (3 mm)
    • Assembly devices - knock in tool and universal insertion ram
