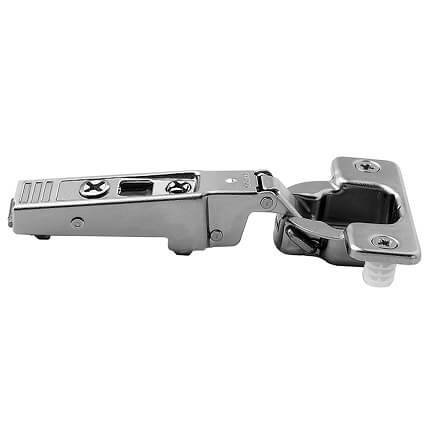

Blum Cabinet Hinge 71T9580, CLIP Top, 95° Opening, Press-In Installation - Quick Ship

blum cabinet hinge
Blum

This model is a cabinet hinge for thick doors that allows for a 95° door opening angle. The hinge is compatible with all current mounting plates (not included) and features press-in installation. Engineered with CLIP technology, cabinet doors with CLIP top hinges can be attached and removed quickly and without tools. The hinge has a full overlay cabinet application and a straight arm configuration.

Ships within 1 business day!

PRICED PER PIECE

See tabs below for additional information
    • Weight
      0.4 lbs
    • SKU
      BL71T9580
    • Starting price: Price: $2.55 per item
    In stock (246 items available)

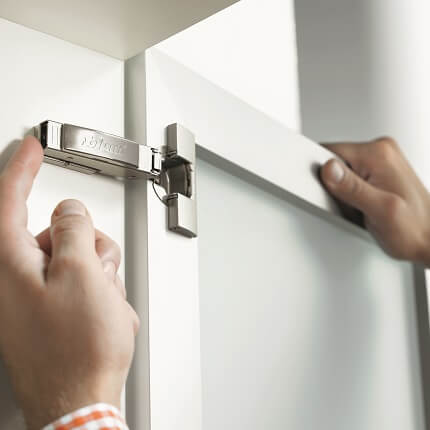

    This cabinet hinge is engineered with CLIP technology so cabinet doors with CLIP top hinges can be attached and removed quickly and without tools.

    Material: Steel

    Finish: Nickel plated

    Cup Depth: 15/32" (12.3 mm)

    Cup Diameter: 1-3/8" (35 mm)

    Holes Diameter: 5/16" (8 mm)

    Boring Distance Range: 1/8" - 9/32" (3 mm - 7 mm)

    Door Type: For cabinet doors up to 1-3/16" (30 mm) thick

    Opening Angle: 95° door opening angle

    Closing Mechanism: with spring

    Features:

    • For thick door applications
    • For face frame and panel cabinetry

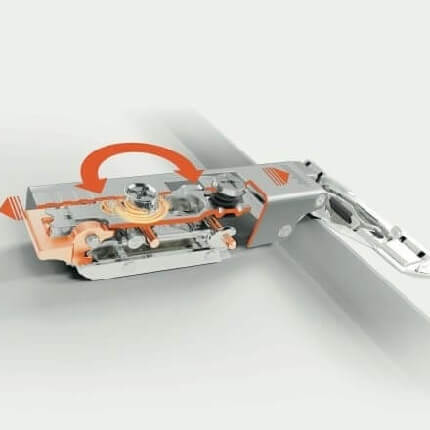

    • Three dimensional adjustment - The side, height and depth can be adjusted with a spiral screw.
    • Self closing

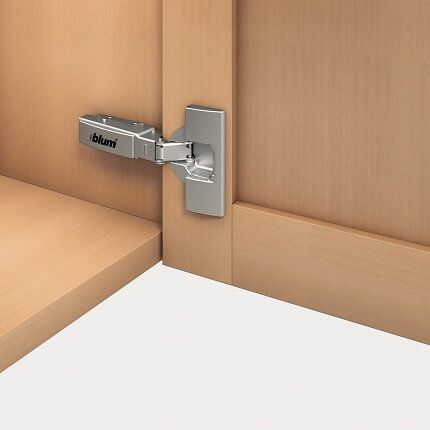

    Cabinet Application: Full overlay

    • Straight arm configuration
    • Hinge arm height: 7/8" (22 mm)

    Installation: Press-in. Press-in hinges must be inserted with knock-in tools or universal insertion rams.

    For details on amount of hinges required per door and proper hinge placement, see our Blum Reference Chart.

    Mounting Plates: CLIP top hinges are compatible with all current mounting plates. Please note, Mounting Plates are not included in this product and can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a lifetime warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Blum Cabinet Hinge 71T3580, CLIP Top, 110° Opening.

      • Weight
        0.4 lbs
      • SKU
        BL71T9580
    • Mounting Method
      Press-In
    • Cabinet Type
      Frameless
    • Degree of Opening
      95°
    • Overlay Type
      Full Overlay
    • Cup Mount
      Push In
    • Cup Diameter
      35mm
    • Cup Depth:
      12.3mm
    • QuickShip
      Yes
    • Manufacturer
      Blum
    • MPN
      71T9580
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty

    Click to Print

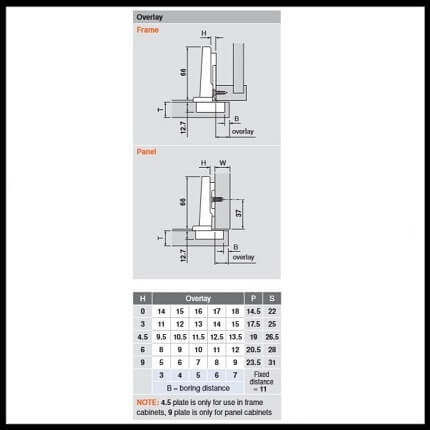

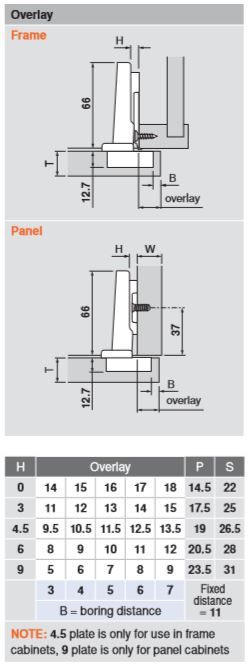

    B71T9580 Product Specs:

    71T9580 Product Specs

    Click to Print



    B71T9580 Installation Guide:

    Additional options are available, please contact us for details and pricing.

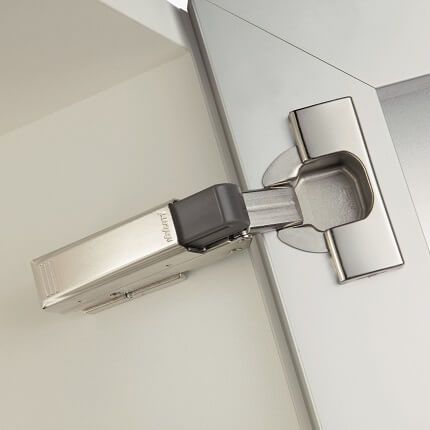

    • BLUMOTION- soft close mechanism that allows the cabinet door to close quietly regardless of its size, weight or the force with which is was closed. To adjust hinges see our BLUMOTION Adjustment Details, or view video clip above.
    • TIP-ON - mechanical opening support system for handless cabinets where doors are opened easily with a light touch

    Additional accessories are recommended, please contact us for details and pricing.

    • Hinge arm cover cap - available with or without Blum logo
    • Hinge cup spacer - 1/16" (1.5 mm) spacer for use under the hinge cup
    • 3 mm spacer - reduces the overlay by 1/8" (3 mm)
    • Assembly devices - knock in tool and universal insertion ram
