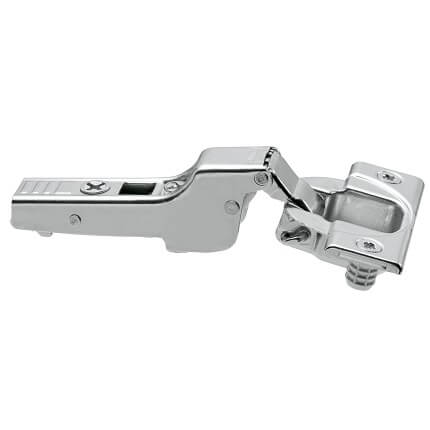

Blum Cabinet Hinge 71T3580, CLIP Top, 110° Opening, Press-In Installation - Quick Ship
This model is a standard cabinet hinge that allows for a 110° door opening angle. The hinge is compatible with all current mounting plates (not included) and features press-in installation. Engineered with CLIP technology, cabinet doors with CLIP top hinges can be attached and removed quickly and without tools. Available in a choice of three cabinet applications, choose from the dropdown below.
Ships within 1 business day!
See full product details and specs in the tabs below.
PRICED PER PIECE

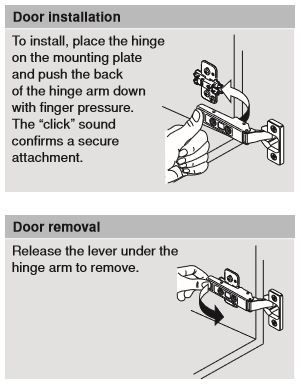

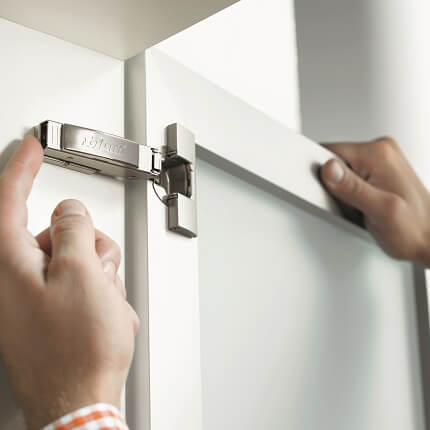

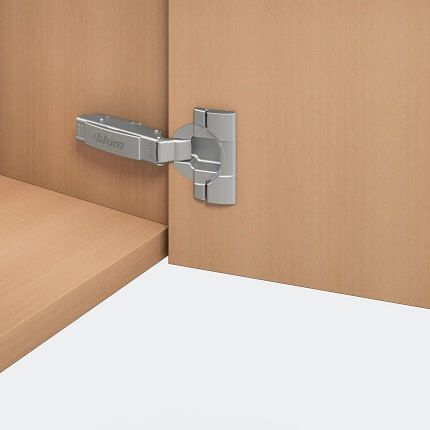

This cabinet hinge is engineered with CLIP technology so cabinet doors with CLIP top hinges can be attached and removed quickly and without tools.
Material: Steel
Finish: Nickel plated
Cup Depth: 1/2" (13 mm)
Cup Diameter: 1-3/8" (35 mm)
Holes Diameter: 5/16" (8 mm)
Boring Distance Range: 1/8" - 9/32" (3 mm - 7 mm)
Door Type: For cabinet doors up to 1" (26 mm) thick
Opening Angle: 110° door opening angle
Closing Mechanism: with spring
Features:
- For face frame and panel cabinetry

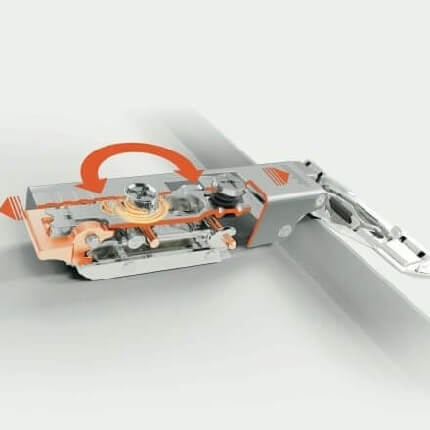

- Three dimensional adjustment - The side, height and depth can be adjusted with a spiral screw.
- Self closing
Cabinet Application: This hinge comes in a choice of three cabinet applications:

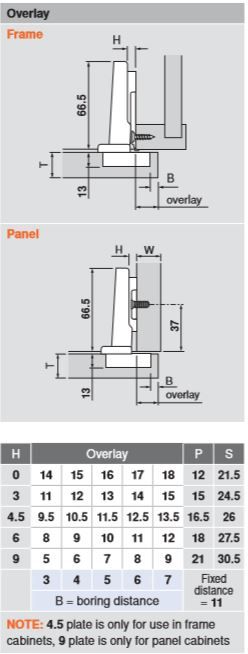

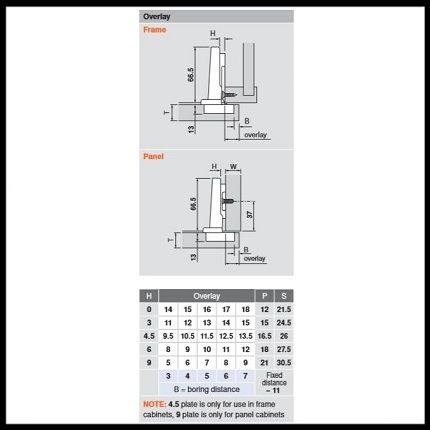

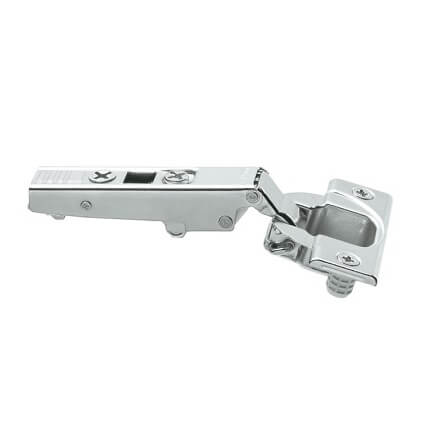

- 71T3580: Full overlay
- Straight arm configuration
- Hinge arm height: 27/32" (21.5 mm)

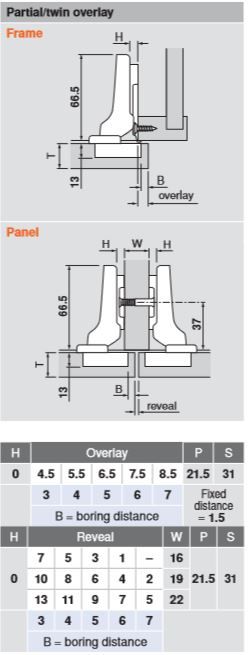

- 71T3680: Partial overlay
- Half cranked arm configuration
- Hinge arm height: 1-7/32" (31 mm)

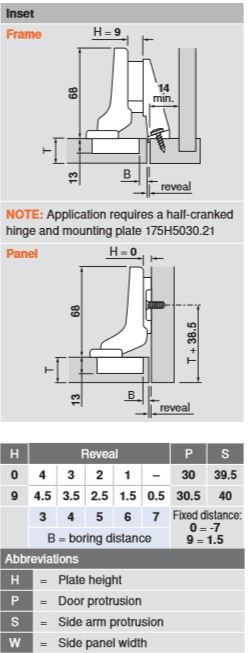

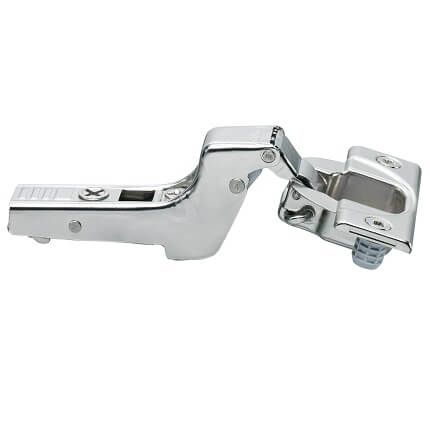

- 71T3780: Inset
- Full cranked arm configuration
- Hinge arm height: 1-9/16" (39.5 mm)
Installation: Press-in. Press-in hinges must be inserted with knock-in tools or universal insertion rams.
For details on amount of hinges required per door and proper hinge placement, see our Blum Reference Chart.
Mounting Plates: CLIP top hinges are compatible with all current mounting plates. Please note, Mounting Plates are not included in this product and can be ordered separately through our site.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
This product has a lifetime warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click here to view our Blum Cabinet Hinge 71B9580, CLIP Top BLUMOTION, 95° Opening.
-
Mounting MethodPress-In
-
Cabinet TypeFrameless
-
Degree of Opening110°
-
Overlay TypeFull Overlay, Partial Overlay, Inset Overlay
-
Cup MountPush In
-
Cup Diameter35mm
-
Cup Depth:13mm
-
QuickShipYes
-
ManufacturerBlum
-
MPN71T3580 / 71T3680 / 71T3780
- Finishes
-
FinishNickel Plated
-
- Compliance Details
-
WarrantyLifetime Limited Warranty
-
Additional options are available, please contact us for details and pricing.
- BLUMOTION- soft close mechanism that allows the cabinet door to close quietly regardless of its size, weight or the force with which is was closed. To adjust hinges see our BLUMOTION Adjustment Details, or view video clip above.
- TIP-ON - mechanical opening support system for handless cabinets where doors are opened easily with a light touch
- 86 degree angle restriction clip - reduces the opening angle from 110° to 86° and can be installed or removed before or after the hinge has been installad. See video above for details.
Additional accessories are recommended, please contact us for details and pricing.
- Hinge arm cover cap - available with or without Blum logo
- Hinge cup spacer - 1/16" (1.5 mm) spacer for use under the hinge cup
- 3 mm spacer - reduces the overlay by 1/8" (3 mm)
- Assembly devices - knock in tool and universal insertion ram
