Blum Cabinet Hinge 71T7530N, CLIP Top, 155° Opening, Press-In Installation - Quick Ship

Blum Cabinet Hinge 71T7530N, CLIP Top, 155° Opening, Press-In Installation - Quick Ship
Blum

This product has been discontinued.

Click here to view all our available Cabinet Hinges.

This model is a zero protrusion cabinet hinge that allows for a 155° door opening angle. The hinge is compatible with all current mounting plates (not included) and features press-in installation. Engineered with CLIP technology, cabinet doors with CLIP top hinges can be attached and removed quickly without tools. The hinge has a full overlay cabinet application and a straight arm configuration.

Ships within 1 business day!

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      BL71T7530N
    • Call for price!
    845-388-1300
    Out of stock

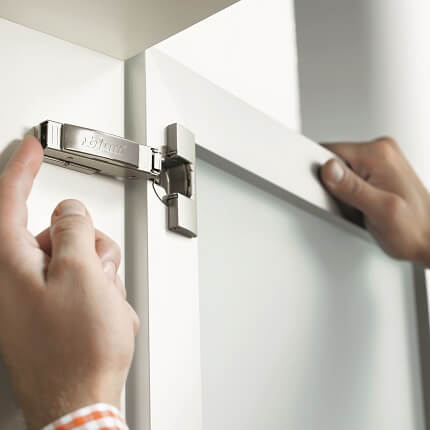

    This cabinet hinge is engineered with CLIP technology so cabinet doors with CLIP top hinges can be attached and removed quickly and without tools.

    Material: Zinc

    Finish: Nickel plated

    Cup Depth: 15/32" (11.7 mm)

    Cup Diameter: 1-3/8" (35 mm)

    Holes Diameter: 5/16" (8 mm)

    Boring Distance Range: 1/8" - 5/16" (3 mm - 8 mm)

    Door Type: For cabinet doors up to 15/16" (24 mm) thick

    Opening Angle: 155° door opening angle

    Closing Mechanism: with spring

    Features:

    • For wide angle applications
    • Zero protrusion - suitable for cabinets with interior roll outs
    • For face frame and panel cabinetry
    • Three dimensional adjustment - The side, height and depth can be adjusted with a spiral screw.
    • Self closing

    Cabinet Application: Full overlay

    • Straight arm configuration
    • Hinge arm height: 2-7/16" (62 mm)

    Installation: Press-in. Press-in hinges must be inserted with knock-in tools or universal insertion rams.

    For details on amount of hinges required per door and proper hinge placement, see our Blum Reference Chart.

    Mounting Plates: CLIP top hinges are compatible with all current mounting plates. Please note, Mounting Plates are not included in this product and can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a lifetime warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Blum Cabinet Hinge 71B7580, CLIP Top BLUMOTION, 155° Opening.

      • SKU
        BL71T7530N
    • QuickShip
      Yes
    • Manufacturer
      Blum
    • MPN
      71T7530N
    No reviews available yet.

    Click to Print

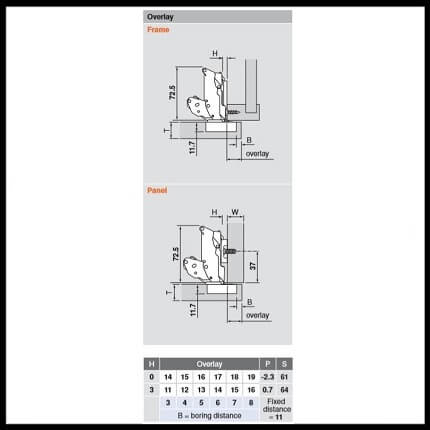

    B71T7530N Product Specs:

    71T7530N Product S[ecs

    71T7530N Product Specs

    Click to Print



    B71T7530N Installation Guide:

    Additional options are available, please contact us for details and pricing.

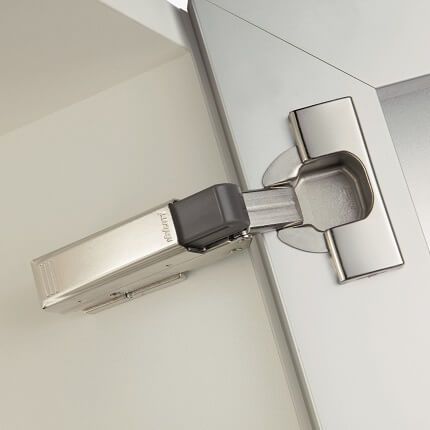

    • BLUMOTION- soft close mechanism that allows the cabinet door to close quietly regardless of its size, weight or the force with which is was closed. To adjust hinges see our BLUMOTION Adjustment Details, or view video clip above.
    • TIP-ON - mechanical opening support system for handless cabinets where doors are opened easily with a light touch
    • 110° / 92° angle restriction clip - reduces the opening angle from 110° to 86° and can be installed quickly and easily.

    Additional accessories are recommended, please contact us for details and pricing.

    • Hinge arm cover cap - available with or without Blum logo
    • Hinge cup spacer - 1/16" (1.5 mm) spacer for use under the hinge cup
    • 3 mm spacer - reduces the overlay by 1/8" (3 mm)
    • Assembly devices - knock in tool and universal insertion ram
