Falcon K Series Grade 1 Cylindrical Lever - Keyed, Privacy, Passage or Dummy Function

Click here to view the Falcon K Series from the Falcon Full Line Catalog

Handing: Non-Handed

Lever: Lever trims have individual torsion springs behind rose for lever return and to prevent lever sag.

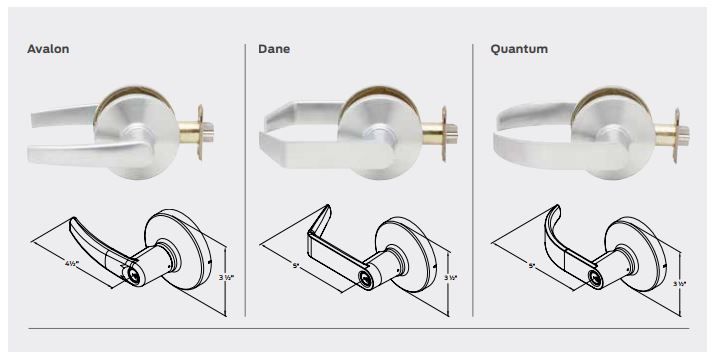

Lever Style: 3 styles available, choose from options above.

Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

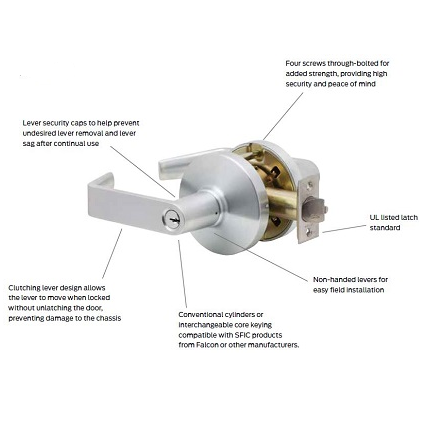

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts. Lever trim shall have individual torsion springs behind rose for lever return and to prevent lever sag. Trim shall be through bolted with four (4) screws to provide strength and resistance to loosening. Inner and outer trim shall “bottom out” to prevent door collapse.

Rose: Roses are a minimum of 3-1/2" diameter.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Keys: Two, Nickel silver cut keys per lock

Keyway: Falcon G keyway standard on conventional cylinder. "A" Keyway standard for IC-available for purchase through our office.

Additional Keying Options: Additional keying options and keyways available through our office.

Cylinder / Core:

• Housing and plugs machined from Solid Brass, Springs are phospor Bronze.
• 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD),
• Cylinder assemblies removable to rekey.
• Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.

Interchangeable Cores: Falcon K Series accepts the following competitors interchangeable cores: Corbin Russwin, Sargent, Schlage, Yale. (Can be purchased through our office.)

Additional Cylinder Options: (Can be purchased through our office.)

• Keyed 6-Pin or 7-Pin
• Construction Cores
• Small Format Interchangeable Core (SFIC)

Door Thickness: Adjustable 1-3/8" to 2-1/4". Comes set for a 1 3⁄4" thick door standard

Backset: 2-3/4" standard. (2-3/8" and Link (A22161-005-10) for 5" backset available through our office.)

Latch:

• 1/2" throw-standard. (option of 3/4" projection through our office)
• 1-1/8" x 2-1/4" square corner faceplate.
• 1" housing diameter

Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

Functions:

• Non-Keyed Functions: K12-Dummy Trim, K101-Passage, K301-Privacy
• Keyed Functions: K501-Entry, K511-Entry/Office, K561-Classroom, K571-Corridor, K581-Storeroom
• See K Series Lever Functions for more information

Options available through our office only:

• Additional latchbolts and strikes
• Additional Keys

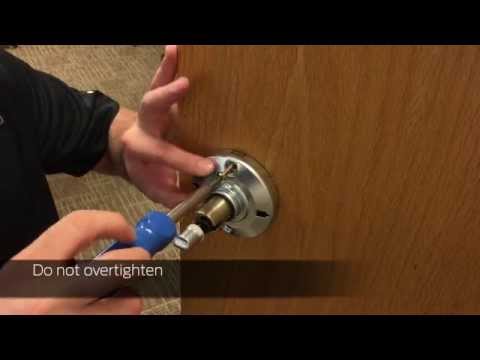

Installation:

• Lock chassis secured to door by threaded mounting screws. Completely preassembled outer trim and inner spindle assembly are through-bolted both through and over chassis using four (4) screws to provide strength and resistance to loosening. Adding rose and lever to inner spindle assembly completes installation.

Compliance Details:

• All locks meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
• Locksets are be UL Listed (3 hour A Label)
• See Compliance Details Tab for corresponding ANSI numbers
• All lever designs are solid and meet the federal ADA and state disability requirements. Inside levers are be attached by allen-head set and lever catch to prevent tampering or vandalism.

Priced Per Set.

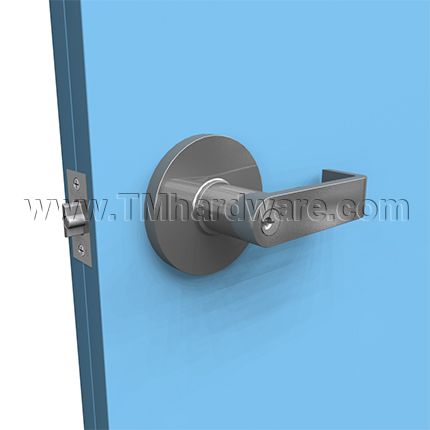

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

Product has a 1 year warranty against defects in material and workmanship
 Click to view our Full Warranty Policy.
