Zero #320, Automatic Door Bottom, Mortised Regular Duty with Neoprene Seal

Zero #320, Automatic Door Bottom, Mortised Regular Duty with Neoprene Seal

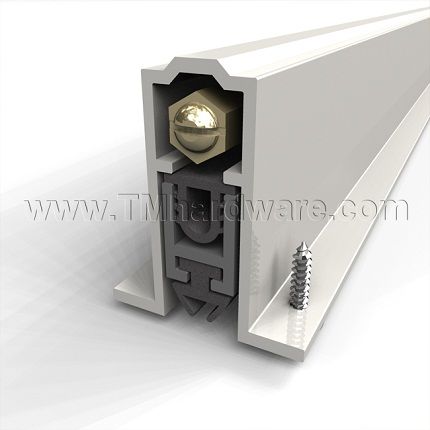

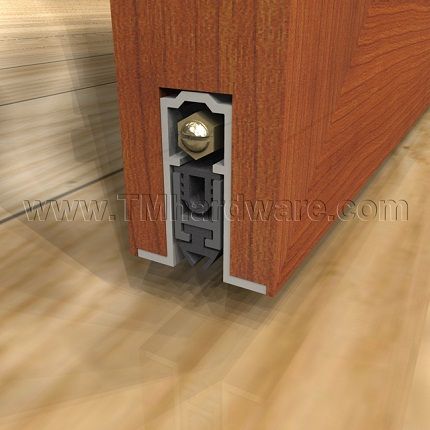

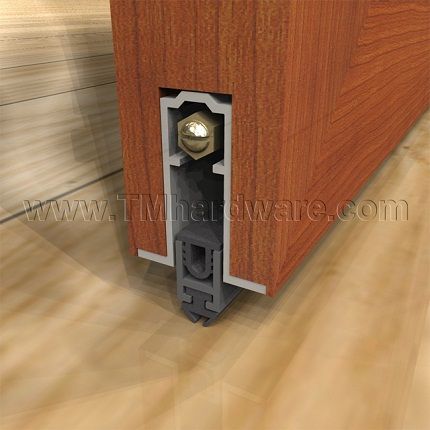

Product Specs of Mortised Automatic Door Bottom #320 Zero 320 Mortised Automatic Door Bottom Zero 320 Mortised Automatic Door Bottom Applied to Interior Wooden Door in Closed Position Zero 320 Mortised Automatic Door Bottom Applied to Interior Wooden Door in Open Position

This Zero International #320 fully mortised, standard duty Automatic Door Bottom creates a tight seal at the bottom of door to prevent infiltration of light, sound, drafts and more. It is fitted with a solid neoprene extrusion with a high quality mechanism that has been successfully tested through 5 million cycles! Can fill gaps up to .5" and is fire rated.

Note, this product is priced per range with 18.25" - 36" being the lowest priced range. To determine sizing needed, see How to Measure for an Automatic Door Bottom.

Price: $56.42
Size Range
Exact Size
Qty
Save to wishlist
SKU Z320AA|18
Shipping See Shipping Tab Below
Description

This automatic door bottom is designed to be fully mortised within a hollow interior of a door.

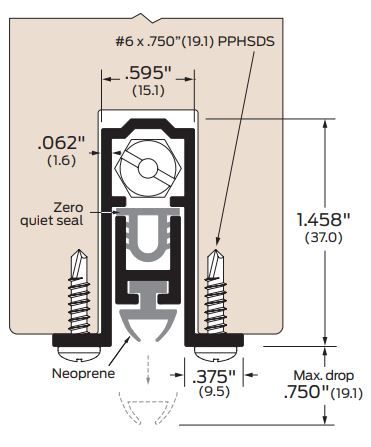

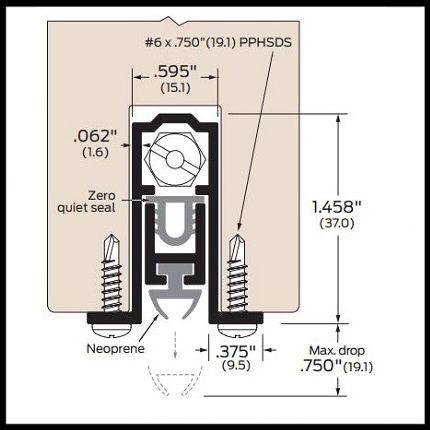

Dimensions: Casing measures 1.458" H x .595" W, with two .375" flanges extended on both sides. Length is custom cut to size.

To determine length needed, see How to Measure for an Automatic Door Bottom.

Suggested Door Cutout: 11/16" x 17/16"

Door Compatibility: Wooden doors, minimum 1.5" thick.

Finishes: Clear Anodized Aluminum

Seal: Solid neoprene seal, self-extinguishing and oil resistant. Seal has a maximum drop of .5"

Compliance Details:  Rated for Fire and is UL listed (see Product Data Tab for details.)

Handing:  Compatible with both right and left handed doors.

Installation: Fully mortised aluminum casing. Installation instructions and screws provided.

Please note, Images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Check out our other Mortised Automatic Door Bottoms.

How It Works

Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

See also About Automatic Door Bottoms.

Product Specs

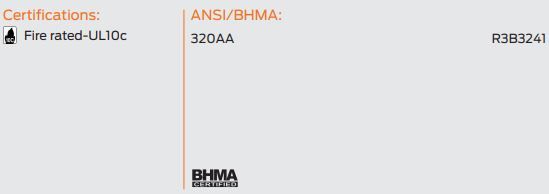

Compliance Details



compliance details for z320

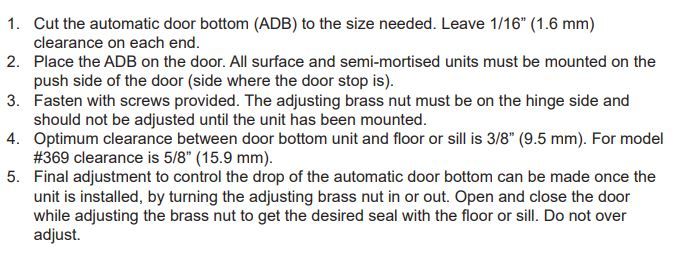

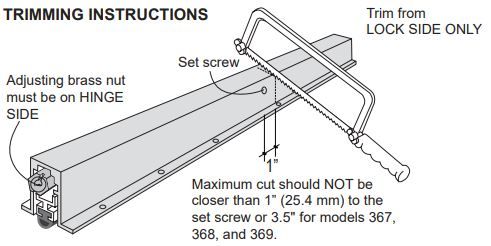

Installation Instructions
