Zero #7770 Door Gasket, Aluminum Casing with Adjustable Neoprene Seal and Interior Sponge

Zero #7770 Door Gasket, Aluminum Casing with Adjustable Neoprene Seal and Interior Sponge
Product Specs of Door Gasket #7770 Clear Anodized Aluminum Door Gasket Door Gasket with Neoprene Seal Adjustable Door Gasket with Neoprene Seal Door Gasket with Neoprene Seal Adjustable Door Gasket with Neoprene Seal Door Gasket Applied to Stop Door Gasket Applied as Stop Door Gasket with Cover Plate Dark Bronze Anodized Aluminum Door Gasket Door Gasket with Neoprene Seal Door Gasket with Cover Plate Gold Anodized Aluminum Door Gasket Door Gasket with Neoprene Seal Door Gasket with Cover Plate
0.0

This Zero #7770 Door Gasket is fitted with a double neoprene seal and an interior neoprene sponge for that extra protection, providing you with a top quality seal. It is Fire and Smoke Rated, soundproof and is easily adjustable to conform to the natural shifting of doors. Aluminum casing is available in three finishes with options of cut edge.

PRICED PER FOOT

Price: $28.14
Finish
Size (Inches)
Edge Design
Qty
Save to wishlist
SKU Z7770AA
Options Mitered or Straight Edges
Shipping See Shipping Tab Below
Description

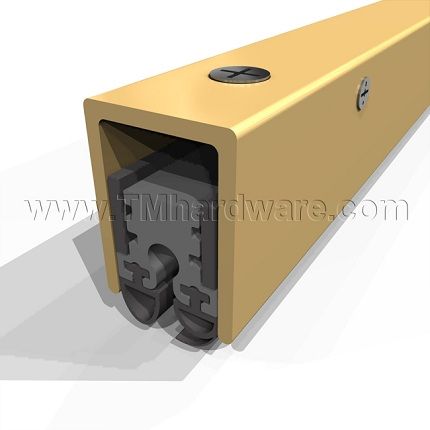

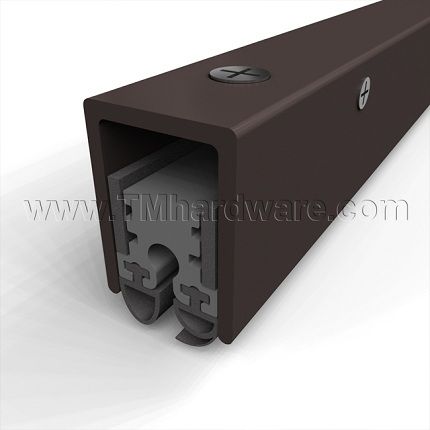

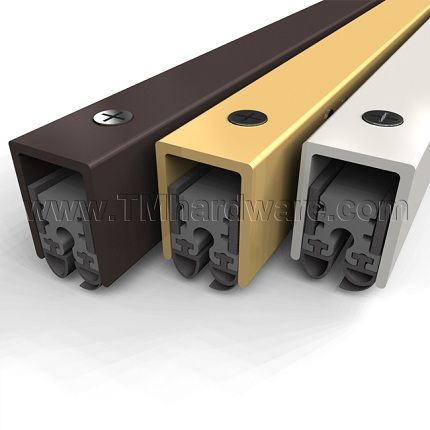

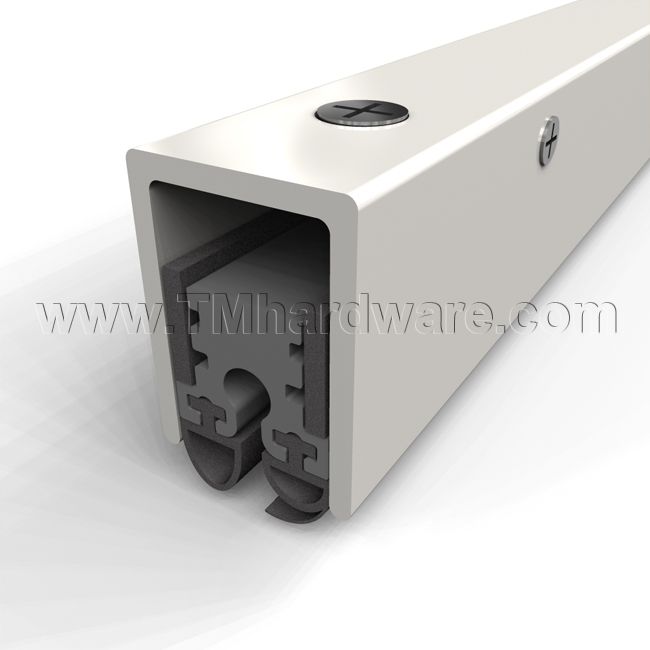

This Fire and Smoke Rated Door Gasket has a heavy duty casing and is fitted with two neoprene bulbs, to give you one of the strongest and consistent seals we provide. Available in three anodized finishes and is custom cut to size. See below for key features:

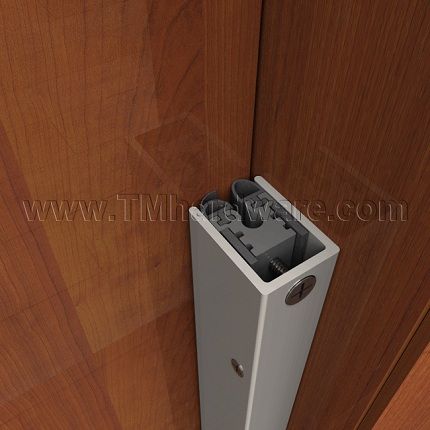

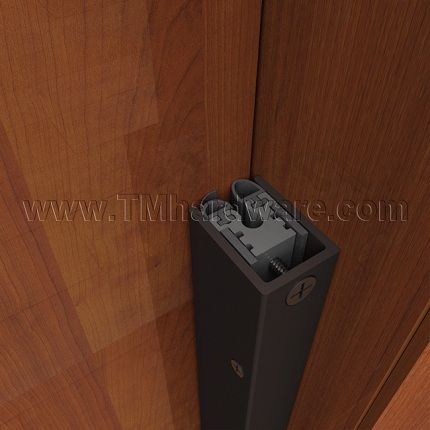

Seal: Gasket is fitted with a double high quality solid neoprene bulb seal. One bulb features an extruded bulb finger (EBF). The EBF design aids in sealing gaps when the door is misaligned due to poor installation or natural warping. The material is water and weatherproof and remains flexible in extreme weather conditions, ensuring a constant seal through many usages. The interior is filled with sponge neoprene for that extra protection.

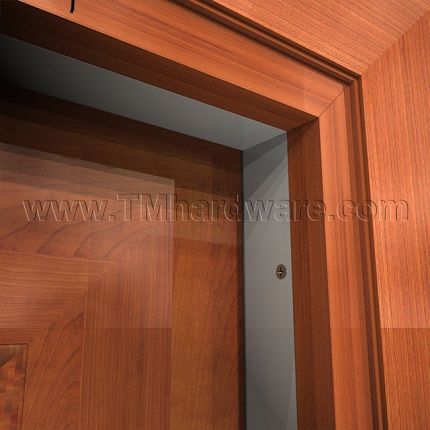

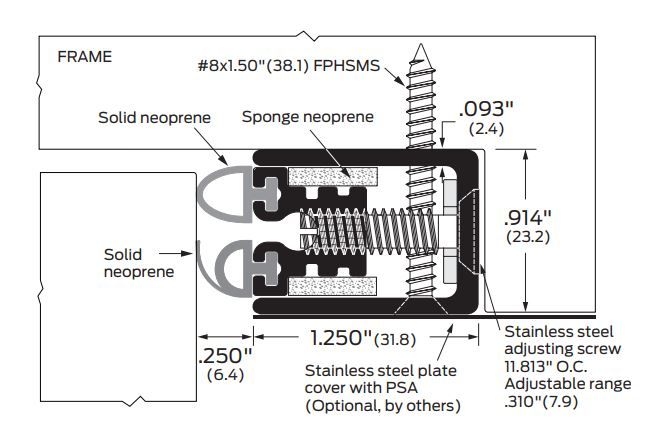

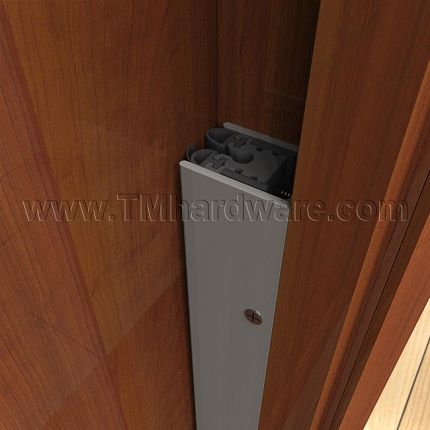

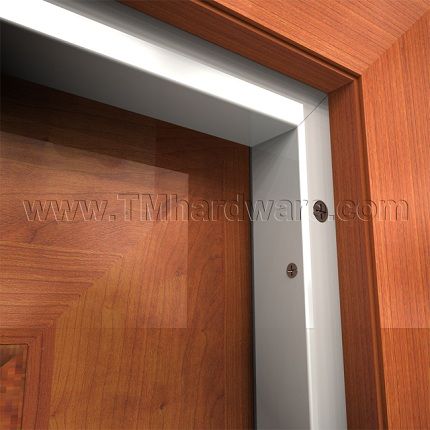

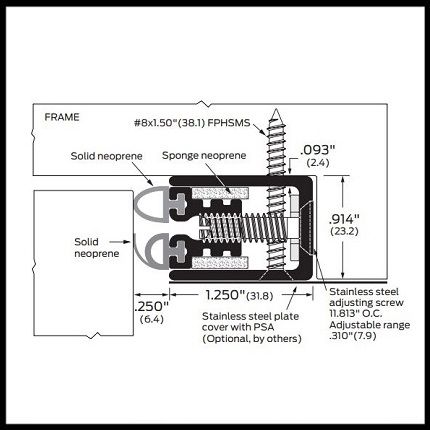

CasingCasing is made of high quality anodized aluminum that will last through much usage. This gasket can be applied as a door stop (and replace your stop molding) or onto an existing stop. We recommend using it as a door stop itself. As a door stop it will run along the length of your door frame to the bottom of your door and will be compatible with a Surface Mounted Automatic Door Bottom. Casing has dimensions of 1.25" Wide x .914" High.

Mitered Edge Design: Due to the size of this casing, it can be cut with a mitered edge, which provides a stronger seal over straight edges.

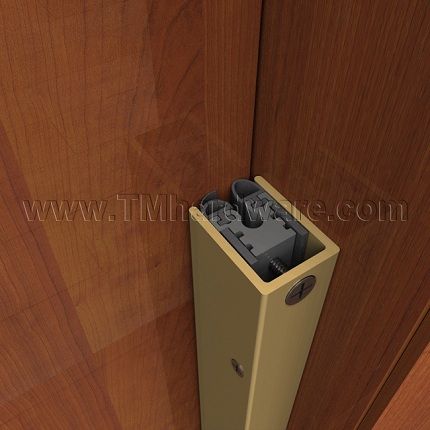

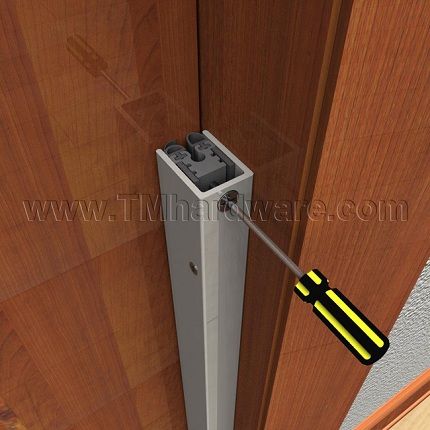

Adjustable: As doors tend to shift and warp over time it is inevitable that eventually your gasket will lose its effectiveness and provide a compromised seal between the gasket and the door. This gasket can be easily adjusted with a simple twist of a screwdriver, allowing you to maintain a constant tight seal and ensure protection against drafts, dust, insects, fumes, light and water from entering through your doorway. It has an adjustable range of .3 inches.

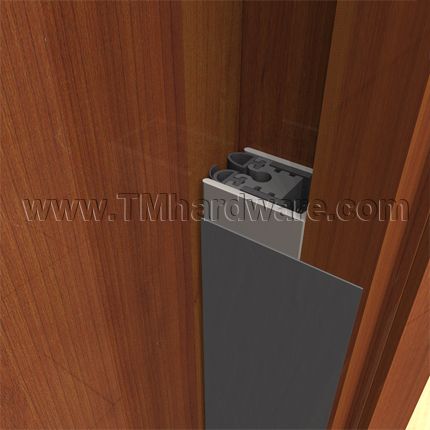

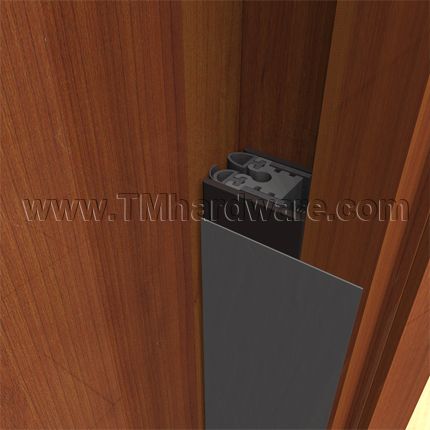

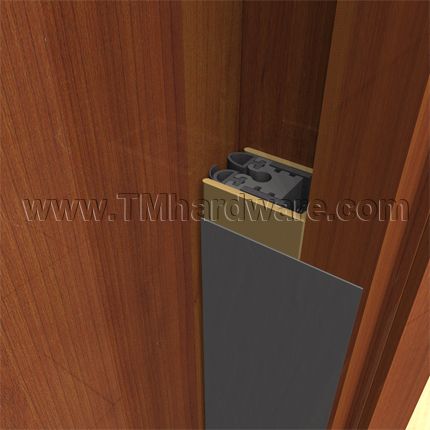

Cover Plate: A Stainless Steel cover plate with PSA Self-Adhesive Backing can be purchased. The cover plate is great for protecting your door hardware or for aesthetic purposes. Additionally, Stainless Steel is an easy maintenance material which is great for Commercial Kitchens, Cleanroooms or any area where a sterile environment needs to be maintained. The self-adhesive backing ensures easy installation. Can be purchased through our office, contact our sales department at 845-388-1300.

This product can be applied with a door closer or a strike plate when applied with our specialized Door Closer or Strike Plate Mounting Bracket.

  • Triple neoprene seal - exterior and interior
  • Smoke and Fire Rated
  • Soundproof seal
  • Easily adjustable
  • Compress-O-Matic design
  • Prevents air, wind and water infiltration
  • Length is custom cut to size

Installation screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to view more Zero International #770 Heavy Duty Adjustable Door Gasket.

Product Specs

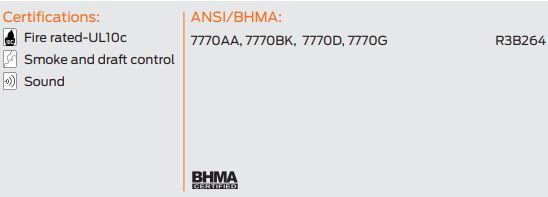

Compliance Details
