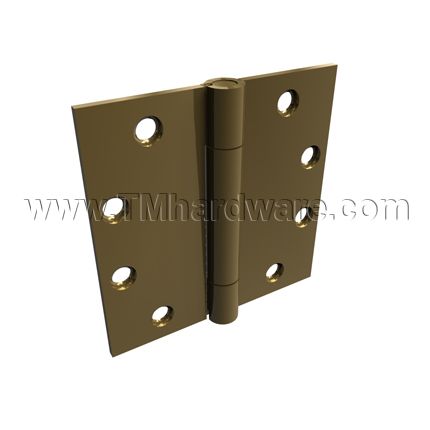

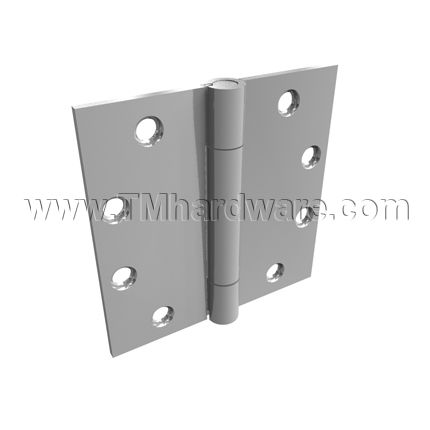

Hager 800, Plain Bearing, Brass or Stainless Steel, Standard Weight, 3 Knuckle, Full Mortise Hinge, All Sizes

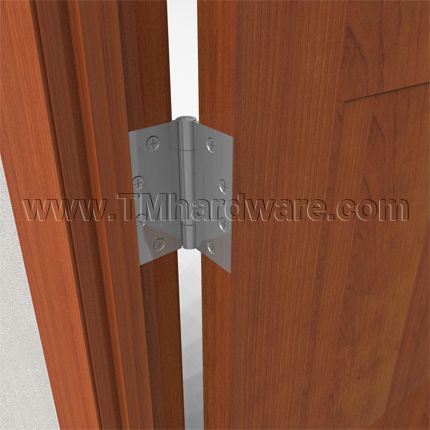

Hager 800 Full Mortised, Three Knuckle, Plain Bearing, Architectural Hinge. Standard weight for use with medium weight doors or doors of low frequency service. Hinge made of brass or stainless steel with stainless steel pin. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information

Quantity

Add to compare

Hager 800 Full Mortised, Three Knuckle, Plain Bearing, Architectural Hinge. Standard weight for use with medium weight doors or doors of low frequency service.

Available sizes:

Hinge Size		Gauge of Metal	Hole Count	Screw Size
Inches	mm	Gauge of Metal	Hole Count	Machine	Wood
3-1/2" x 3-1/2"	89 x 89	0.119	6	1/2 x 10-24	1 x 9
4" x 4"	102 x 102	0.129	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 4"	114 x 102	0.134	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 4-1/2"	114 x 114	0.134	8	1/2 x 12-24	1-1/4 x 12
5" x 4"	127 x 102	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 4-1/2"	127 x 114	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 5"	127 x 127	0.145	8	1/2 x 12-24	1-1/4 x 12

Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

Custom Finishes Available. For details and pricing please contact us or call us at 845-388-1300.

Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. The pin and plug are flush with the hinge body.

Reverse Safety Stud Feature available. This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas. This feature is not available on brass hinges. See Options Tab for pricing and more information.

Priced per piece

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.
Click to view our Full Warranty Policy.

Click here to view our Hager AB700 Concealed Anti-Friction Bearing Hinge.

- SKU
  HG800-3.5x3.5-US10
QuickShip
No
Manufacturer
Hager Companies
MPN
800
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Brass, Stainless Steel
- Usage Level
  Standard Duty
- Throw
  Standard Throw
- Bearing Type
  Plain Bearing
- Knuckles
  3 Knuckle Hinge
- Pin Type
  Standard Hinge Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  See Dimensions Chart
Dimensions
- Hinge Size
  3-1/2" x 3-1/2", 4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4", 5" x 4-1/2", 5" x 5"
- Hinge Thickness
  See Dimensions Chart
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  Installation Screws Provided Accordingly:
  4-1/2" Hinge: All metal screws and half wood screws
  3-1/2" Hinge: All wood screws and half metal screws
  4" Hinge: All wood screws and half metal screws
  5" Hinge: All metal screws and half wood screws
  Additional screw packs can be provided if listed in order comments before completing purchase.
Additional Options - Purchase Through Our Office
- Reverse Safety Stud Feature
  Yes
Finishes
- Finish
  Polished Brass (US3), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Satin Stainless Steel (US32D)
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  A2133, A5133, A156.18
- Warranty
  Lifetime Limited Warranty

Click to Print 3-1/2" Hinge Template

Click to Print 4" Hinge Template

Click to Print 4-1/2" Hinge Template

Click to Print 4-1/2" Reverse Safety Stud Hinge Template

Click to Print 5" Hinge Template

Click to Print 5" Reverse Safety Stud Hinge Template

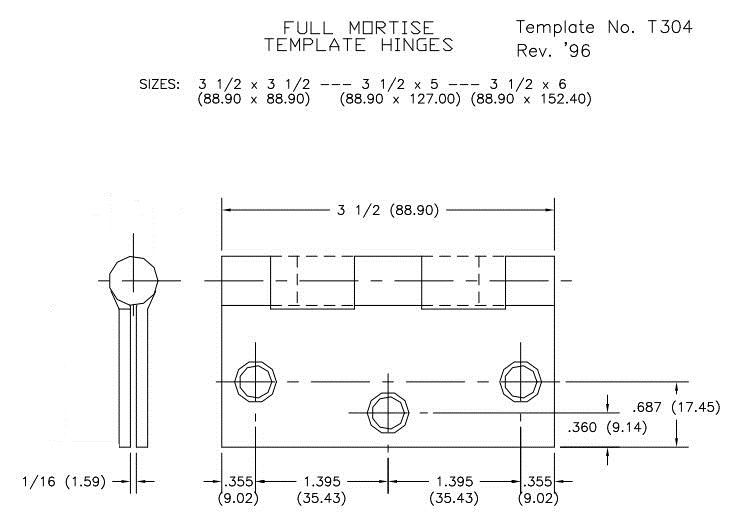

3-1/2" Hinge Template. Select links above for additional templates.

Reverse Safety Stud

The Reverse Safety Stud (RSS) 7/16" projection is a feature that has a stud projecting from both leaves into the reinforcing plate of both the frame and the door. It is intended to keep the hinge locked in place from abuse of battering or trying to shear the hinges and screws. This feature is primarily used in prisons and psychiatric areas.

This feature is not available on brass hinges.
