Zero #560 Latching Panic Exit Threshold, 5" W Aluminum Neoprene Gasket, .875" H

Zero #560 Latching Panic Exit Threshold, 5" W Aluminum Neoprene Gasket, .875" H
Zero International

This item has an extended lead time of 9 weeks - for a similar item see our NGP Latching Panic Exit Threshold

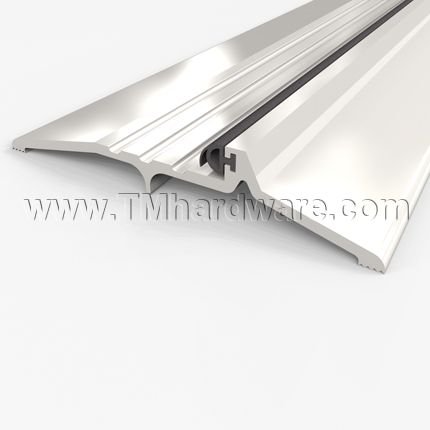

This Zero #560 Latching Panic Exit Threshold, made from Aluminum Mill Finish, can be used in conjunction with a surface applied vertical rod exit device. It is fitted with a rubber seal which compresses against the door to ensure a solid seal. Smoke Rated. Length is custom cut to size.

See product details and specs in tabs below.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR560A
    • Market price:$22.37
      • save 5%
    • Starting price: Price: $21.25 per foot


    Threshold design is compatible with a surface applied rod exit device.

    Seal: Threshold has a neoprene seal which compresses against door to create a solid seal. The specialized Extruded Bulb and Finger Design (EBF) ensures superior sealing by compensating for gaps that may occur due to faulty installation or natural warping of the door. Seal remains flexible in extreme temperatures

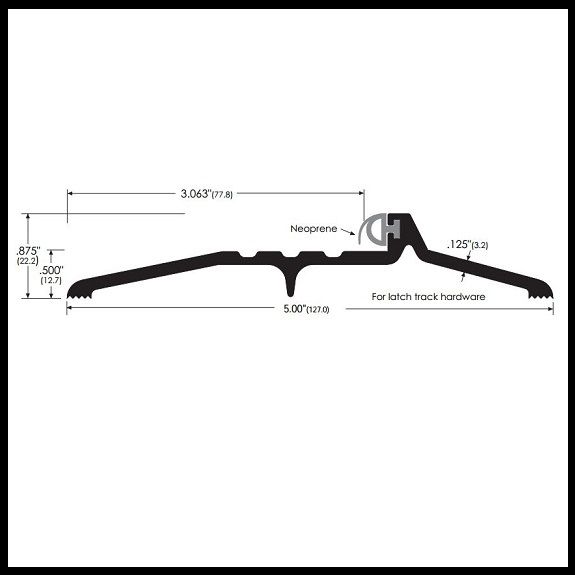

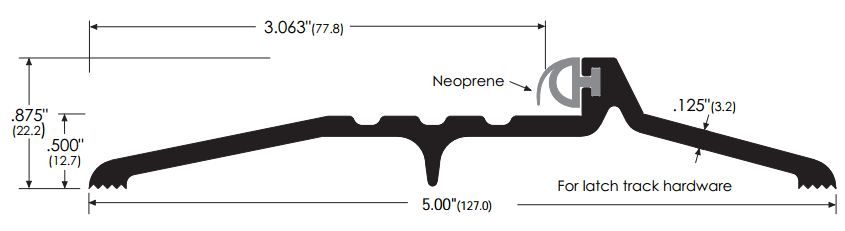

    Width: 5"

    Required Door Clearance: .5"

    Total Height: .875"

    Thickness: .125"

    Finishes: Available in aluminum mill finish

    Compliance Details: Smoke Rated

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

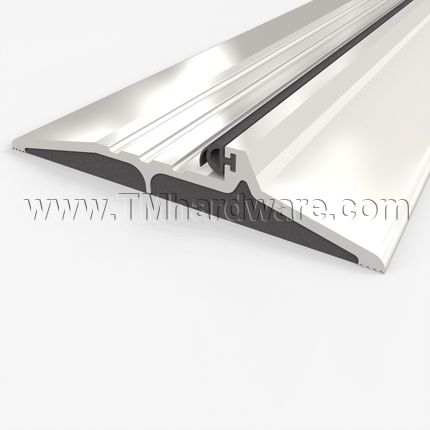

    Additional Options Include: Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Click here to see more Rubber Seal Thresholds.

      • SKU
        ZR560A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      560
    • Options
      Standard Aluminum, Alum. with Full Body Strength
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Flat Black (US19)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    Threshold Complies with the Following ANSI / BHMA Codes:

    • Standard Aluminum: J36100
    • Aluminum with Epoxy Abrasives: J36200
    • Threshold has passed the ANSI Standard Load Test
