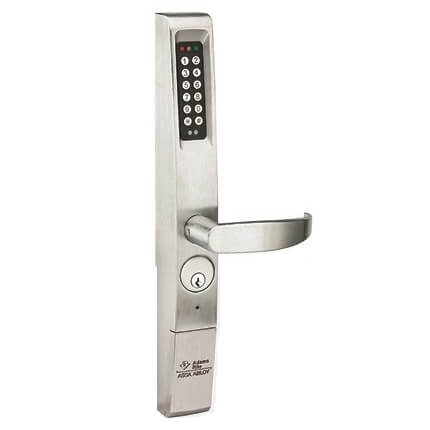

Adams Rite Entry Trim 3090-150, Keyless, For Adams Rite Deadlocks, Deadlatches and Exit Devices

Adams Rite offers a range of trims designed to easily integrate with our deadlocks and deadlatches to compliment any door. This keyless entry trim provides access control for doors with an Adams Rite deadlock, deadlatch and exit device, in narrow stile aluminum and hollow metal applications.

Product Note: Adams Rite eForce 3090P & 3090C were discontinued as of November 16, 2018. Customers can continue to order eForce 3090-150 and the A100-3090H (Aperio).

Handle: Clutch-protected cast zinc alloy; finished to match housing, field selectable handing.

Features:

• Surface mounted with concealed fasteners.
• Powered by 4 AA alkaline batteries; supports 60,000 activations.
• Device can accommodate up to 150 users, including master, supervisor, emergency users plus two one-time codes.
• The eForce 3090-150 can operate in three modes: Standard, Passage, and Lockout.
• All programming is accomplished via the keypad.
• Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a Piezo horn.

Compatibility: MS1850S, MS1850SN and MS1950 Series Deadlocks, 4510, 4530, 4900, and 4920AN Series Deadlatches and 8100, 8200, 8300, 8400, 8500, 8600, 8700, and 8800 Series Exit Devices.

Door Type: For narrow stile aluminum and hollow metal doors with 1-3/4" (44.5 mm) to 2-1/4" (57.2 mm) door thickness.

Operation: In the standard mode of operation, a programmed 2 to 7-digit character followedby a star (*) key allows for one entry when used with Adams Rite deadlatches or exit devices. When an authorized code is entered, rotate lever downward 90° to unlock or unlatch locking device. When released, lever returns to horizontal. The MS Deadlocks must always be relocked manually when used with the eForce 3090-150. Hold open time is adjustable from 1 to 9 seconds.

?? Keyless?? Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 10 year warranty against defects in materials and workmanship.
