Hager 9630 Sliding Door Series, Pocket Door Applications, Heavy Duty, For Doors 7' High and up to 150 Lbs

This item has been discontinued - For similar item please see the Hager 9600CS

See tabs below for additional information

Click here to view Hager 9630 Series from Full Hager Catalogue.

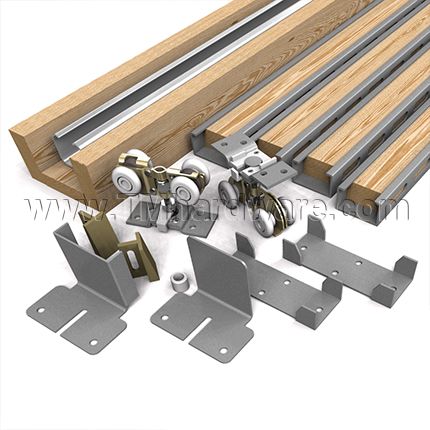

Included parts for 9630 Pocket Door Sets: Components can be ordered separately, see links below:

(1 ea.) Header and Track (9601) Assembly
(1 ea.) End Bracket Flanged
(1 ea.) End Bracket Plain
(2 ea.) Floor Plate
(4 ea.) Split Stud
(2 ea.) Carrier (9606)
(2 ea.) Quick Release Plate (9610)
(1 ea.) Door Guide Set (9883)
(1 ea.) Bumper Kit (9881)
(1 ea.) #8 x 3/4" Phillips Pan Head Screws
(8 ea.) #8 x 1 1/2" Phillips Pan Head Screws
For bi-parting doors, order 2 9630 Pocket Door Sets with one Hager 9639 Double Pocket Door Kit (sold separately.)

Door Thickness: For doors 1 3/8" - 1 3/4" thick. 9634 adapter included for use with doors 1 3/4" thick.

Materials: Aluminum Box Track with jump proof twin channel design. Steel Ball Bearing Hangers with pre-lubricated Celcon wheels.

Hanger Dimensions: 4 wheel hanger with 7/8" diameter wheels.

Door Height: For doors 7' High. For additional door heights, see our 9628, 9629 and 9631 Pocket Door Sets.

Installation: Pre-assembled header assembly for ease of installation and removal. Track header unit attaches to rough framing at both ends. Split studs can be nailed or screwed to track header. See Installation Tab below for complete installation instructions.

Additional Customization Options: These products can be ordered as full Pocket Door Kits or as individual components. To order please contact us or call our office at 845-388-1300.

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

- SKU
  HG9630
QuickShip
No
Manufacturer
Hager Companies
MPN
9630
About This Product
- Mounting Type
  Overhead Mount
- Door Mount
  Surface Mount
- Track Type
  Box Track
- System Type
  Pocket Door Kit
- Included Parts
  Header and Track Assembly – 9601 (1 ea.)
  End Bracket Flanged (1 ea.)
  End Bracket Plain (1 ea.)
  Floor Plate (2 ea.)
  Split Stud (4 ea.)
  Carrier – 9606 (2 ea.)
  Quick Release Plate – 9610 (2 ea.)
  Door Guide Set – 9883 (1 ea.)
  Bumper Kit – 9881 (1 ea.)
  #8 x ¾” Phillips Pan Head Screws (1 ea.)
  #8 x 1-1/2” Phillips Pan Head Screws (8 ea.)
- Material
  Aluminum
Dimensions
- Door Panel Weight
  Up to 150 lbs
- Door Width
  36" Wide Door
- Door Thickness
  1 3/8" to 1 3/4" Thick
- Door Height
  84" Height
- Height Clearance
  Rough Opening Height from the finished floor to the top of the door frame should be 88 1/2"
- Width Clearance
  Two times door width plus 1"
- Door Thickness
  1 3/8" (Standard), 1 3/4" (9634 Adapter)
Compliance Details
- Compliance Details
  ANSI/BHMA A156.14, Grade 1 certified, ADA Compliant
- ANSI Designation
  D8671, D8701

Click to view and print Hager 9628 Sliding Door Series Product Specs.

Click to view and print Installation Guide for Hager 9628 Sliding Door Series, Pocket Door Applications.
