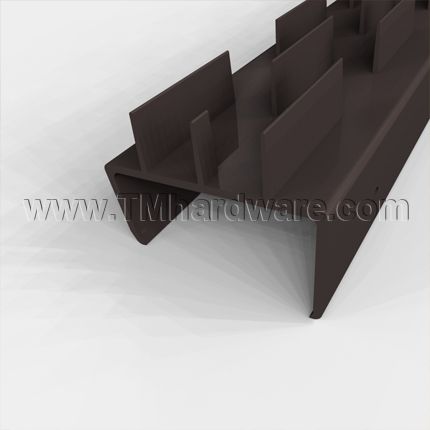

Pemko #2170 Door Shoe Sweep, U Shaped Vinyl with .56" Notched Triple Fin Seal
A Door Shoe is ideal for protecting the bottom of your door while providing a solid seal. This door shoe is compatible with 1.75" thick doors. It is a dual-durometer made entirely of vinyl and can be purchased with a notched or standard seal, see below for details. Available in two colors and in standard stock sizes.
PRICED PER PIECE - See full product details and specs in the tabs below
Door Shoe Sweeps can be applied to a door to prevent light, moisture, dust, drafts, air, sound, smoke and fire from infiltrating the gap under doors. The seal runs along the bottom of the door, rather than on the outside edge so installation may require removing the door. However, it creates a stronger and sturdier seal than a standard door bottom seal and is generally less visible.
Key features of the door shoe include:
Dual-Durometer Casing:Â A Dual Durometer fuses two materials of different physical properties into one uniform cross section and is commonly used to combine a rigid material for strength to a softer material, for a flexible function. In this case, the Door Shoe is made of heavy duty, thick PVC (Commonly known as Vinyl) which ensures a strong, stable product, while the fins are more flexible to allow for easy movement of the door.
Fins: Fins can be purchased notched or standard, select from options above. The seal can seal up to .56" and is very flexible to ensure great sealing properties with minimal closing force and to conform to surface irregularities. Vinyl retains its shape through temperatures above -4° up to 122° F.
Notched Seal:Â The notched seal has an alternating notched pattern allowing HVAC systems and bathroom fans to circulate under doors. It is ideal for hotels or applications where air circulation is required, while preserving privacy and blocking light and sound.
Door Shoe: Door Shoe is compatible with 1.75" doors and has minimal effect on the appearance of the door. The sides have a 1" height along the face of the door and .75" along the back. It protects the bottom of the door from damage, thereby extending the life of the door. Retainer is punched with elongated slots for easy adjustments once applied.
Installation guide and screws provided. Screws are colored to blend with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
 Click here to view our Full Warranty Policy.
To view an alternative to this product, see our Vinyl U-Shaped Door Shoe with 4Fin Seal.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN2170
- About this Product
-
Temperature Range-4°F up to +122°F
-
Door TypeMetal Door, Wooden Door
-
Seal TypeEco-Vinyl Rubber Seal
-
MountingDoor Shoe Mount
-
- Dimensions
-
Seal Height9/16" Height
-
Total Height1-9/16" Height
-
Additional DimensionsDoor seal is 1-3/4" thick
-
Length36" Length, 48" Length
-
Door Thickness1-3/4" Thick
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-
FinishDark Brown, White
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, Air Infiltration Rated, Sound Rated
-
Warranty5 Year Limited Warranty
-
